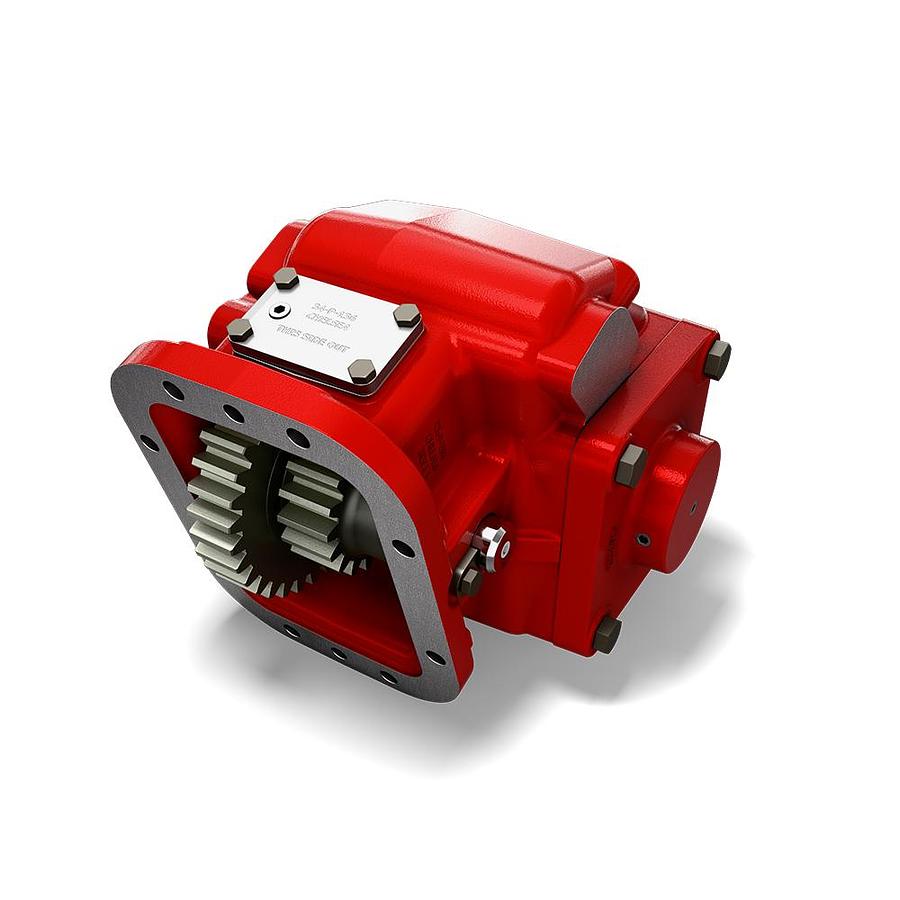

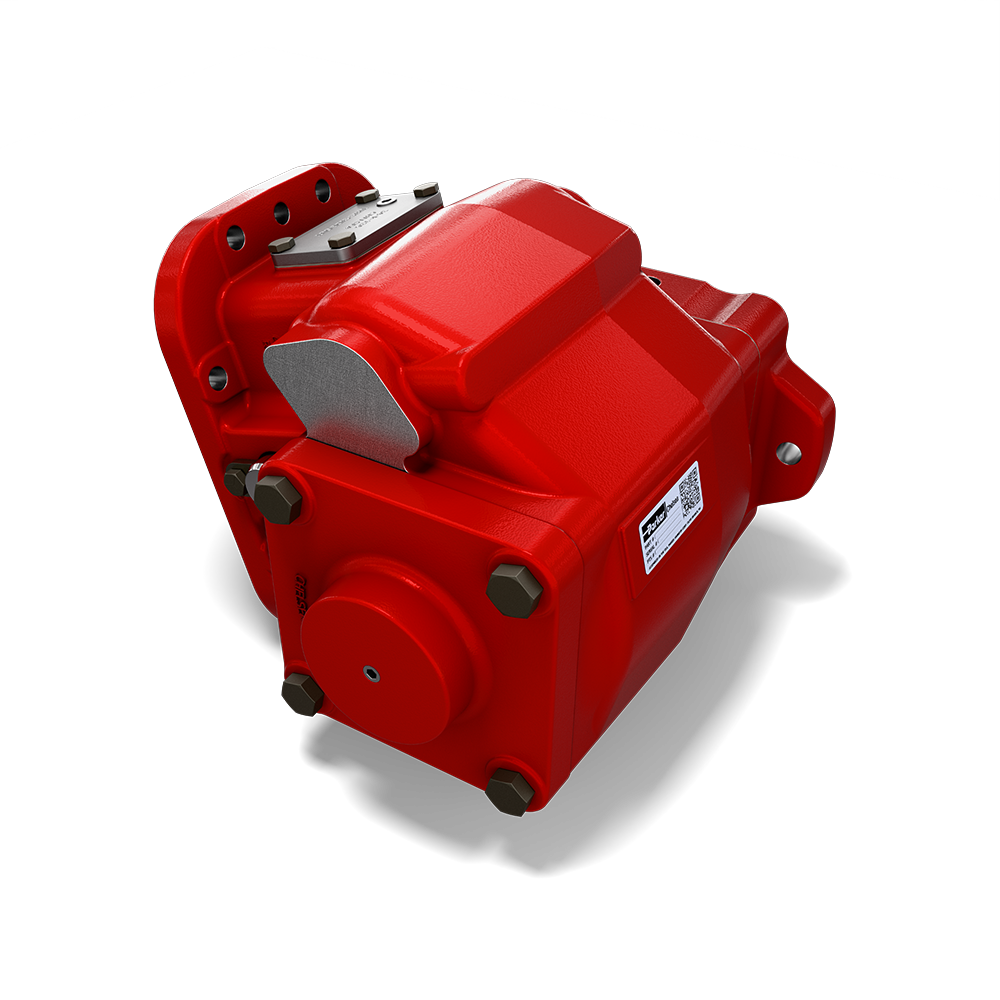

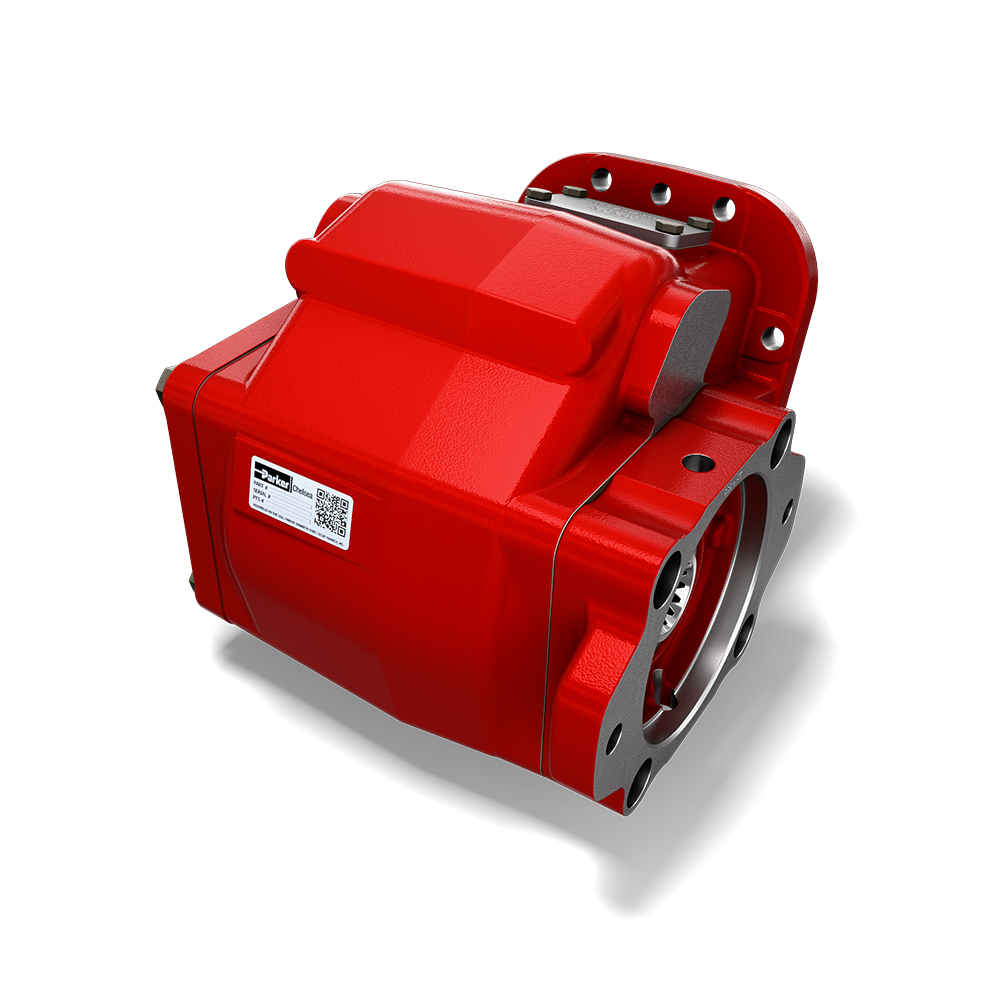

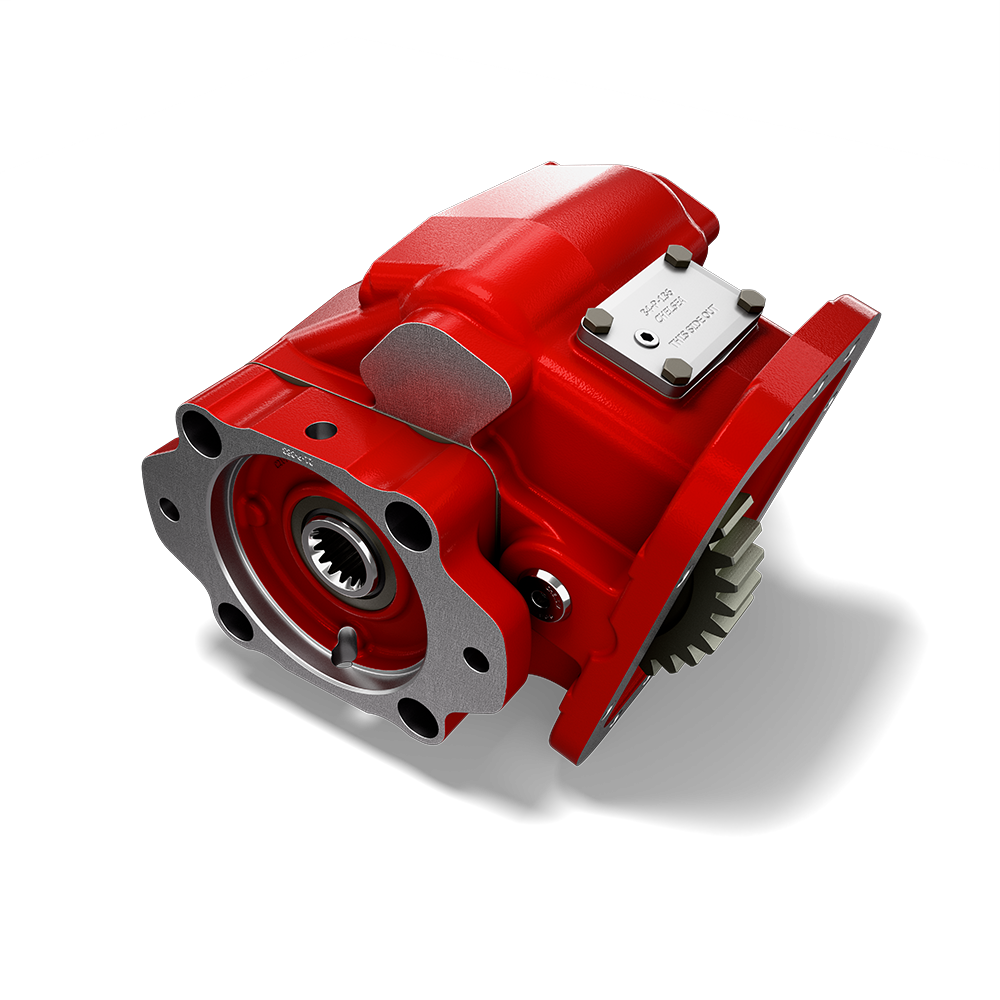

852 Series Power Take-Off
Description
The Chelsea 852 Series Power Take-Off (PTO) is another example of why Chelsea PTO technology is the best in the business. This 8-Bolt Hydraulic PowerShift is a workhorse of the Chelsea PTO line. It features a cast iron housing and heavy duty ball bearings on the output shaft, along with the large clutch pack to provide you with a torque rating up to 500 lbs-ft and a long service life in heavy duty applications. Three output options, three internal speed ratios and three shift options make this a versatile PTO. Take advantage of over 65 years of Chelsea PTO technology to increase performance and lower costs.
Markets:
• Oil & Gas
• Mobile
• Vocational & Municipal Equipment
Features/Benefits:
• Three speed ratios to choose from
• Pressure lubrication standard
• Designed for heavy duty applications
• Two Year Warranty
Applications:
• Oil Field Application
• Bulk Transporter Trucks
• Fire and Rescue
Markets:
• Oil & Gas
• Mobile
• Vocational & Municipal Equipment
Features/Benefits:
• Three speed ratios to choose from
• Pressure lubrication standard
• Designed for heavy duty applications
• Two Year Warranty
Applications:
• Oil Field Application
• Bulk Transporter Trucks
• Fire and Rescue
Specifications
| Manufacturer | Parker |
| Model | Off |
| Condition | New |
| Intermittent Torque | 401 to 500 lb-ft, 501+ Nm, 500 lb-ft (Check Application Pages for Actual Torque Ratings), 678 Nm (Check Application Pages for Actual Torque Ratings) |
| Continuous Operation | Yes with 30% de-rating |
| Shift Type | Hydraulic, PowerShift (Hydraulic) |
| Output Power | 56+ HP, 51+ kW |
| Output Type | SAE C Pump Flange, Driveline |
| Output Shaft Type | 1410 Series Companion Flange |
| Transmission Manufacturer | Allison |
| Lubricant | P = Pressure Lube |
| Mounting Type | 8-Bolt |
| Shaft Power | 48 HP (500 RPM), 95 HP (1000 RPM), 36 kW, (500 RPM) kW, 71 kW (1000 RPM) |
| Weight | 88 lb, 40 kg |
