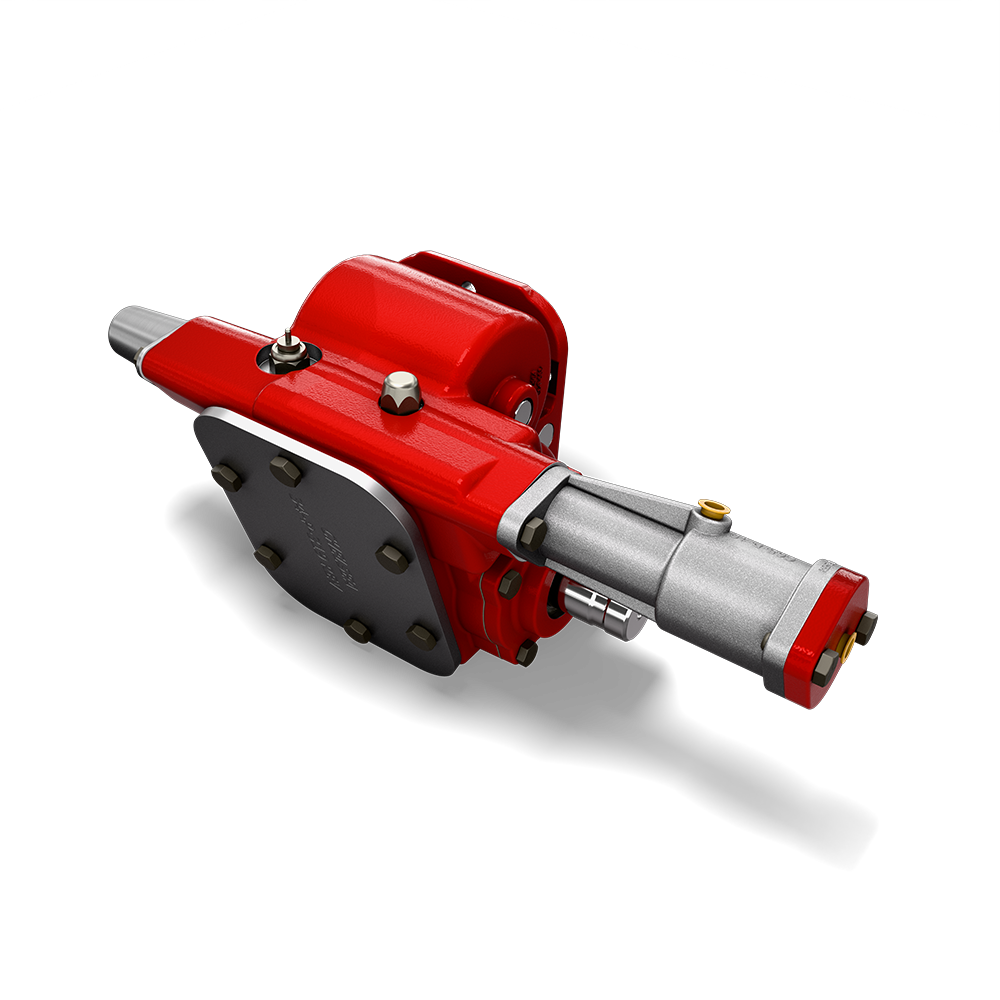

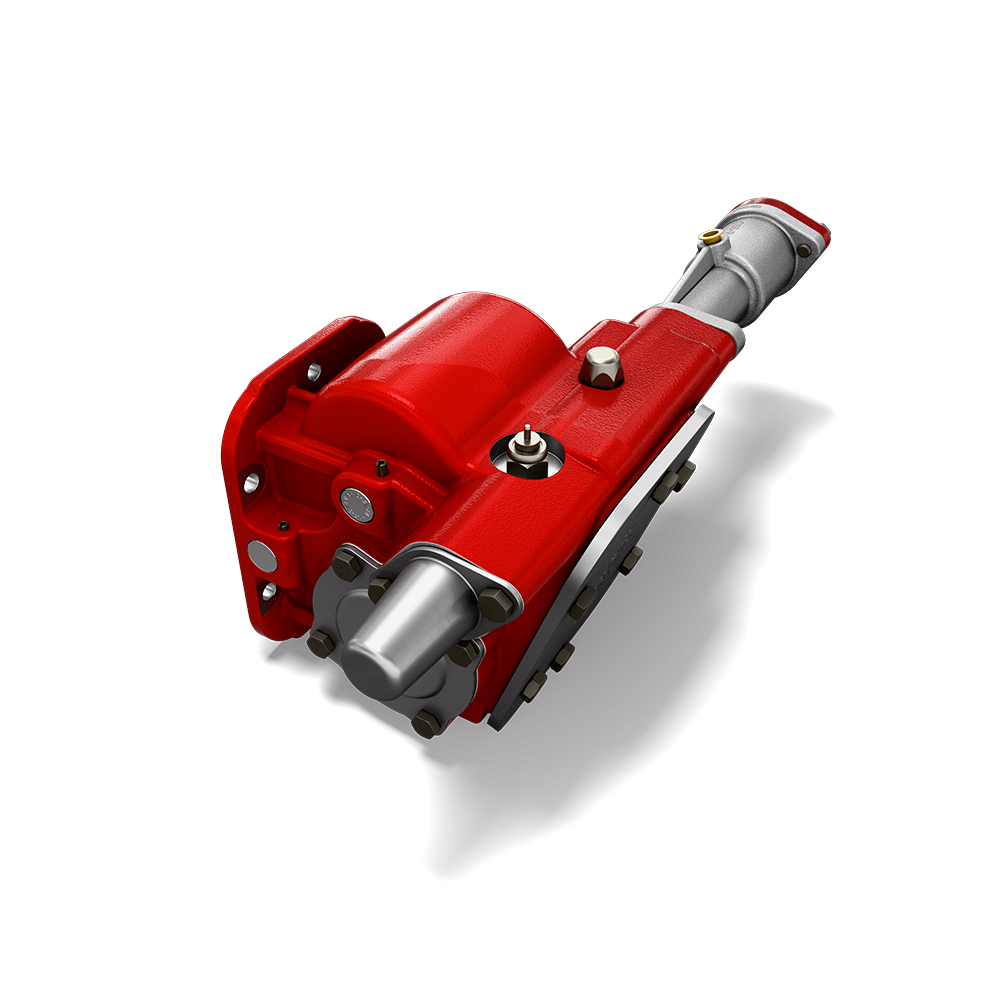

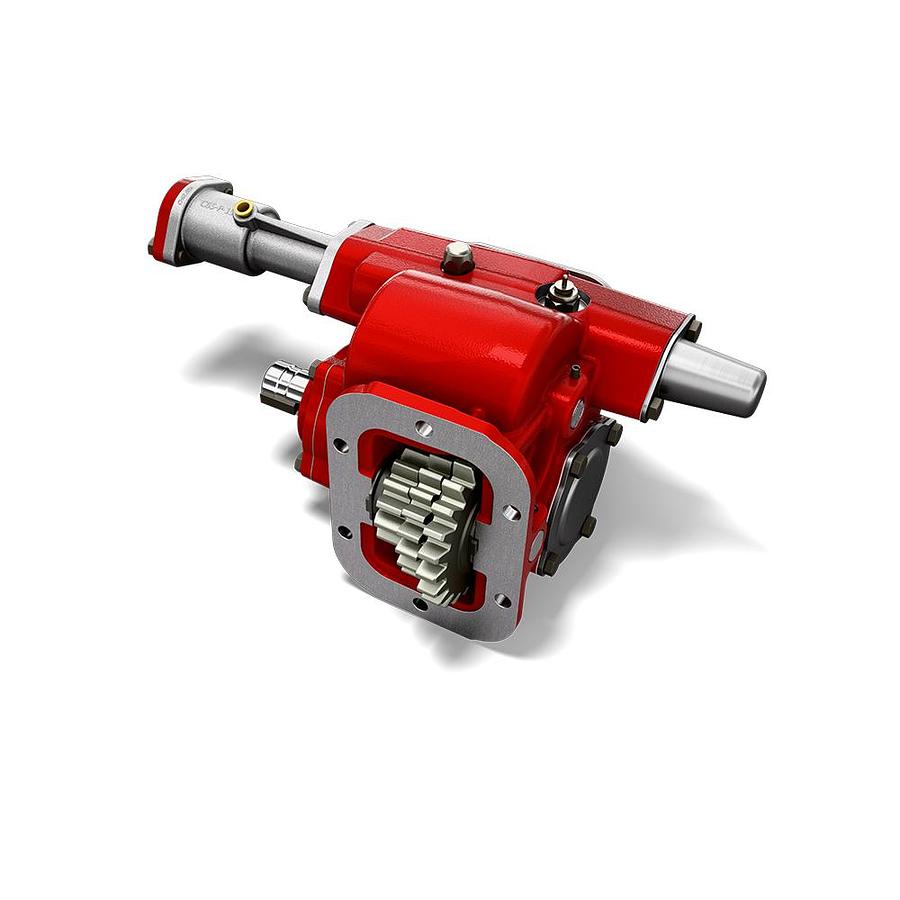

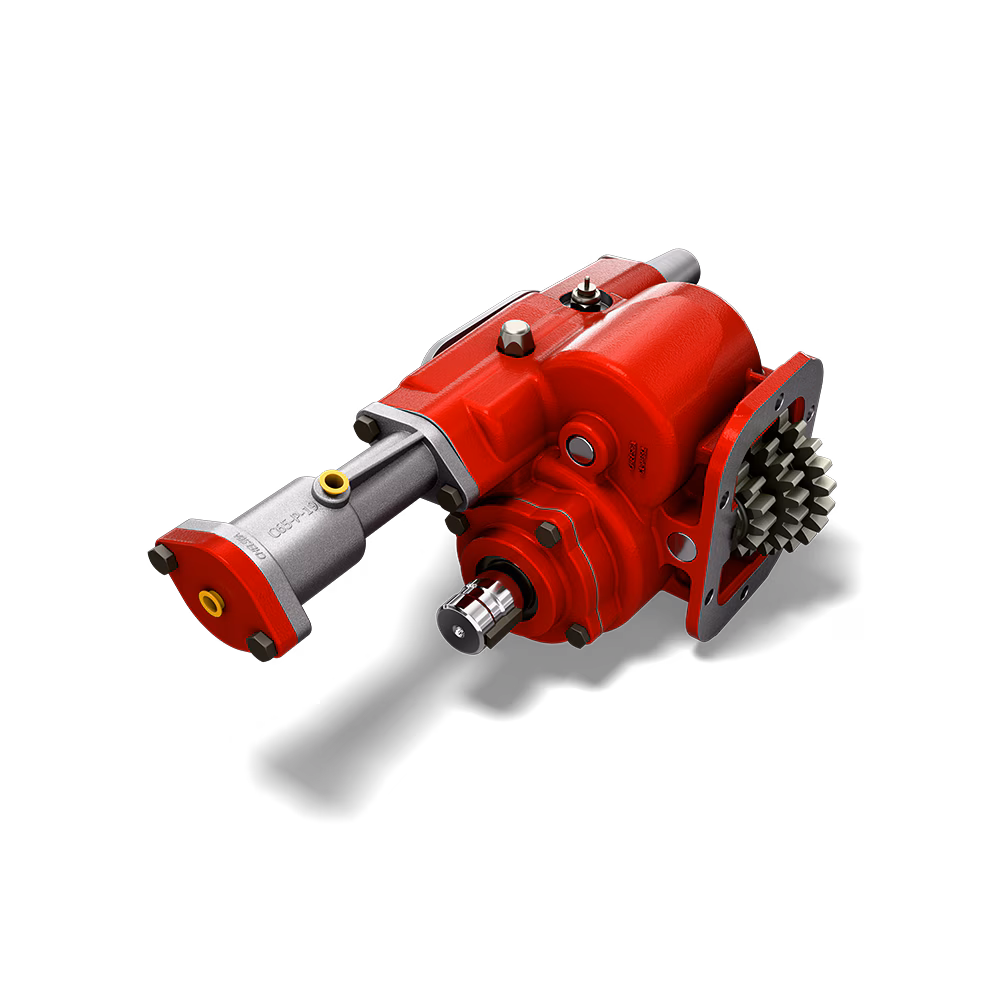

340 Series Power Take-Off
Description
The Chelsea 340 Series Power Take-Off (PTO) is designed for vocational truck applications requiring a PTO with forward and reverse capabilities. This economical workhorse features a cast iron housing and heavy duty ball bearing on the output shaft, giving it a higher torque rating and longer service life. Chelsea was the first to provide you with an air shifted forward and reverse PTO. Its flexible air shift design allows you to mount the air shift cylinder in the best position for maximum clearance. Torque rating up to 200 lbs-ft makes this one robust durable PTO.
Markets:
• Oil & Gas
• On Highway
• Other Mobile
Features/Benefits:
• Ball bearing output
• Removable cover plate for adjusting backlash
• Rugged cast iron housing
• Two Year Warranty
Applications:
• Oil Field
• Logging
Markets:
• Oil & Gas
• On Highway
• Other Mobile
Features/Benefits:
• Ball bearing output
• Removable cover plate for adjusting backlash
• Rugged cast iron housing
• Two Year Warranty
Applications:
• Oil Field
• Logging
Specifications
| Manufacturer | Parker |
| Model | Off |
| Condition | New |
| Output Type | Driveline |
| Continuous Operation | Yes with 30% de-rating |
| Mounting Type | Reversible, 6-Bolt |
| Intermittent Torque | 101 to 200 lb-ft, 201 to 300 Nm, 200 lb-ft (Check Application Pages for Actual Torque Ratings), 271 Nm (Check Application Pages for Actual Torque Ratings) |
| Lubricant | X = No Pressure Lube |
| Shift Type | Lever, Pneumatic, Mechanical |
| Transmission Manufacturer | Eaton/Fuller, Volvo/Mack, ZF, Other |
| Output Power | 36 to 45 HP, 21 to 30 kW |
| Output Shaft Type | Round Shaft (1-1/4" - 5/16" Key) |
| Shaft Power | 19 HP (500 RPM), 38 HP (1000 RPM), 14 kW (500 RPM), 28 kW (1000 RPM) |
| Weight | 32 lb, 15 kg |
