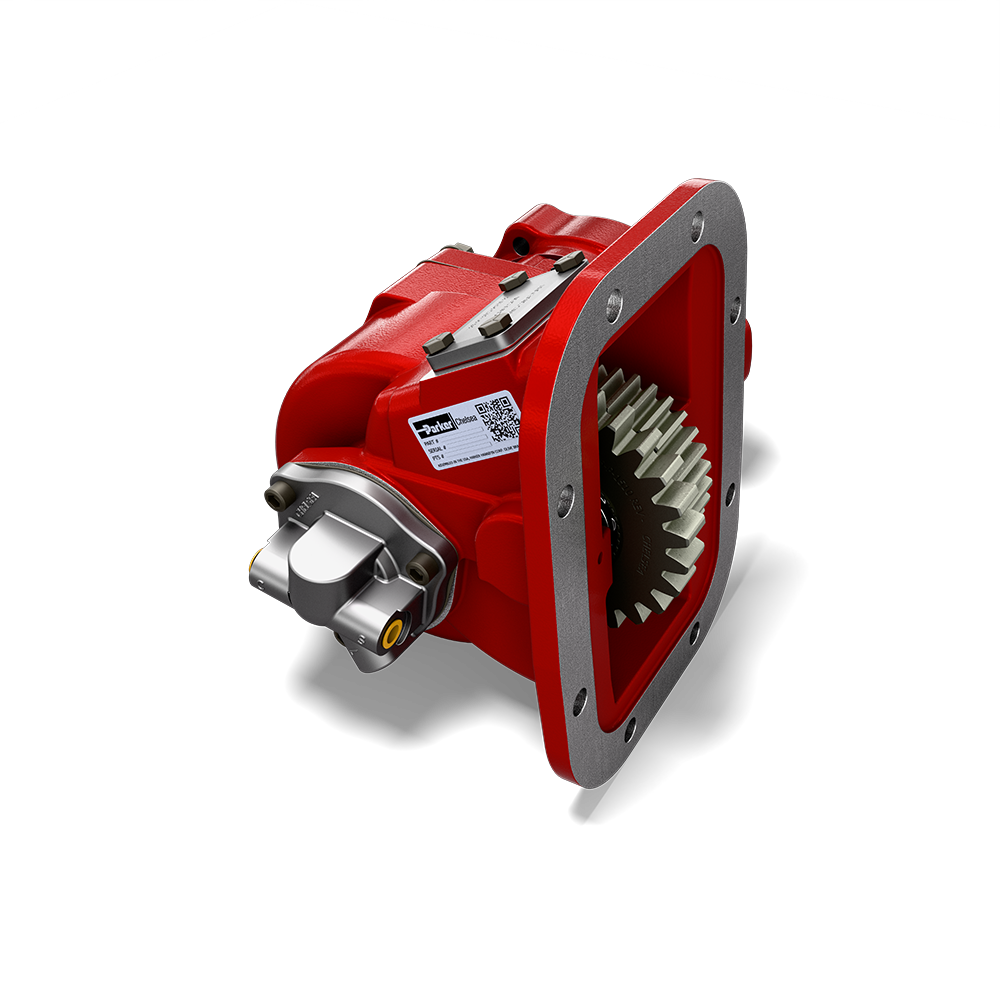

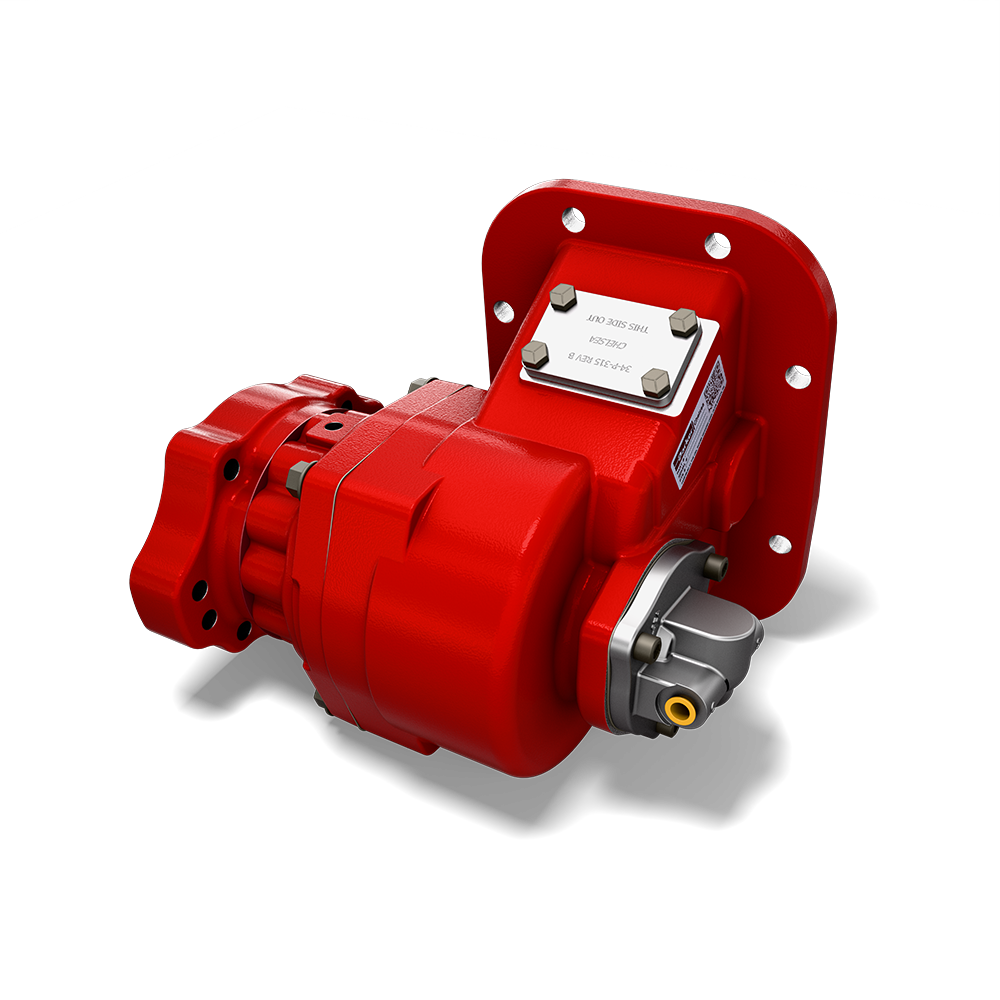

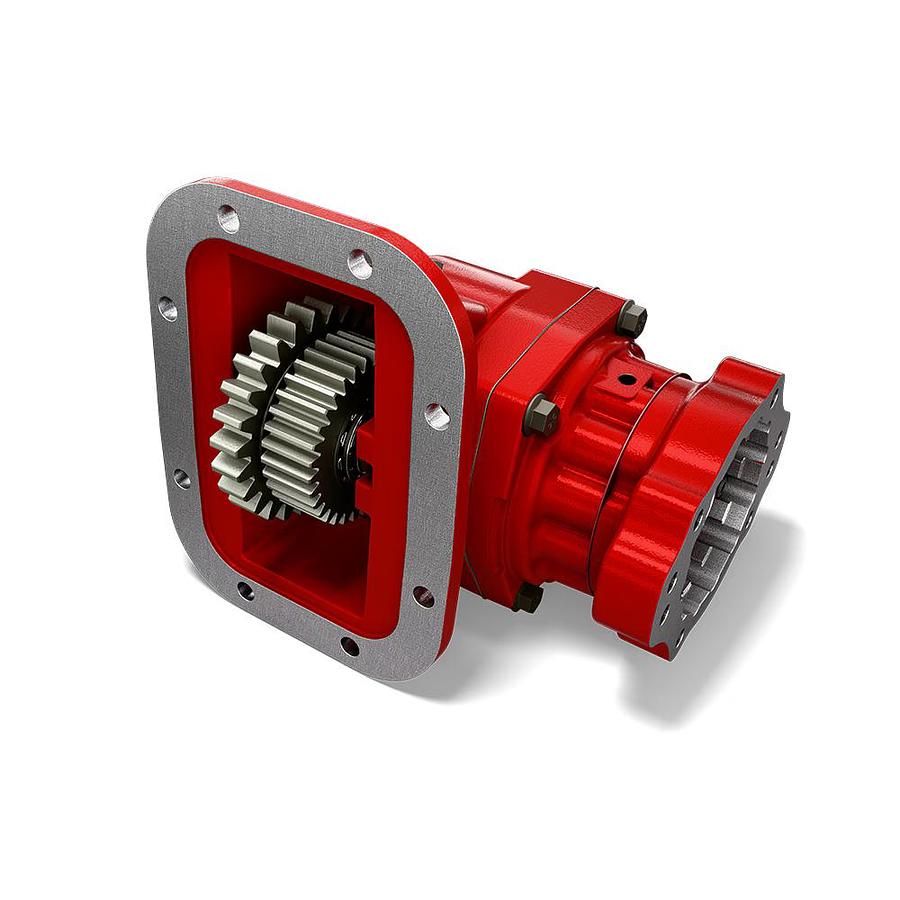

282 Series Power Take-Off
Description
The 282 Series is a part of the redesign of our medium duty hot shift PTOs that combines the 238 Series with the best components of our current PTOs. The moving parts have been upgraded to withstand up to 300 lbs-ft - intermittent or continuous. The 282 has (9) speed ratios, (18) shift options, and the most popular direct mount and driveshaft outputs. The direct mount options include Wet-Spline technology (optional) for longer PTO and pump shaft life, while the driveshaft outputs include a positive stop to prevent seal damage from driveshaft yokes. The 282 is the most robust medium-duty hot shift PTO on the market and it has raised the bar for PTOs that are used in the Fuel Oil, Towing & Recovery, Aerial, Construction Equipment, and Water Truck markets.
Markets:
• Aerial
• Construction Equipment
• Defense
• Material Handling
• Water Drilling
• Other Mobile
Features/Benefits:
• Air or Hydraulic Shift
• Integral Air Valve
• Rotatable Flanges
• Continuous-Duty Torque Rating
• Wet-Spline Option
• Smart Start Option for High-Torque Start-up
• Two Year Warranty
Applications:
• Aerial
• Construction Equipment
• Water Trucks
• Towing & Recovery
• Home Fuel Oil Delivery Trucks
Markets:
• Aerial
• Construction Equipment
• Defense
• Material Handling
• Water Drilling
• Other Mobile
Features/Benefits:
• Air or Hydraulic Shift
• Integral Air Valve
• Rotatable Flanges
• Continuous-Duty Torque Rating
• Wet-Spline Option
• Smart Start Option for High-Torque Start-up
• Two Year Warranty
Applications:
• Aerial
• Construction Equipment
• Water Trucks
• Towing & Recovery
• Home Fuel Oil Delivery Trucks
Specifications
| Manufacturer | Parker |
| Model | Off |
| Condition | New |
| Intermittent Torque | 201 to 300 lb-ft, 401 to 500 Nm |
| Output Shaft Type | Round Shaft (1-1/4" - 5/16" Key), Round Shaft (1" - 1/4" Key) |
| Shift Type | Pneumatic, PowerShift (Pneumatic/Hydraulic) |
| Output Power | 41 to 50 kW, 56+ HP |
| Mounting Type | 8-Bolt |
| Continuous Torque | De-Rate Torque Rating 30% (Check Application Pages for Actual Torque Ratings) |
| Shaft Power | 29 HP (500 RPM), 57 HP (1000 RPM), 21 kW (500 RPM), 43 kW (1000 RPM) |
| Weight | 49 lb, 22 kg |
| Lubricant | X = Standard Lube, P = Pressure Lube, W = Wet Spline |
