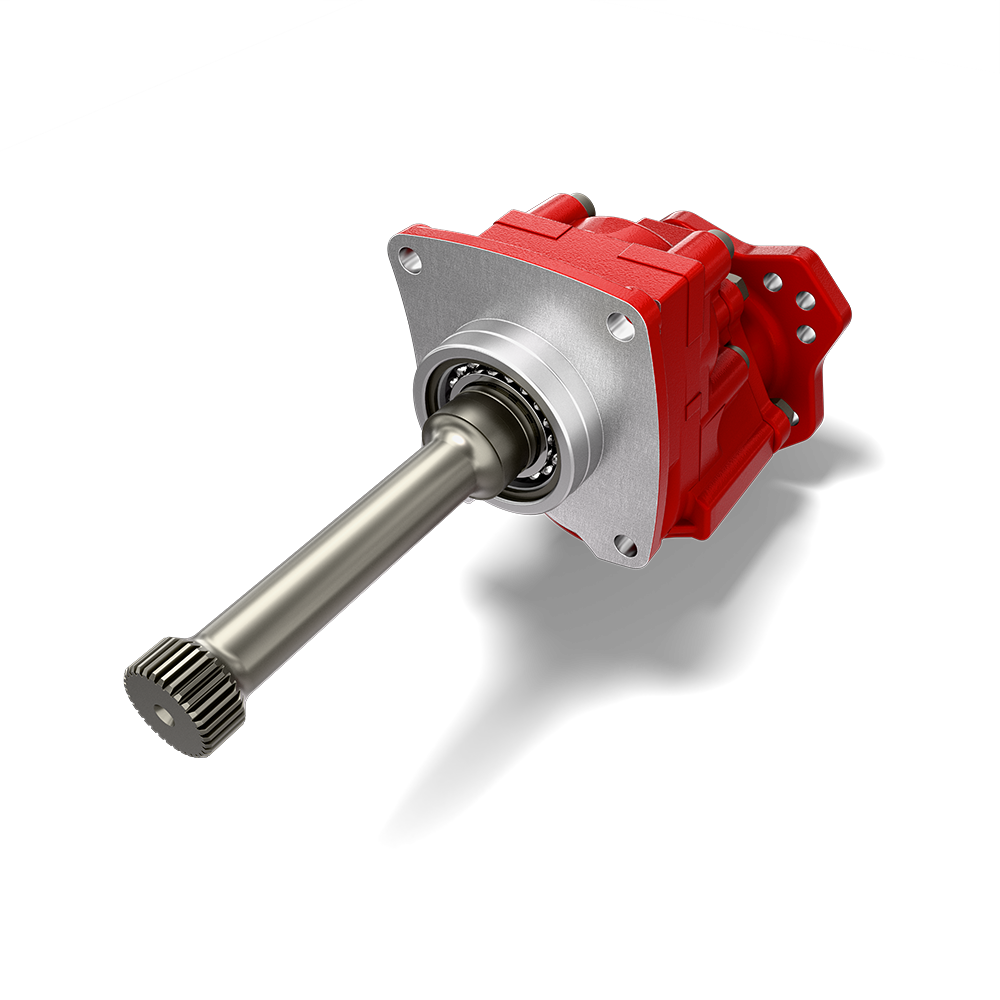

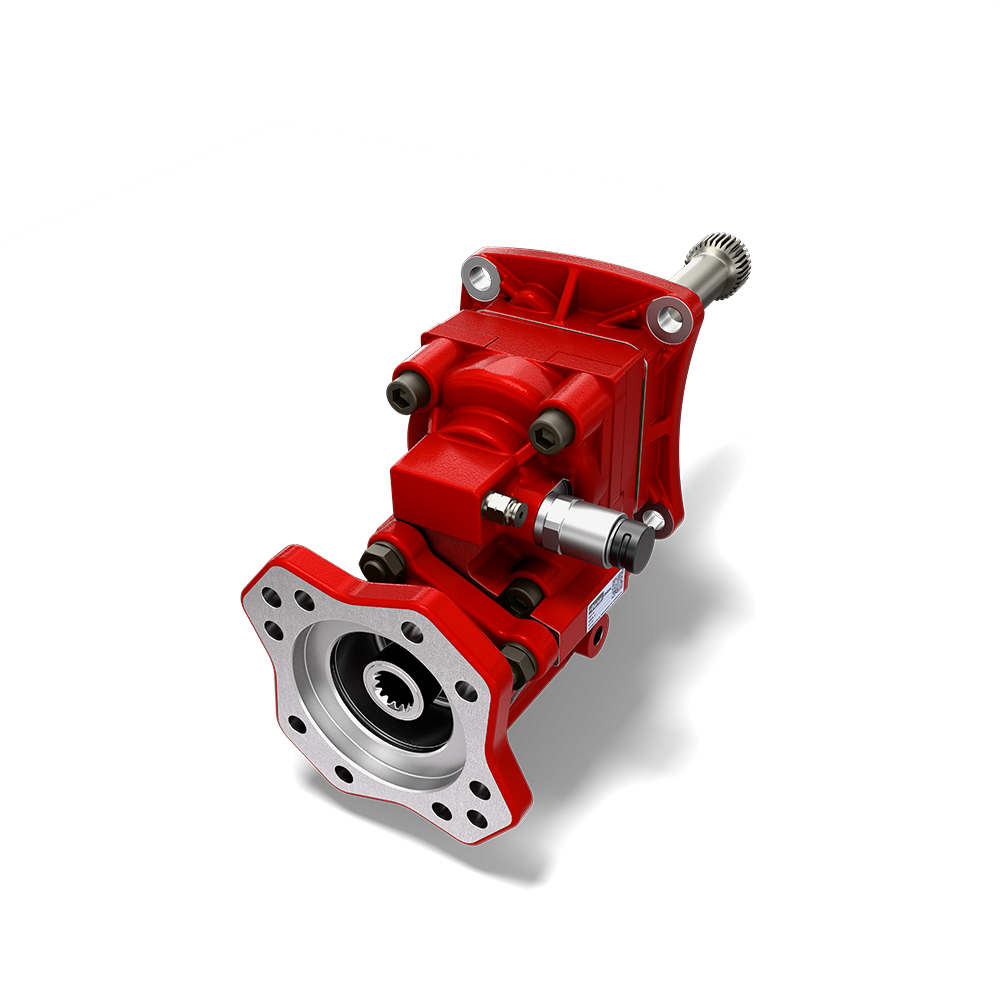

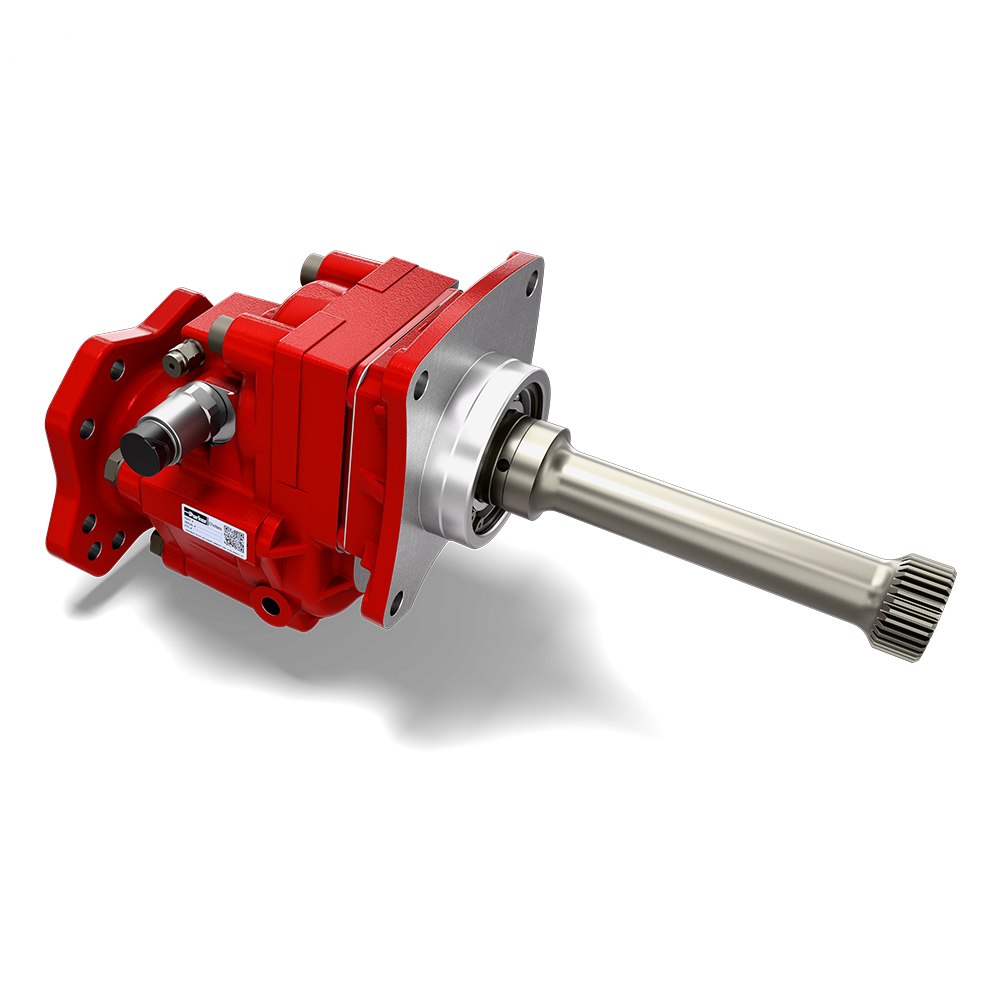

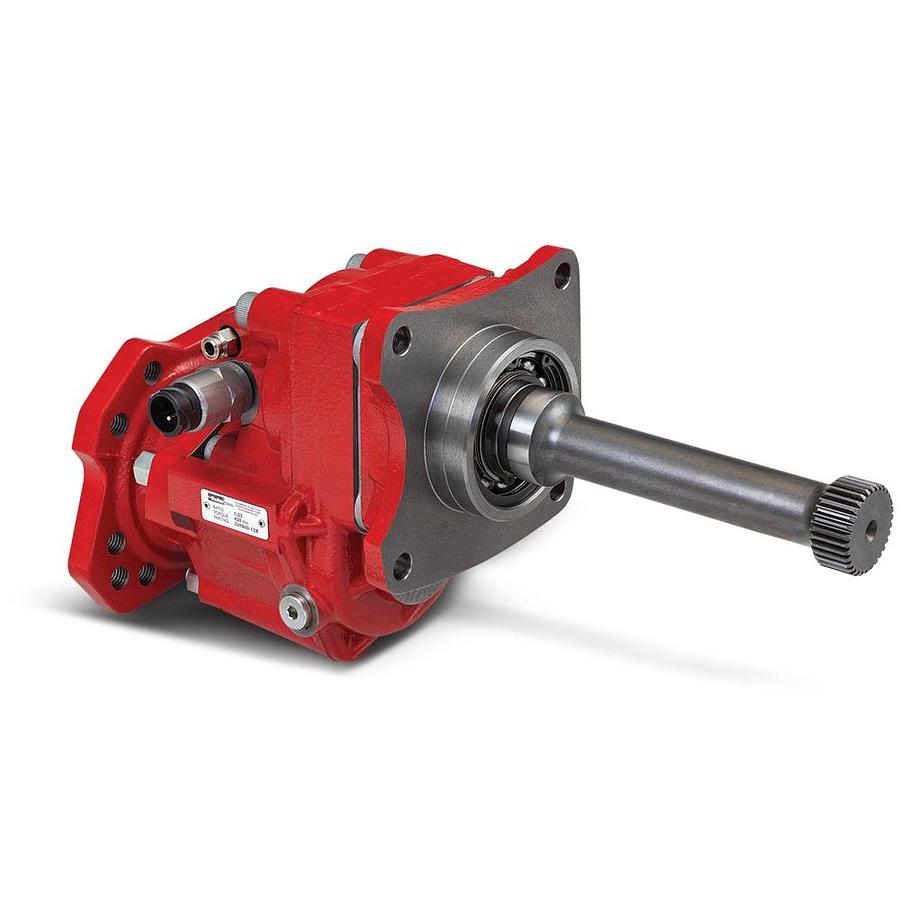

524 Series Power Take-Off
Description
Chelsea 524 Series Rear Mount Power Take-Off (PTO) two gear design provides a compact housing which helps eliminate clearance issues along with three speed ratios to meet your application requirements. The superior design of this PTO provides all the power you will need so there was no need to de-rate the PTO for continuous applications. This PTO features a quick assembly sealed bayonet connector for the indicator switch. Six shift options are integrated into the PTO housing for a space saving design as well two direct mount pump output flanges. Input adapters are available for ZF, Mack mDrive™, Volvo I-Shift, and Eaton Endurant transmissions. With versatility, power, ease of maintenance and installation made the 524 Series a great choice for your vocational truck requirement.
Markets:
• Aerial
• On-Highway
• Oil & Gas
• Other Mobile
Features/Benefits:
• Global Transmission Coverage
• High Capacity Bearings
• Ease of Installation
• Two Year Warranty
Applications:
• Fire
• Aerial
• Refuse
• Tippers
• Sewer and Sanitation
Markets:
• Aerial
• On-Highway
• Oil & Gas
• Other Mobile
Features/Benefits:
• Global Transmission Coverage
• High Capacity Bearings
• Ease of Installation
• Two Year Warranty
Applications:
• Fire
• Aerial
• Refuse
• Tippers
• Sewer and Sanitation
Specifications
| Manufacturer | Parker |
| Model | Off |
| Condition | New |
| Continuous Torque | De-Rate Torque Rating 30% (Check Application Pages for Actual Torque Ratings) |
| Intermittent Torque | 407 lb-ft (Check Application Pages for Actual Torque Ratings), 300 lb-ft (Check Application Pages for Actual Torque Ratings) |
| Output Power | 49 to 57 HP (at 100 RPM Output Shaft), 37 to 40 kW (at 100 RPM Output Shaft) |
| Output Shaft Type | DIN 5462, 4-Bolt DIN 5462 |
| Shift Type | Pneumatic |
| Mounting Type | Rear Mount |
| Weight | 22.3 lb, 10.1 kg |
| Product Series | 524 |
| Mounting Option | X = ISO 7653 80mm x 80mm Mount |
| Lubricant | X = Dry Spline |
