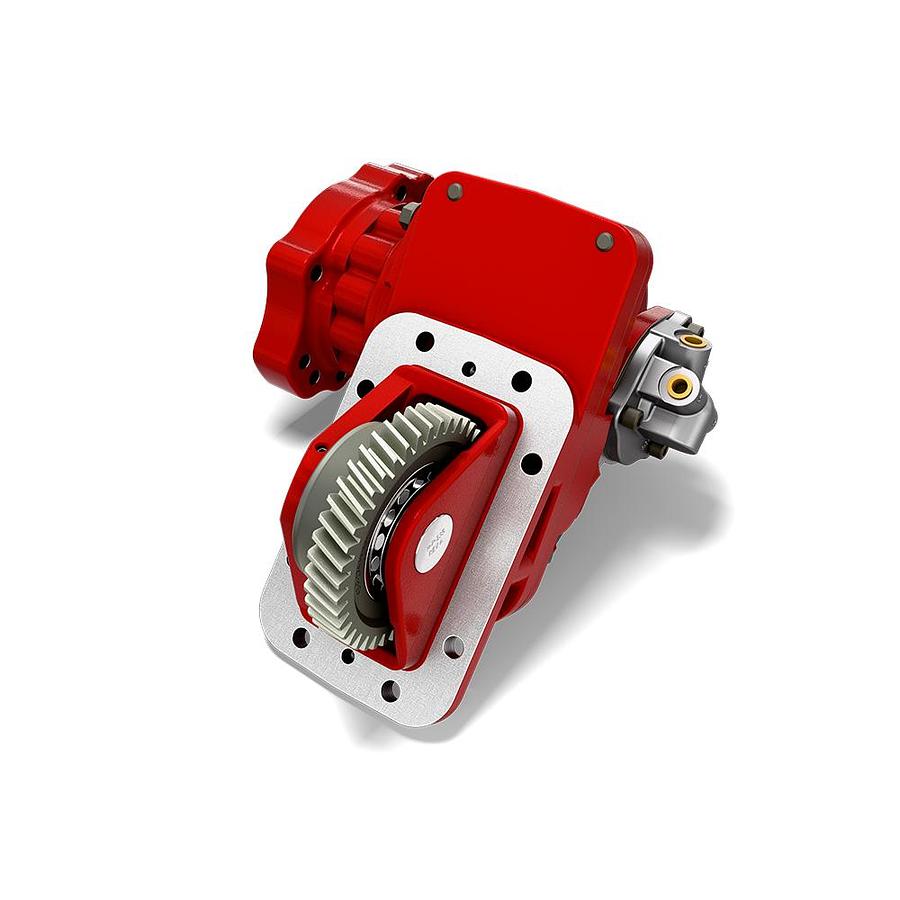

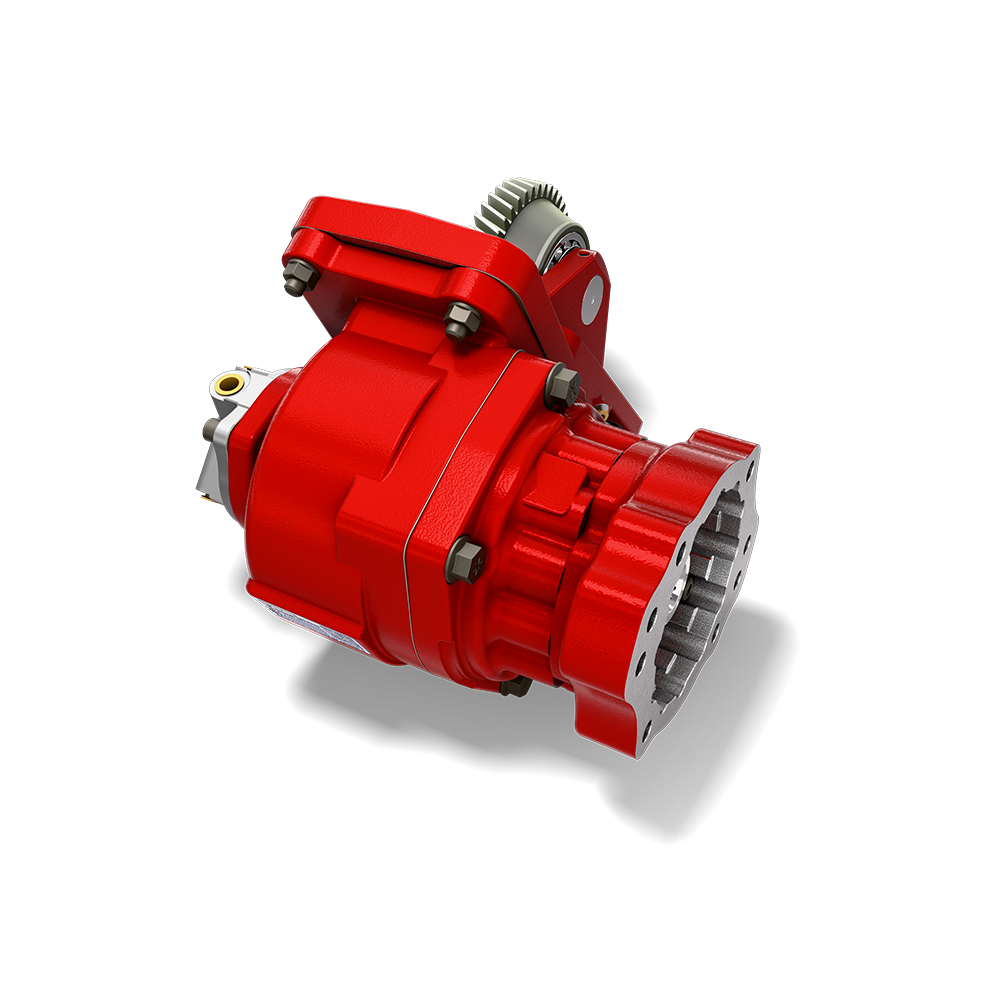

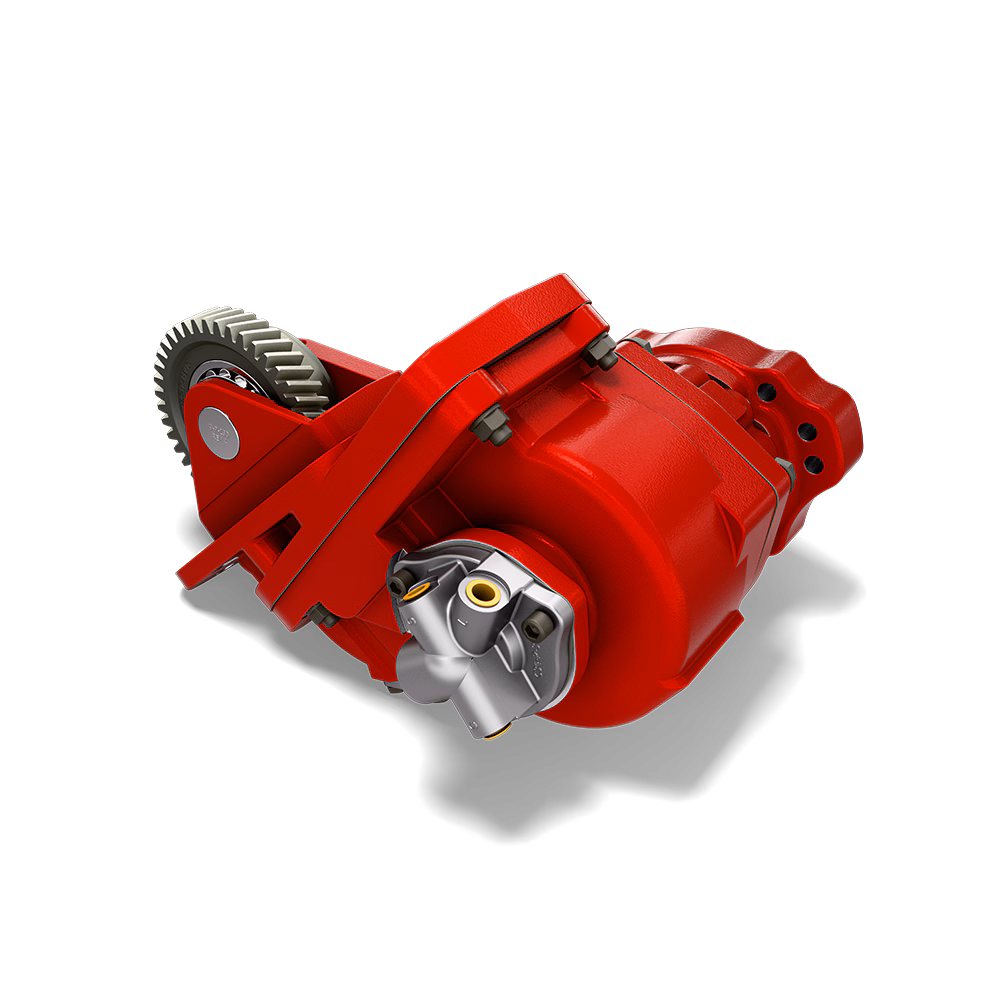

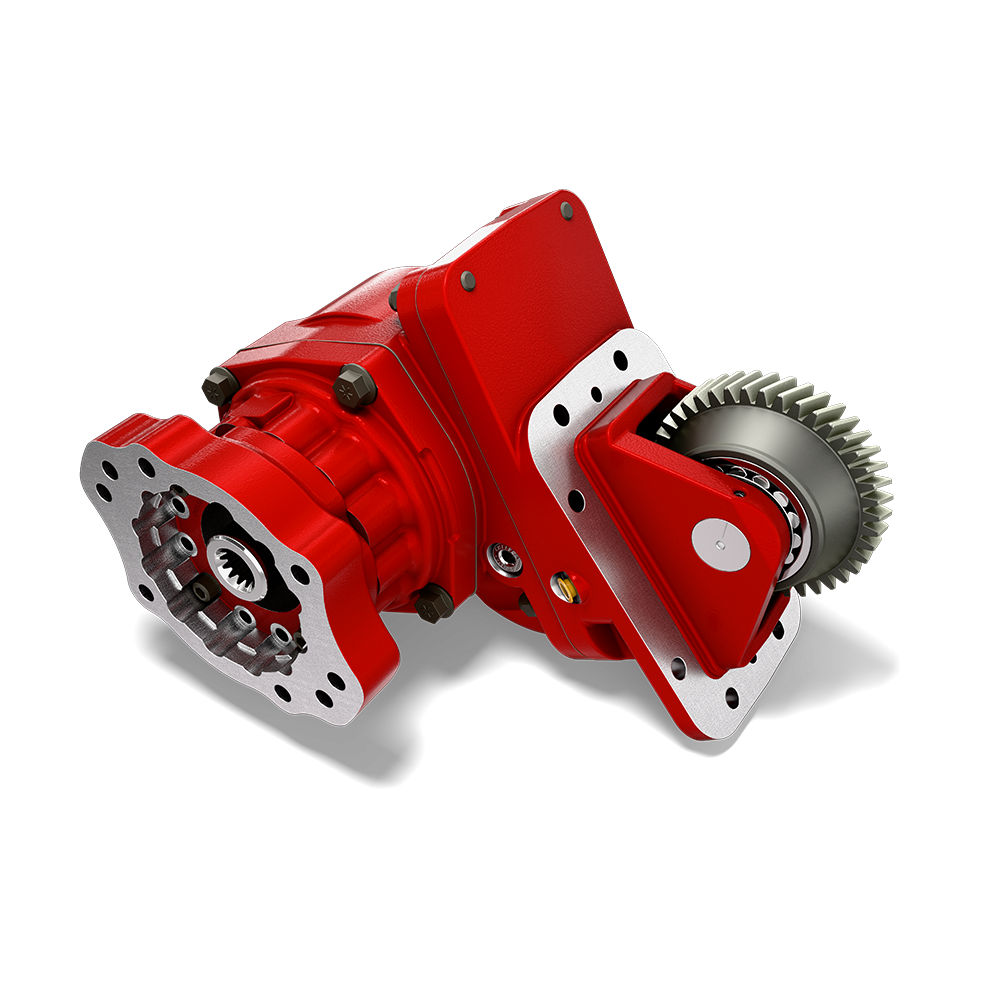

272U Series Power Take-Off
Description
Parker Chelsea is pleased to announce the 272U Series for the PACCAR TX-8 transmission. Chelsea’s 272U Series PTO is a unique version of the 272 Series PTO which meets PACCAR’s envelope requirements and includes a TX-8 specific input adapter assembly (available as a “U” mount code). The 272U has multiple speed ratios ranging from 70% to 150% of engine along with multiple pump mount options. With torque ratings up to 258 lb-ft, the 272U PTO is a great PTO for any dump, crane, and pump applications on any PTO prepped PACCAR TX-8 Transmission.
Markets:
• Aerial
• Towing and Recovery
• Material Handling
Feature/Benefits
• Speed ratios ranging from 70% to 150%
• Torque ratings up to 258 lb-ft
• Extremely durable, rugged cast-iron housing
• SAE A, B, BB, and C plus ISO direct pump mount options
• Electric over Air (EOA) shift available now, other shift options coming soon
• Driveline Outputs coming soon
Applications
• Aerial Trucks
• Tow and Recovery Trucks
• Material Lift Trucks
• Service Body Trucks
Markets:
• Aerial
• Towing and Recovery
• Material Handling
Feature/Benefits
• Speed ratios ranging from 70% to 150%
• Torque ratings up to 258 lb-ft
• Extremely durable, rugged cast-iron housing
• SAE A, B, BB, and C plus ISO direct pump mount options
• Electric over Air (EOA) shift available now, other shift options coming soon
• Driveline Outputs coming soon
Applications
• Aerial Trucks
• Tow and Recovery Trucks
• Material Lift Trucks
• Service Body Trucks
Specifications
| Manufacturer | Parker |
| Model | Off |
| Condition | New |
| Continuous Torque | 258 lb-ft |
| Intermittent Torque | 301 to 300 lb-ft, 401 to 500 Nm |
| Shift Type | Pneumatic |
| Outlet Flange Type | SAE B, SAE A |
| Output Shaft Type | SAE C (1-1/4" - 14T) Pump Spline, SAE B (7/8" - 13T) Pump Spline, SAE BB (1" - 15T) Pump Spline, DIN 5462 |
| Mounting Type | 6-Bolt |
| Lubricant | Pressure Lube |
