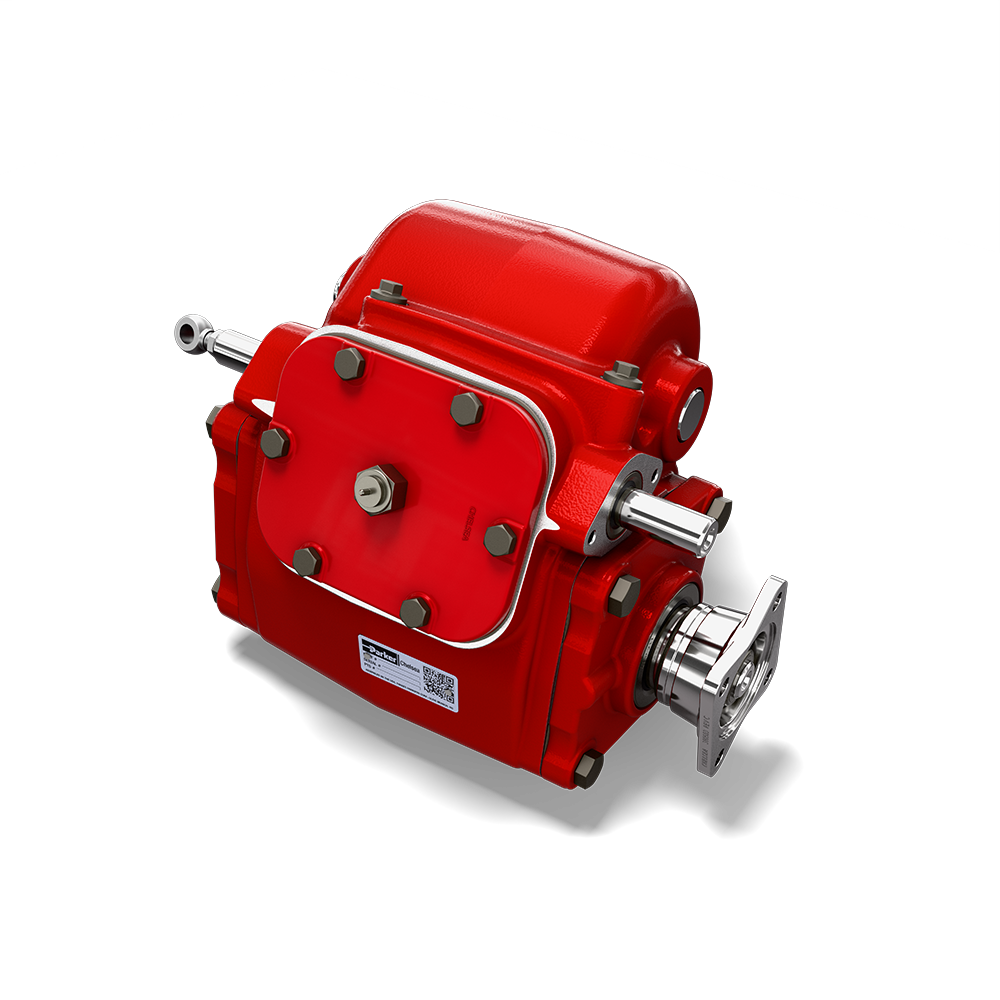

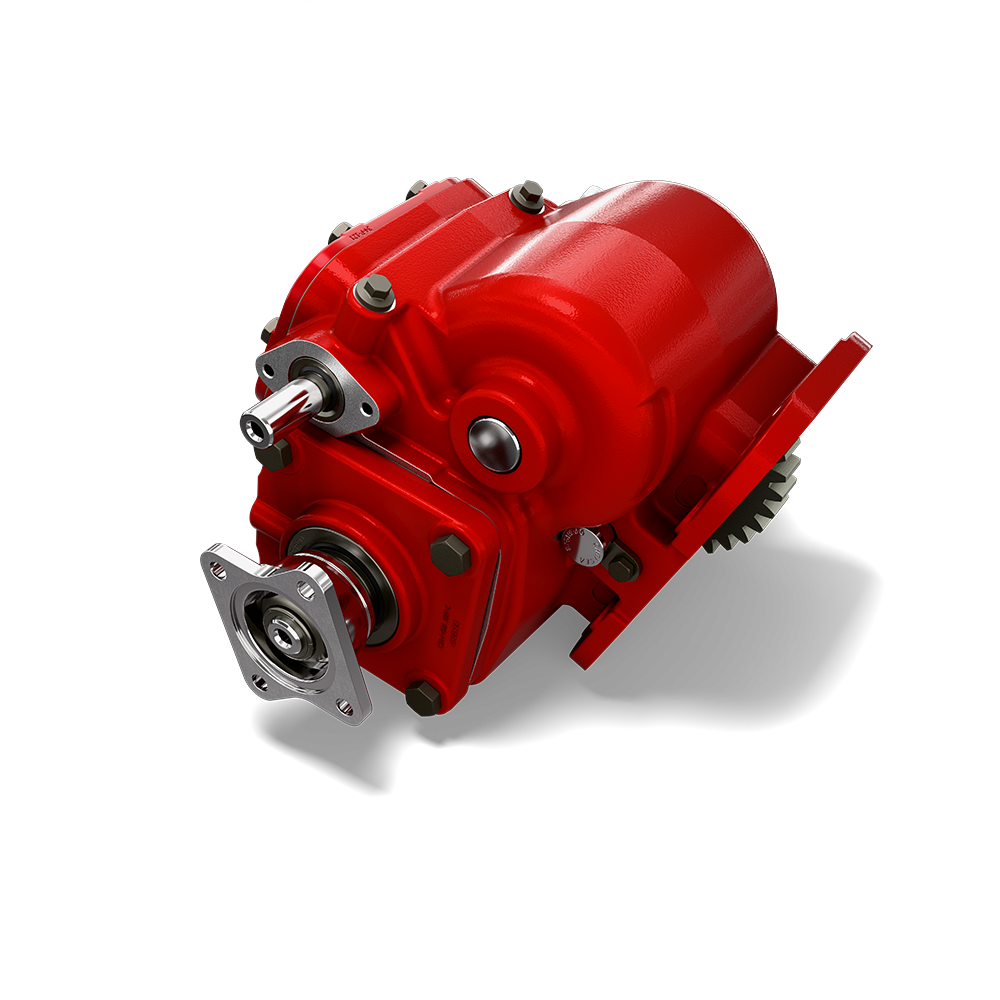

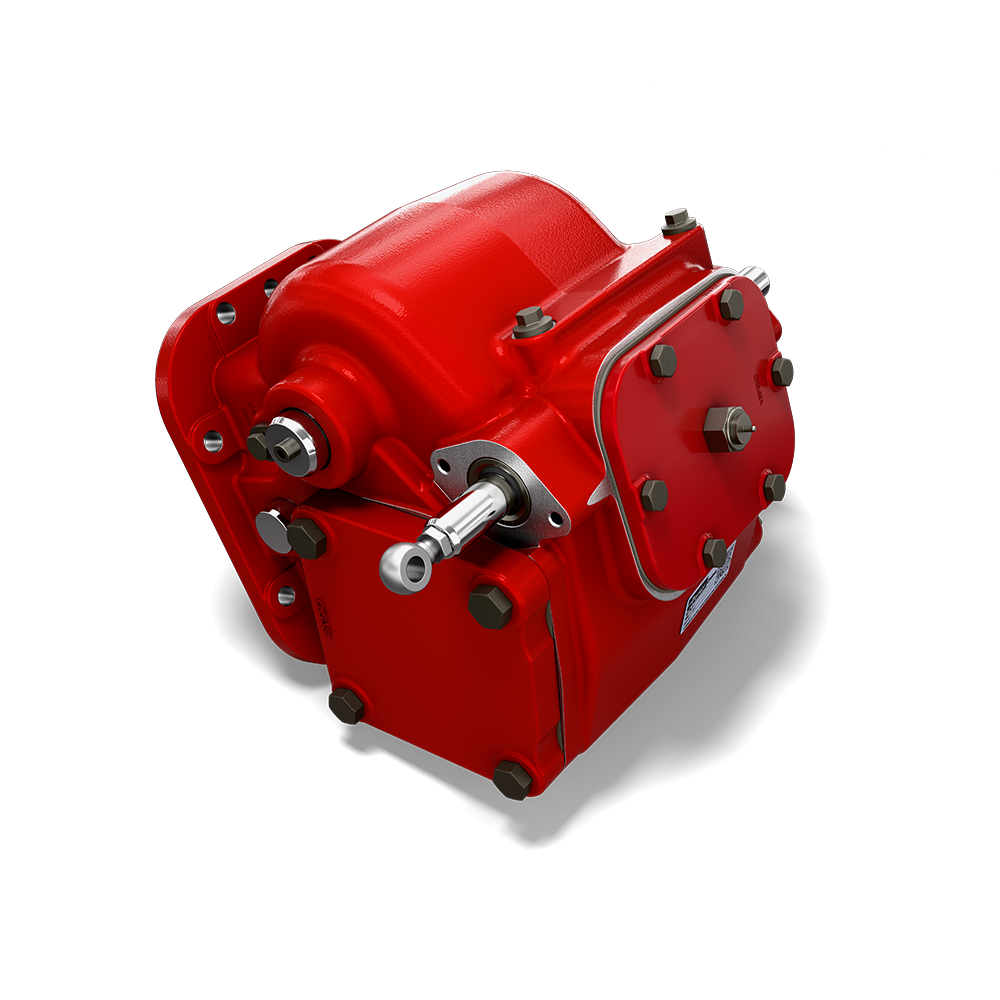

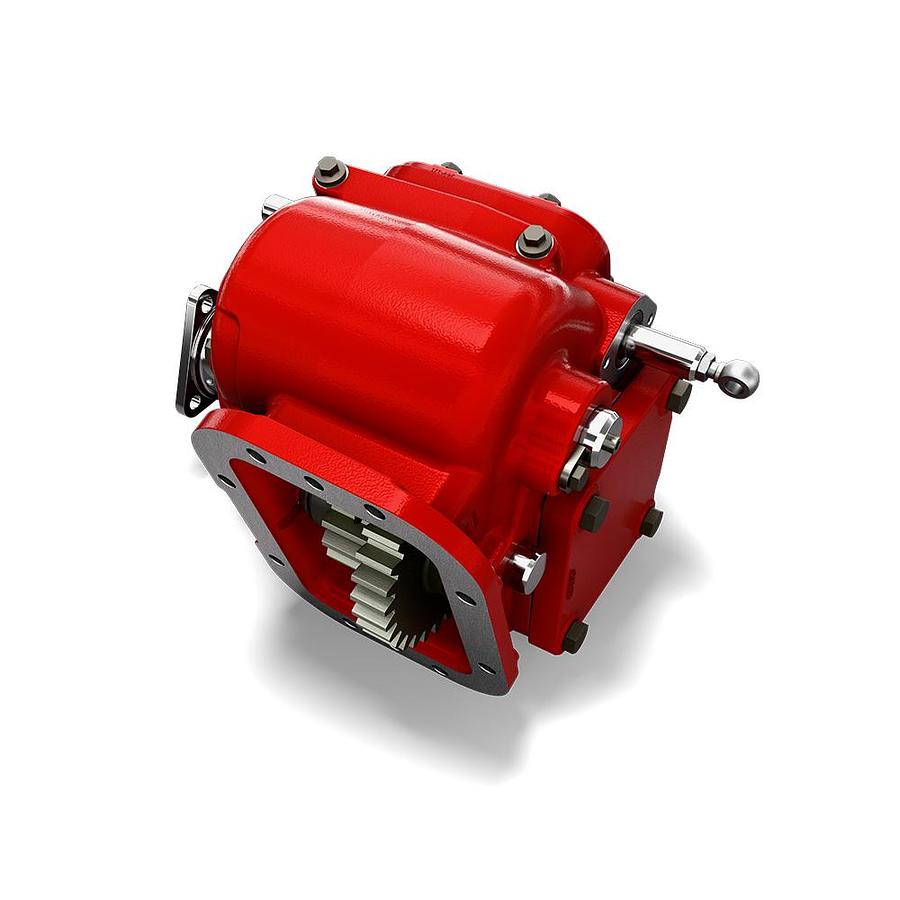

863 Series Power Take-Off
Description
Chelsea 863 Series Power Take-Off (PTO) is an example of Chelsea PTO technology solving application requirements for a heavy duty forward and reverse PTO. This rugged workhorse features cast iron housing and heavy duty ball bearings on the output shaft, giving it a high torque rating and long service life. Standard output is 1-1/2” – 10T shaft with a 1410 companion flange. It has a torque ratings up to 500 lbs-ft and is ideal for heavy duty mechanical winch applications. Take advantage of Chelsea PTO technology to increase performance and lower costs for all your application requirements.
Markets:
• Oil & Gas
• Mobile
• Forestry Equipment
Features/Benefits:
• Large coverage for transmissions with 8-Bolt openings
• Lever Shift
• Designed for maximum duty reversible applications
• Two Year Warranty
Applications:
• Oil Field
• Logging
Markets:
• Oil & Gas
• Mobile
• Forestry Equipment
Features/Benefits:
• Large coverage for transmissions with 8-Bolt openings
• Lever Shift
• Designed for maximum duty reversible applications
• Two Year Warranty
Applications:
• Oil Field
• Logging
Specifications
| Manufacturer | Parker |
| Model | Off |
| Condition | New |
| Output Type | Driveline |
| Intermittent Torque | 401 to 500 lb-ft, 501+ Nm, 500 lb-ft (Check Application Pages for Actual Torque Ratings), 678 Nm (Check Application Pages for Actual Torque Ratings) |
| Continuous Operation | Yes with 30% de-rating |
| Output Shaft Type | 1410 Series Companion Flange |
| Transmission Manufacturer | Allison, Eaton/Fuller, Volvo/Mack, Other |
| Shift Type | Lever, Mechanical |
| Lubricant | P = Pressure Lube, X = No Pressure Lube |
| Mounting Type | Reversible, 8-Bolt |
| Output Power | 56+ HP, 51+ kW |
| Shaft Power | 48 HP (500 RPM), 95 HP (1000 RPM), 36 kW, (500 RPM) kW, 71 kW (1000 RPM) |
| Weight | 96 lb, 44 kg |
