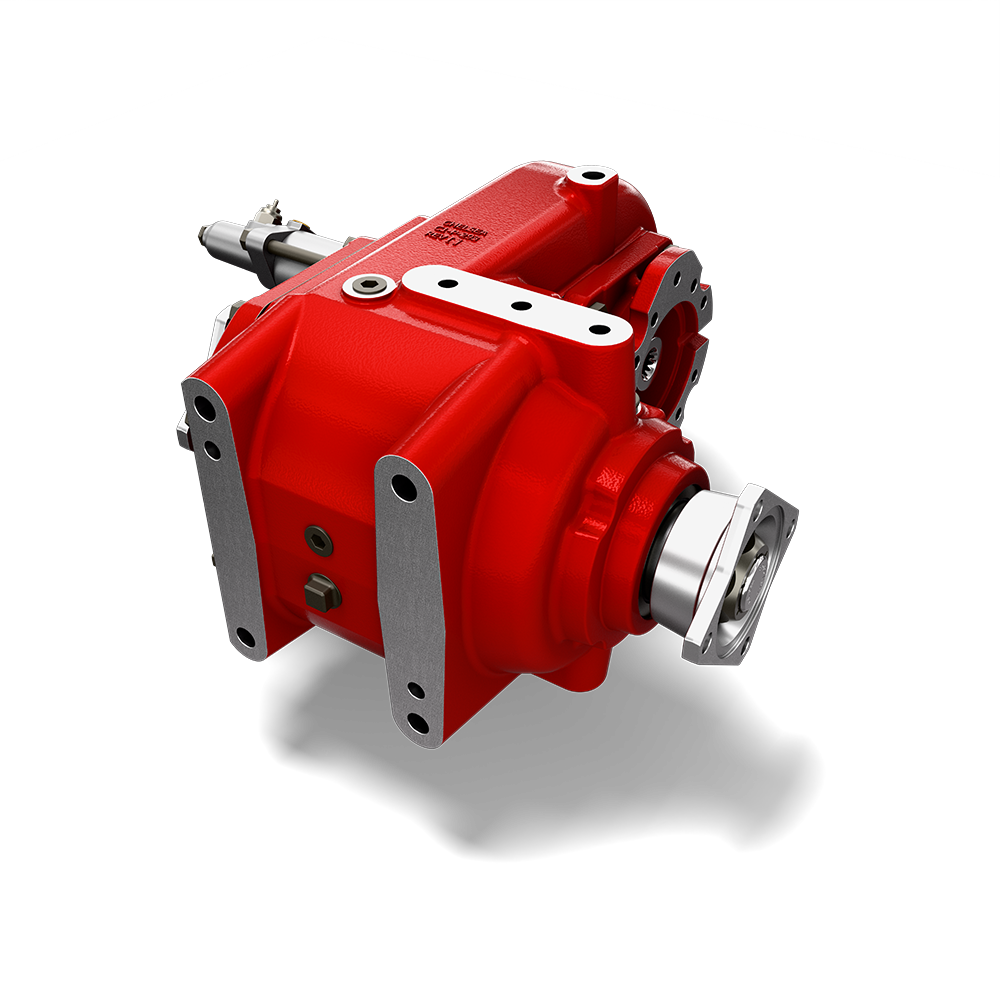

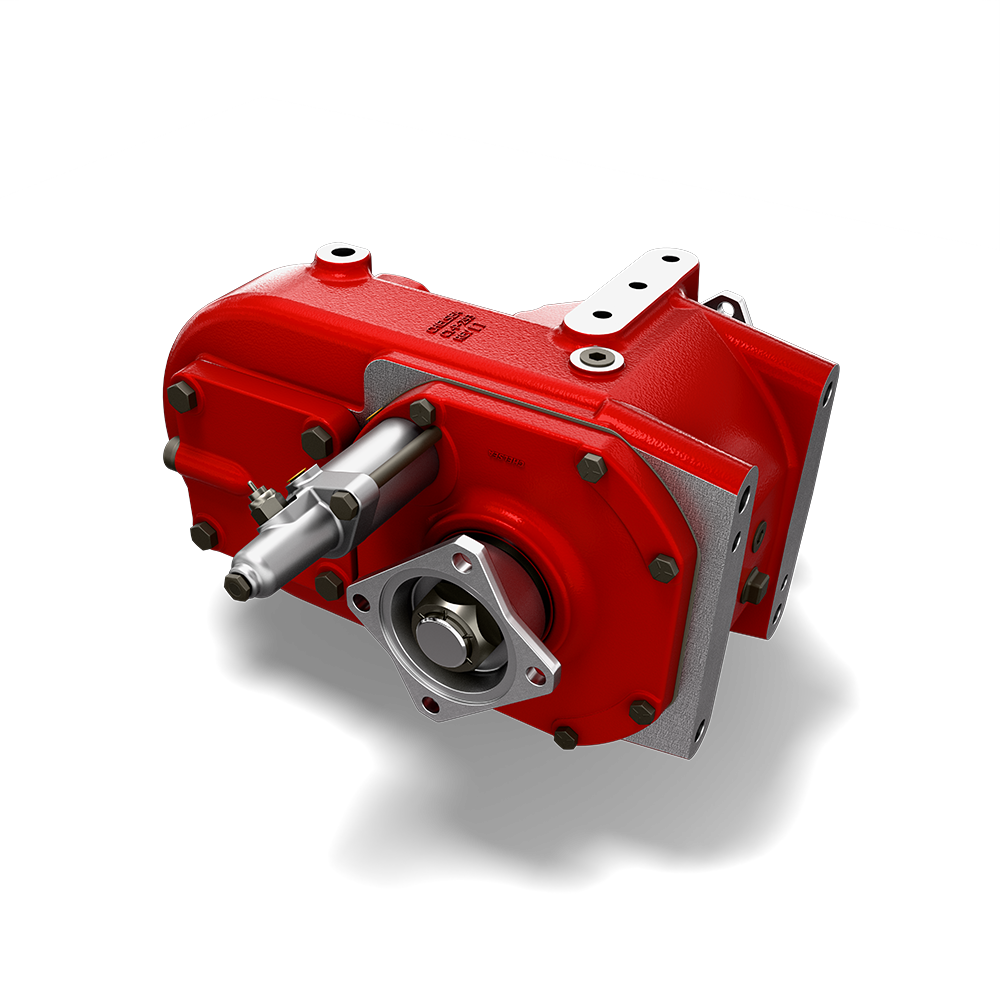

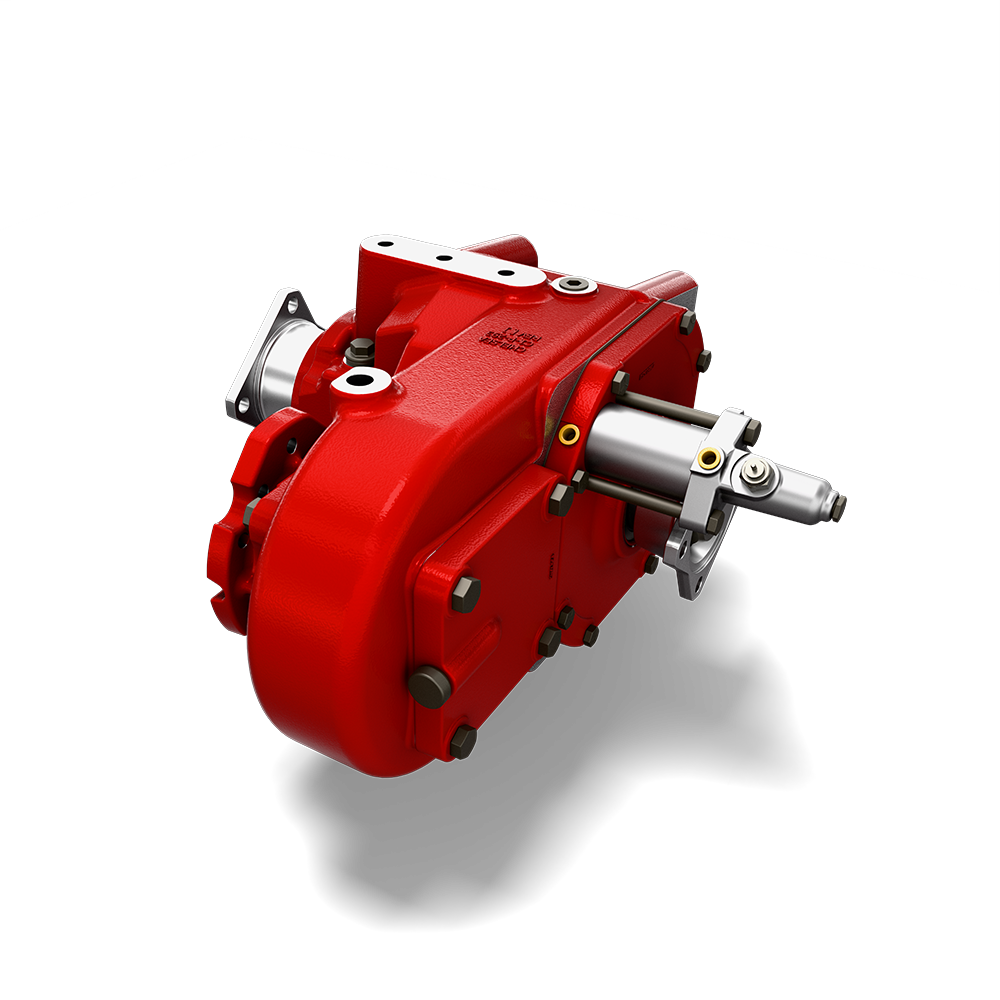

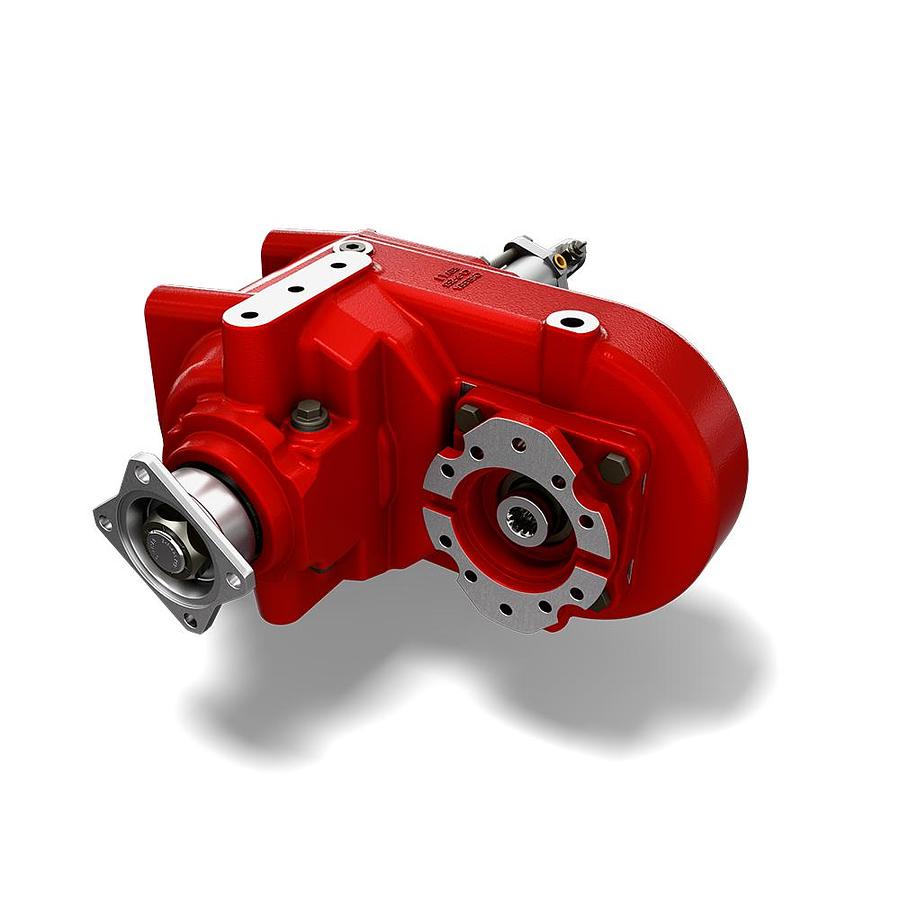

901 Series Split Shaft Power Take-Off

The 901 Series Split Shaft gear box is designed specifically for the Class 4 through 6 trucks with automatic transmissions and one or no PTO openings on the transmission. This is a robust unit with one PTO output shaft capable of 500 lbs-ft. The 901 features four PTO output options, a 1410 Series companion flange comes standard and optional pump flanges SAE “B” 2 or 4-Bolt, “C” 2-Bolt and “C” 4-Bolt openings allowing a variety of driven equipment to be mounted. The output shaft runs at 100% of input speed. This unit is an excellent choice when you need to operate more than one piece of driven equipment. It is air shifted, and comes standard with a 1-3/4" - 10T input /output shaft.

Markets:
• On Highway
• Mobile
• Other Mobile

Features/Benefits:
• Provides 100% of input speed
• Mount in any orientation with the PTO shaft going to the front or rear of the vehicle
• Air shift, along with three direct mount flanges
• Two Year Warranty

Applications:
• Pumper Cleaner
• Fire and Rescue
• Tire Service Vehicles
