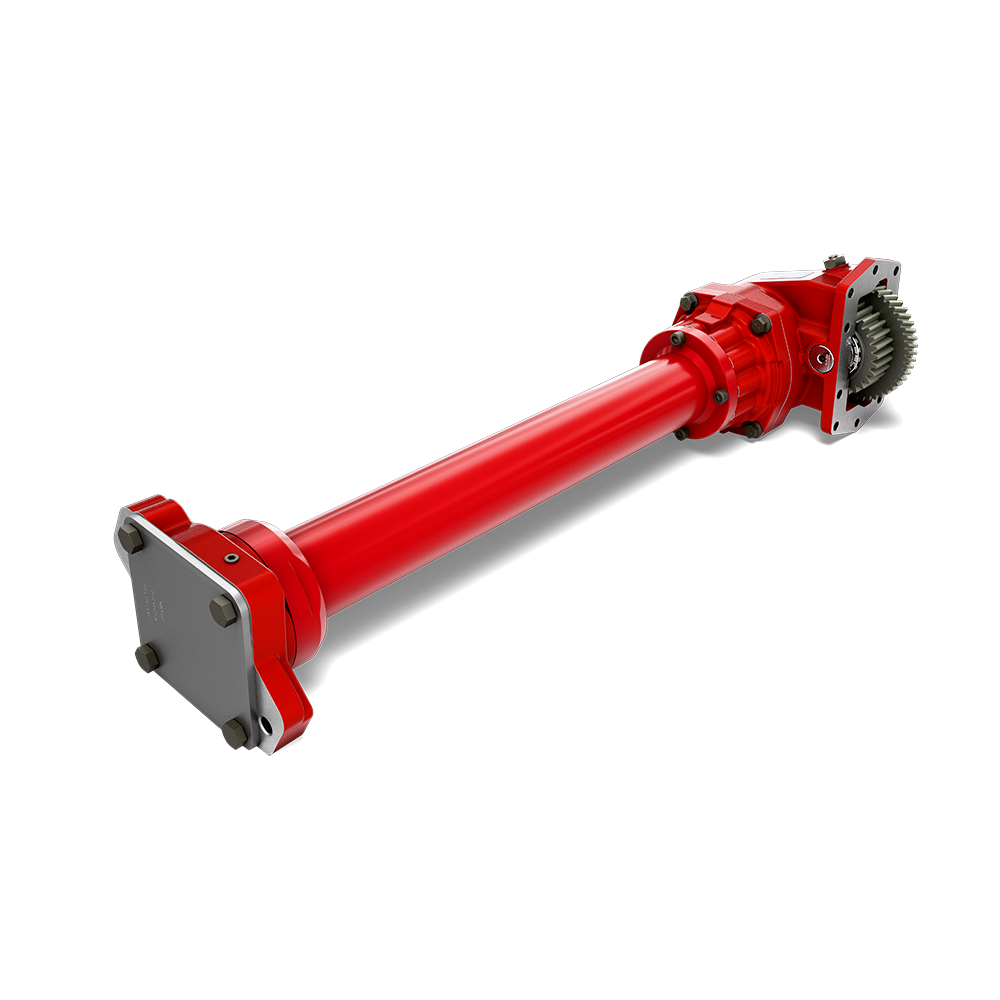

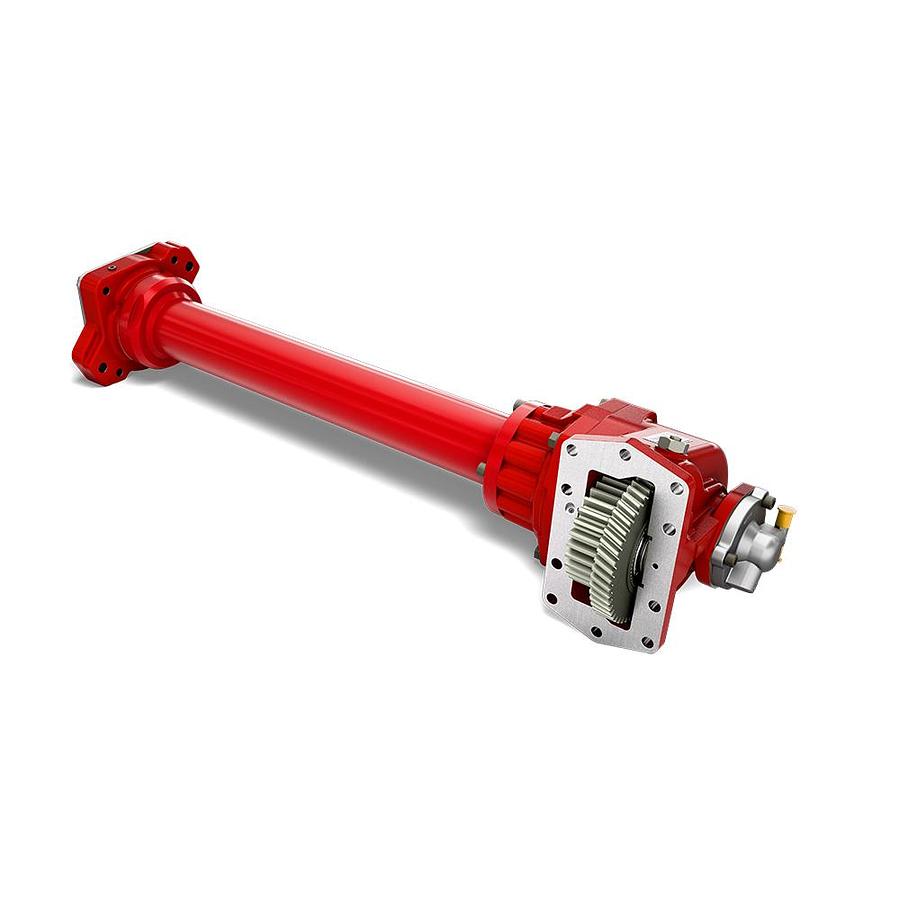

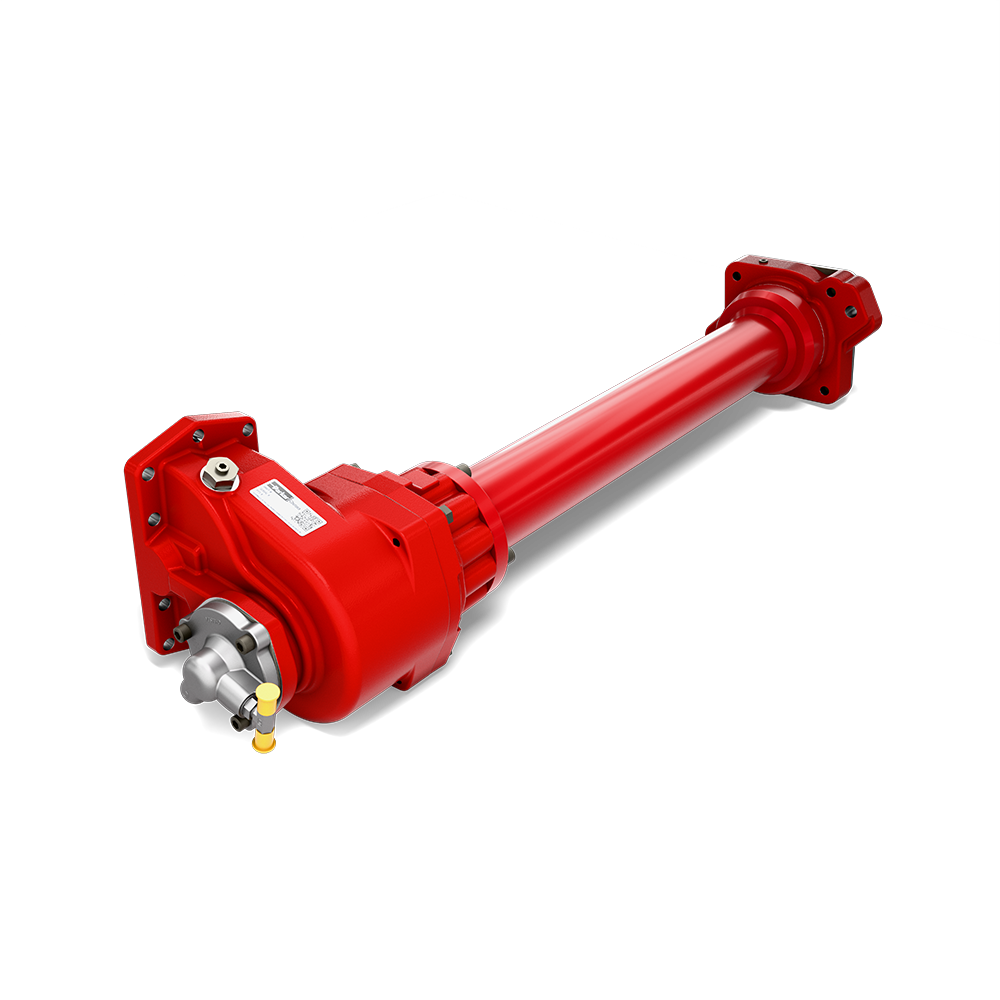

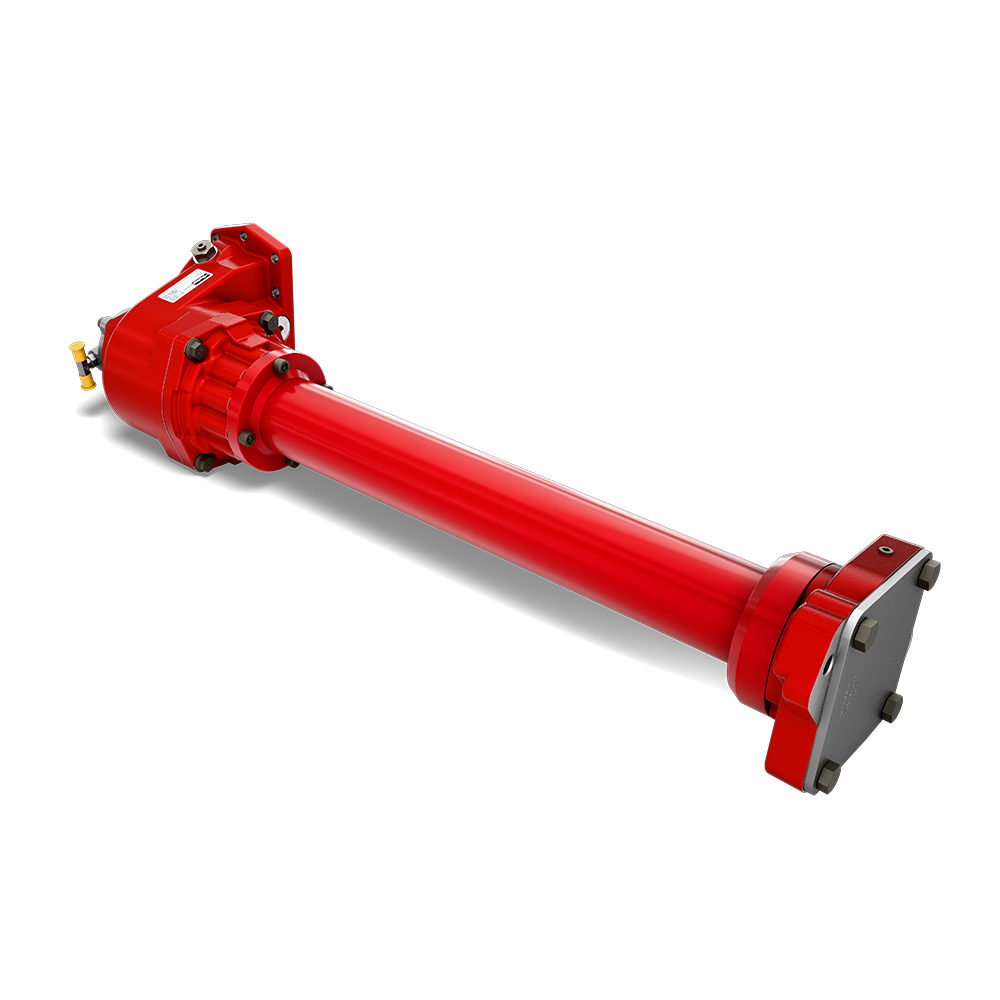

878L Series Power Take-Off

The 878-XL Series Power Take-Off allows direct mounted pumps to be moved further rearward in the truck chassis. The 878-XL provides additional space between PTO aperture and pump flange to allow for even larger pumps. An optimized bracket system available from Chelsea allows for the installation of pumps up to 120 lbs. The 878-XL Series PTOs is now built with ductile iron bearing caps, which are 117% stronger than its predecessor. It also features an o-ring sealing configuration between the housing and bearing cap to improve clamp load. These improvements are focused on reducing the damaging vibrational affects caused by today’s and future engine designs.

Markets:
• Fire and Rescue
• Pumper Cleaner
• Oil and Gas
• Refuse

Features and Benefits:
• Strong – Ductile Iron bearing cap - 117% stronger than gray iron.
• Improved Seal – O-ring sealing configuration to reduce vibrational affects and improve clamp load.
• Pump Clearance – Moves the PTO output flange rear of transmission cooler or retarder.
• Ease of Installation – Simplified output support bracketing.
• Quiet – Quiet Gear input gear available.
• Speeds – Eight speed ratios including low and high speeds.
• Outputs – Five rotatable pump flange options.
