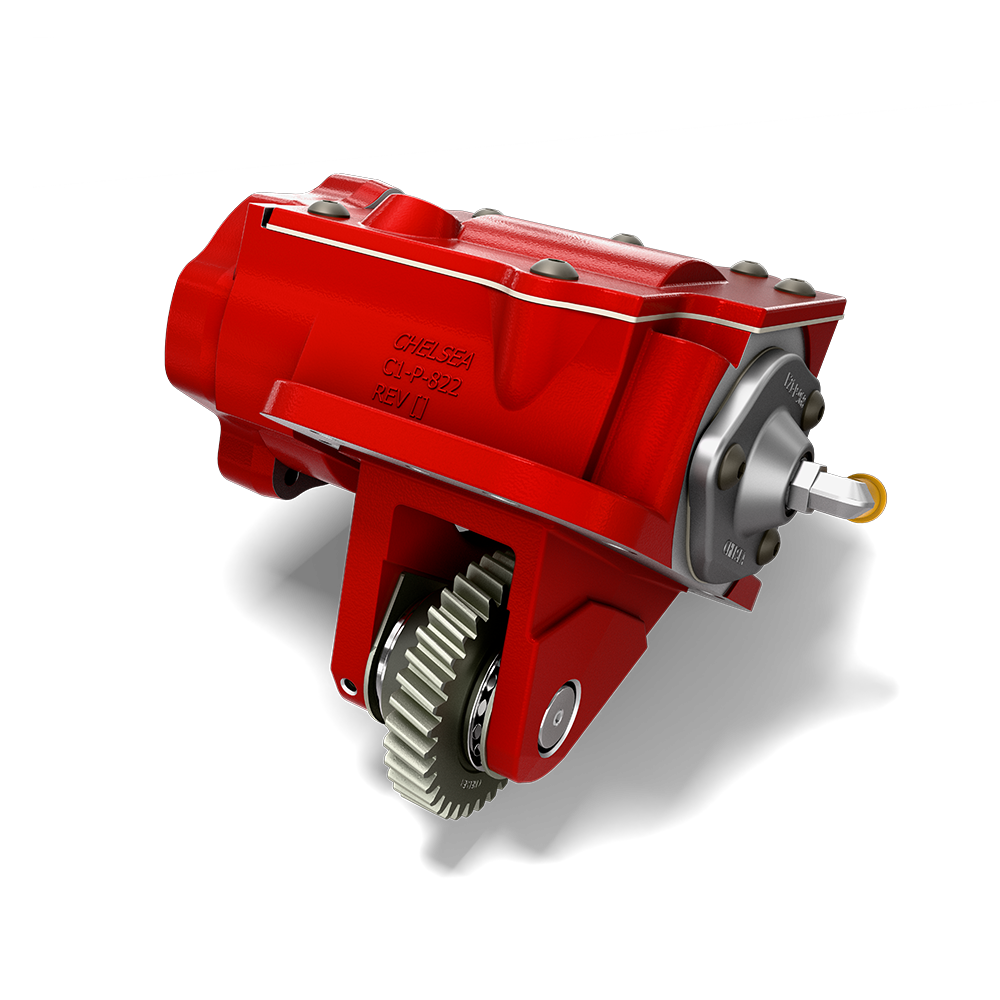

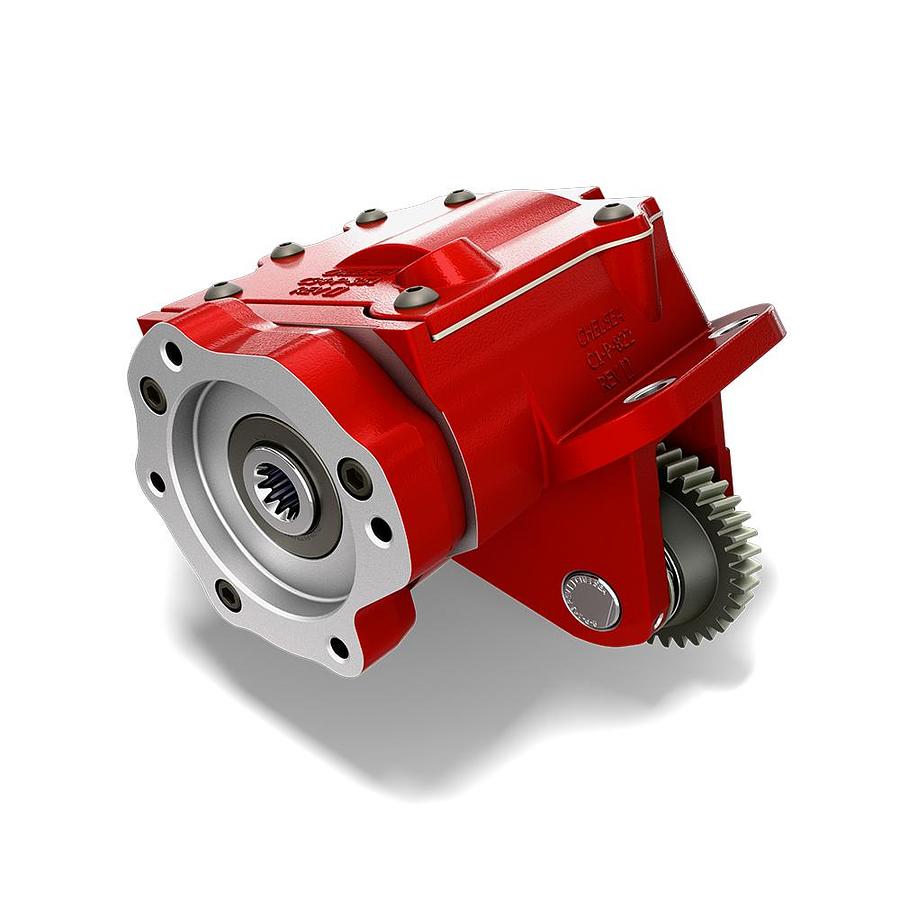

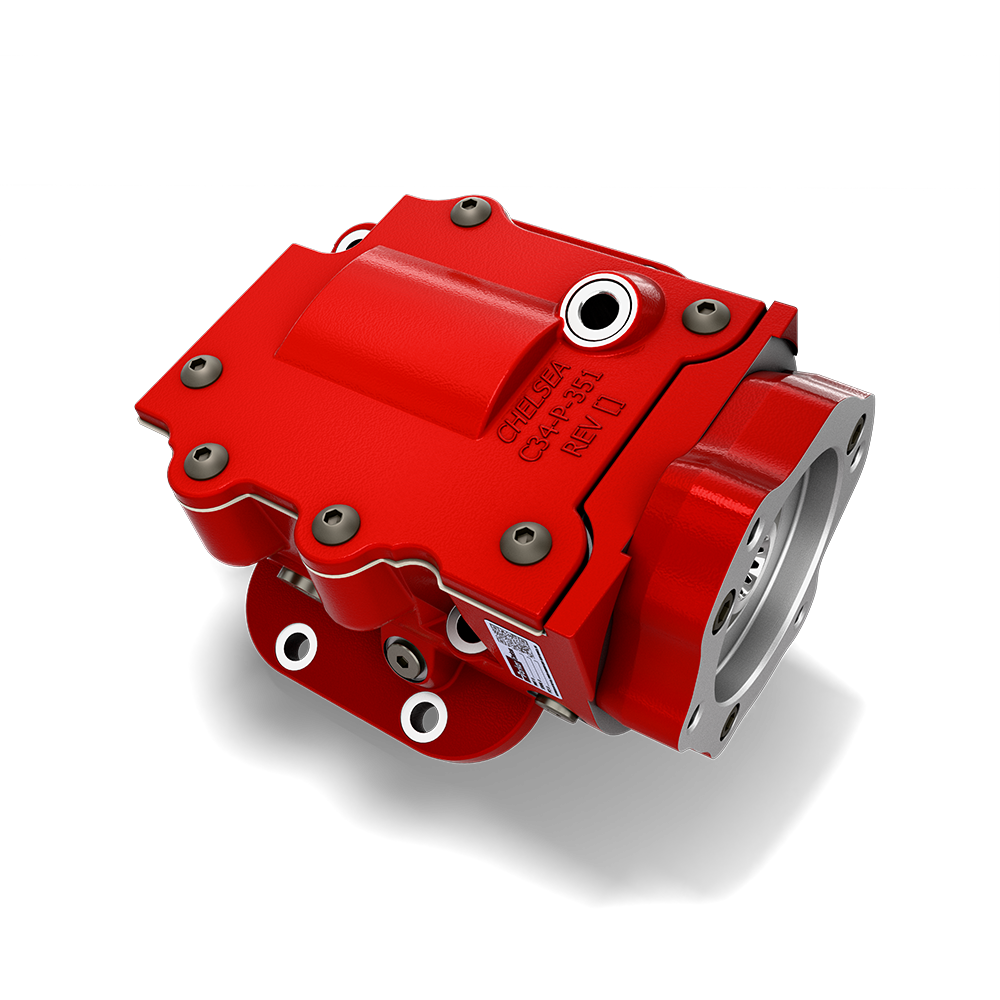

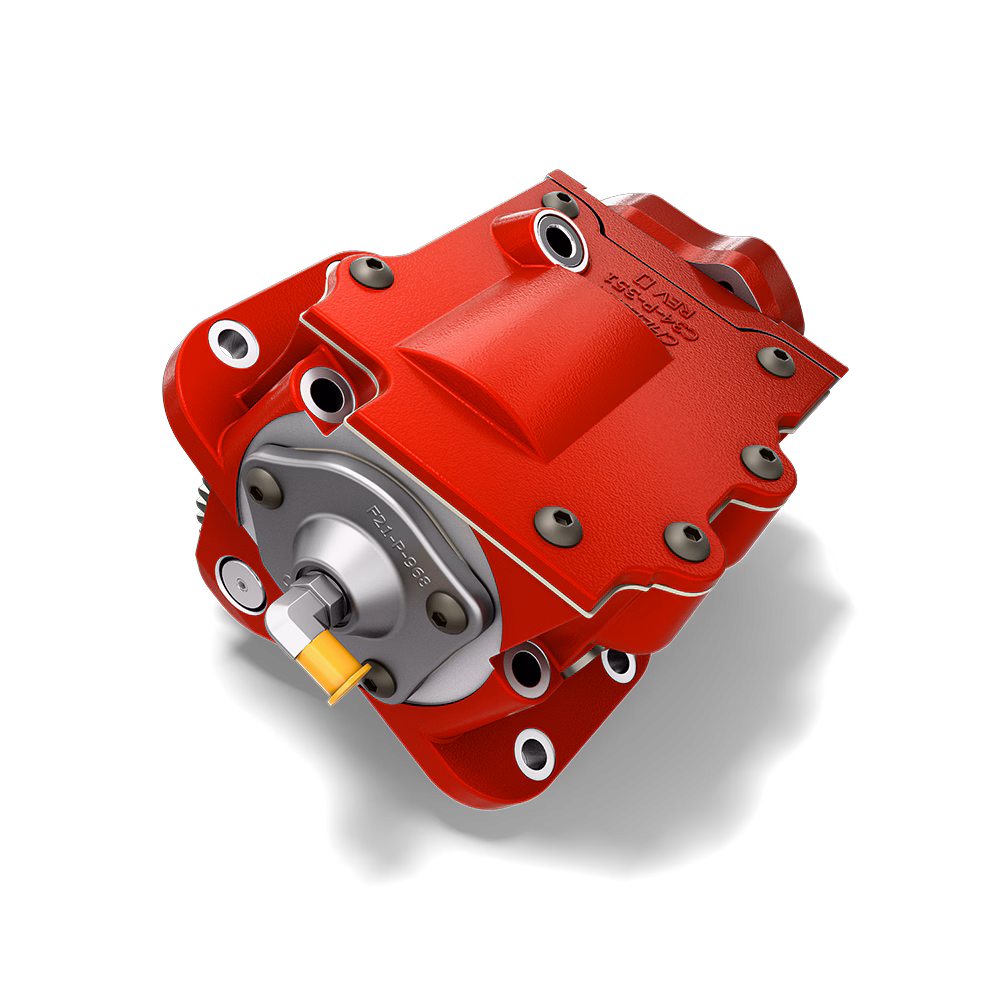

Z15 Series Power Take-Off
Description
The Z15 Series Power Take-Off shows Parker Chelsea’s commitment to meeting the evolving needs of modern vocational vehicles. Specifically designed for the MY2025 Ram Heavy Duty platform equipped with the ZF PowerLine™ 8-speed TorqueFlite® HD automatic transmission, this live-drive, hydraulically shifted PTO delivers powerful performance in a compact footprint. The Z15 offers a pressure-lubricated configuration and supports multiple pump mount options, making it ideal for applications with space limitations. With its robust design, the Z15 Series maintains Chelsea’s reputation for durability, while providing consistent power for the most demanding upfits.
Markets:
• Aerial
• Tow and Recovery
• Light Dump Truck
• Snow and Ice
• Service Truck
• Water Drilling
Features and Benefits:
• Compact Footprint
• LiveDrive Capability
• Pressure Lubrication
• Remote Hydraulic Shifting
• Two Year Warranty
• Smart Start Option for High-Torque Start-up
• Two Year Warranty
Markets:
• Aerial
• Tow and Recovery
• Light Dump Truck
• Snow and Ice
• Service Truck
• Water Drilling
Features and Benefits:
• Compact Footprint
• LiveDrive Capability
• Pressure Lubrication
• Remote Hydraulic Shifting
• Two Year Warranty
• Smart Start Option for High-Torque Start-up
• Two Year Warranty
Specifications
| Manufacturer | Parker |
| Model | Off |
| Condition | New |
| Transmission Manufacturer | ZF |
| Mounting Type | 8-Bolt |
| Continuous Torque | 111 lb-ft, 150 Nm |
| Shift Type | Hydraulic |
| Outlet Flange Type | SAE A |
| Output Shaft Type | SAE B (7/8 - 13T), SAE A (3/4 - 11T) |
| Lubricant | P = Pressure Lube |
| Weight | 33 lbs, 15 kg |
