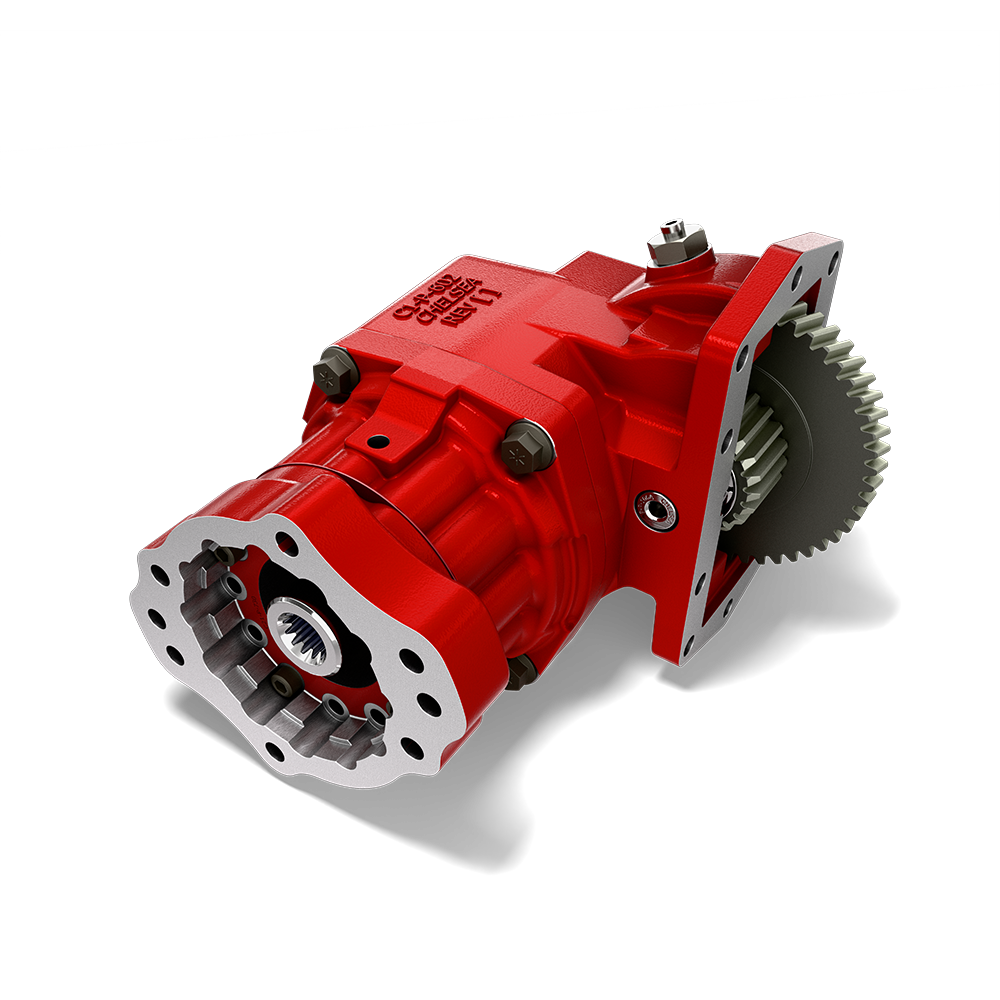

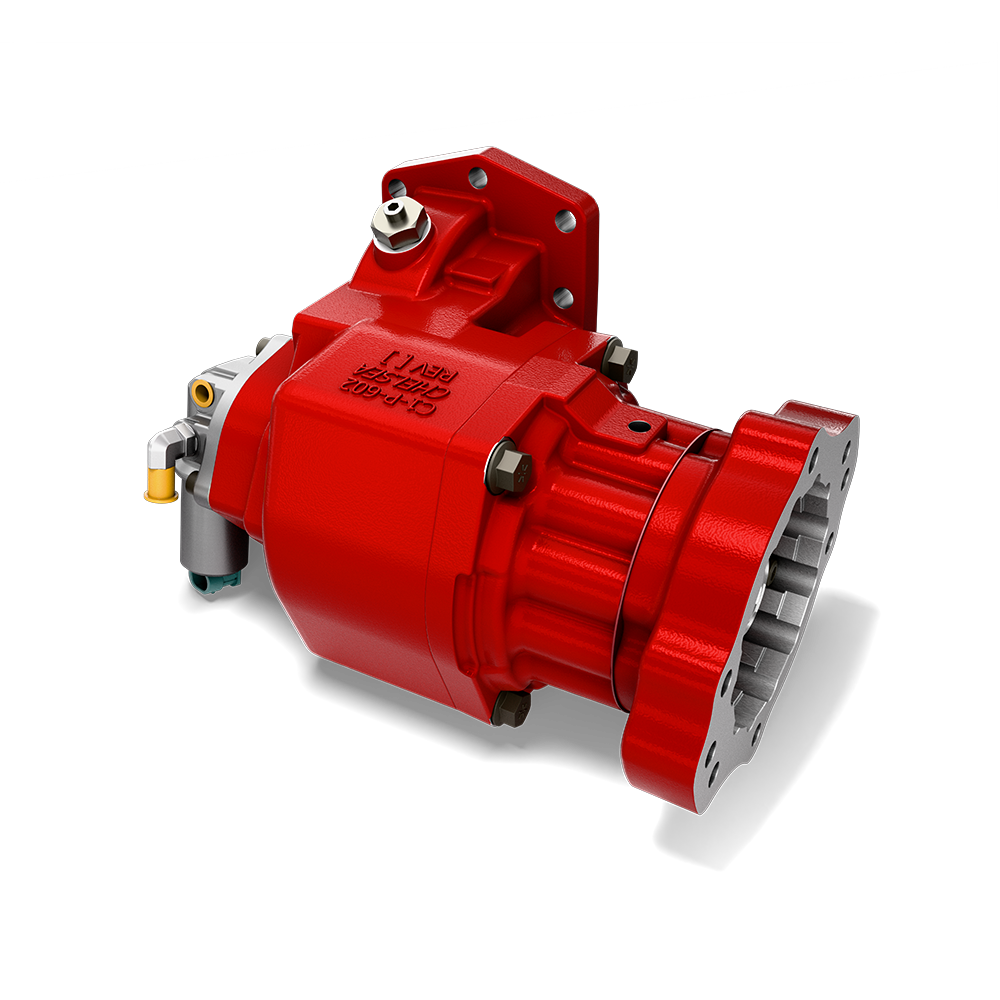

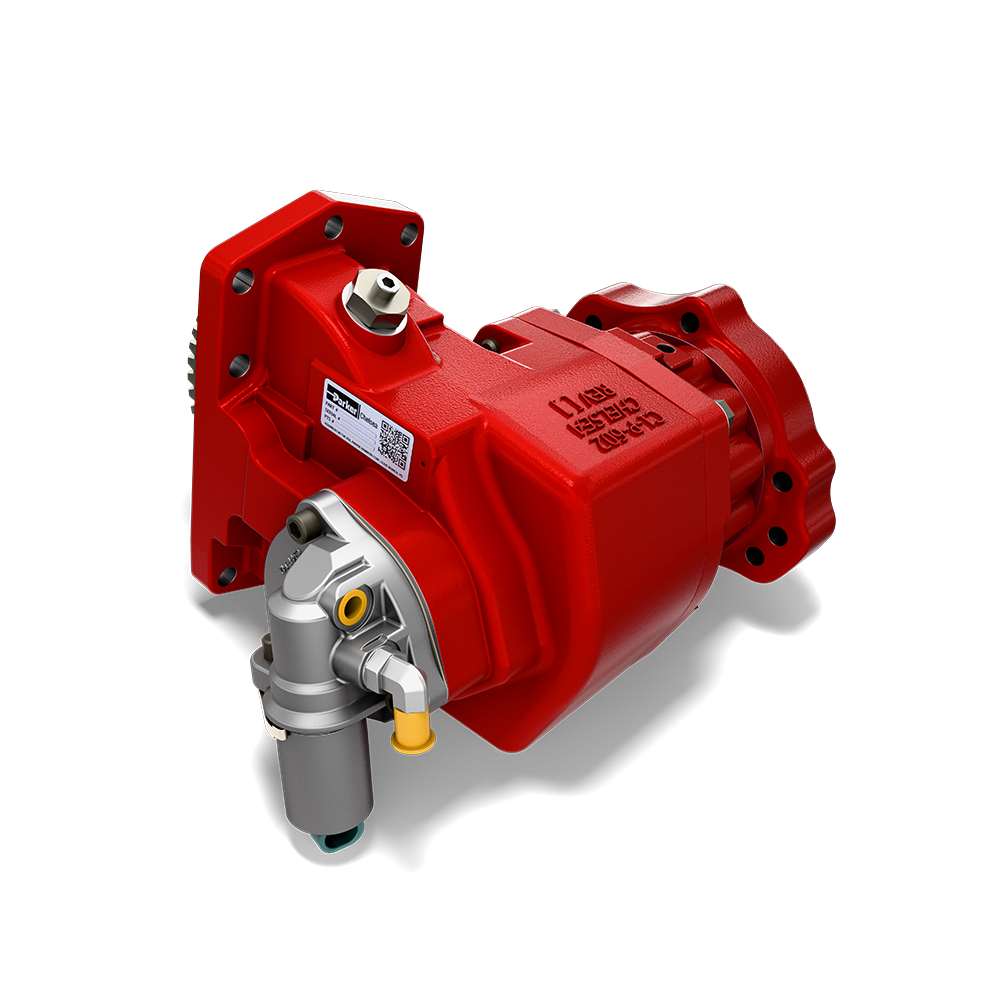

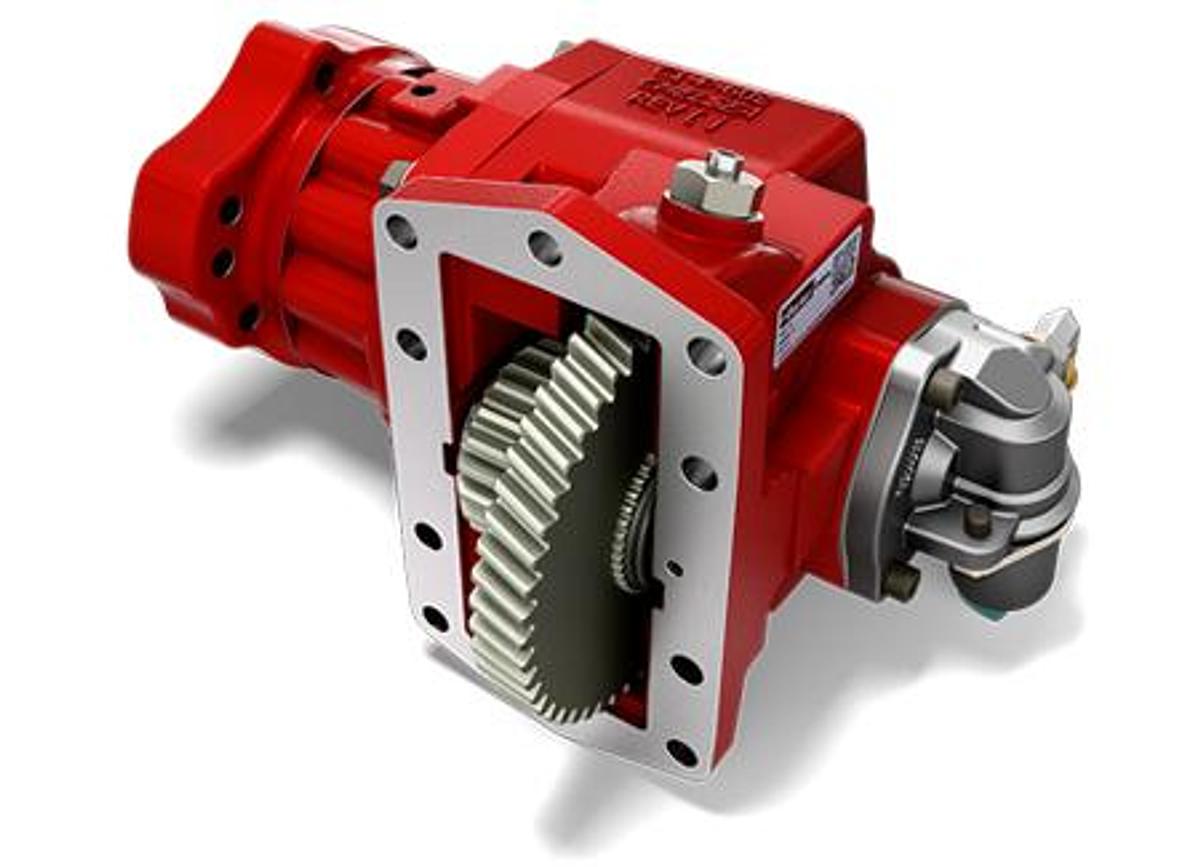

281 Series Power Take-Off

The 281 Series Power Take-Off is evidence that Parker Chelsea is constantly investing in finding the world’s greatest solutions to industry challenges. Chelsea’s 281 Series PTO is an evolution of the top-selling 280 Series PTO. Upgrades include a ductile iron bearing cap which is 117% stronger than its predecessor. It also features an o-ring sealing configuration between the housing and bearing cap to improve clamp load and the thickness of the steel discs within the clutch pack have been increased by 80%. All of these improvements are focused on reducing the damaging vibrational effects caused by today’s and future engine designs.

Markets:

• Fire and Rescue

• Truck Cranes

• Pumper Cleaner

• Refuse

Features and Benefits:

• Ductile Iron Bearing Cap – 117% stronger than gray iron.

• Improved Seal – O-ring sealing configuration to reduce vibrational affects and improve clamp load.

• Enhanced Clutch Pack – 80% thicker steel disks in the clutch pack to resist premature tooth wear.

• Torque – Single, continuous duty torque rating.

• Clearance – Rotatable cast iron flanges to improve pump clearance.

• Positive Stop for Driveline Outputs – Eliminates oil seal damage from coupling.

• Wet Spline Lubrication Option – Provides 7 to 10 times greater shaft life.

• Speeds – Nine speed ratios including low and high-speeds.

• SmartStart – Reduces shock load at start-up for certain applications.

• Insurance – Electronic Overspeed Control (EOC) protects driven equipment.
