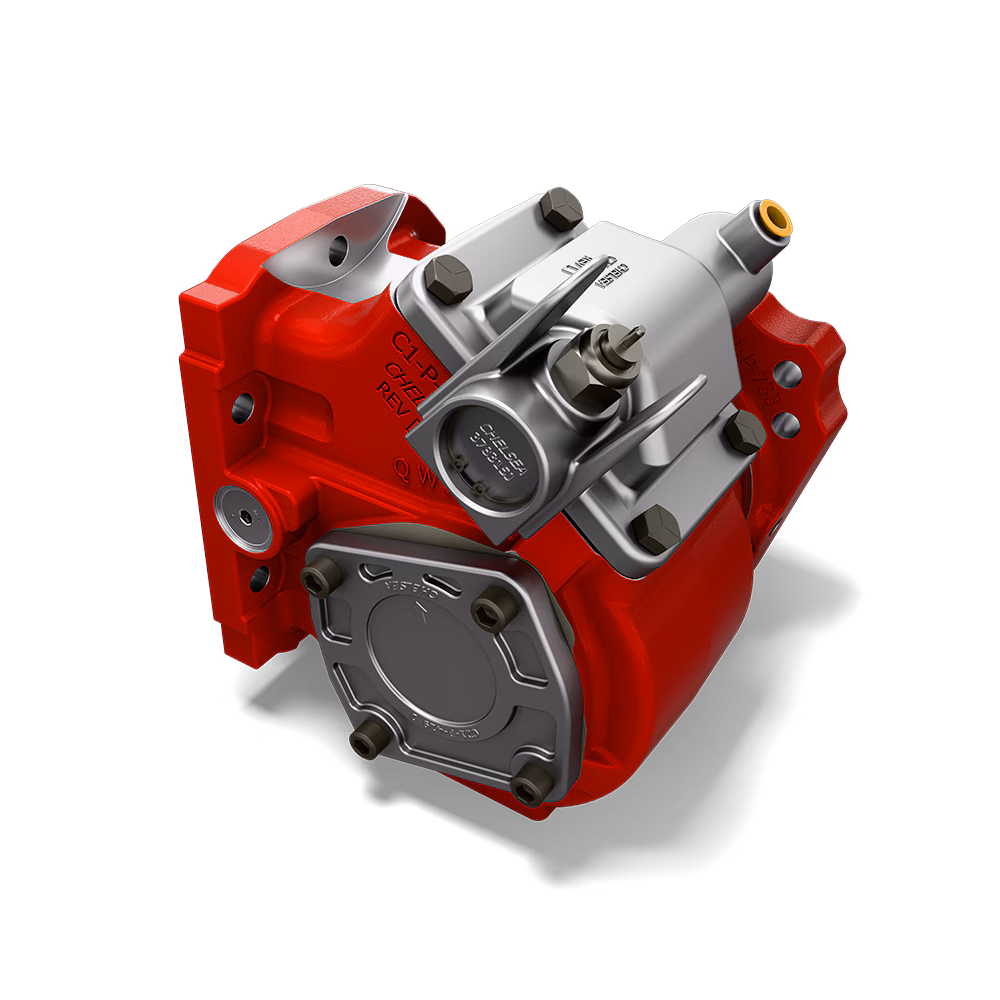

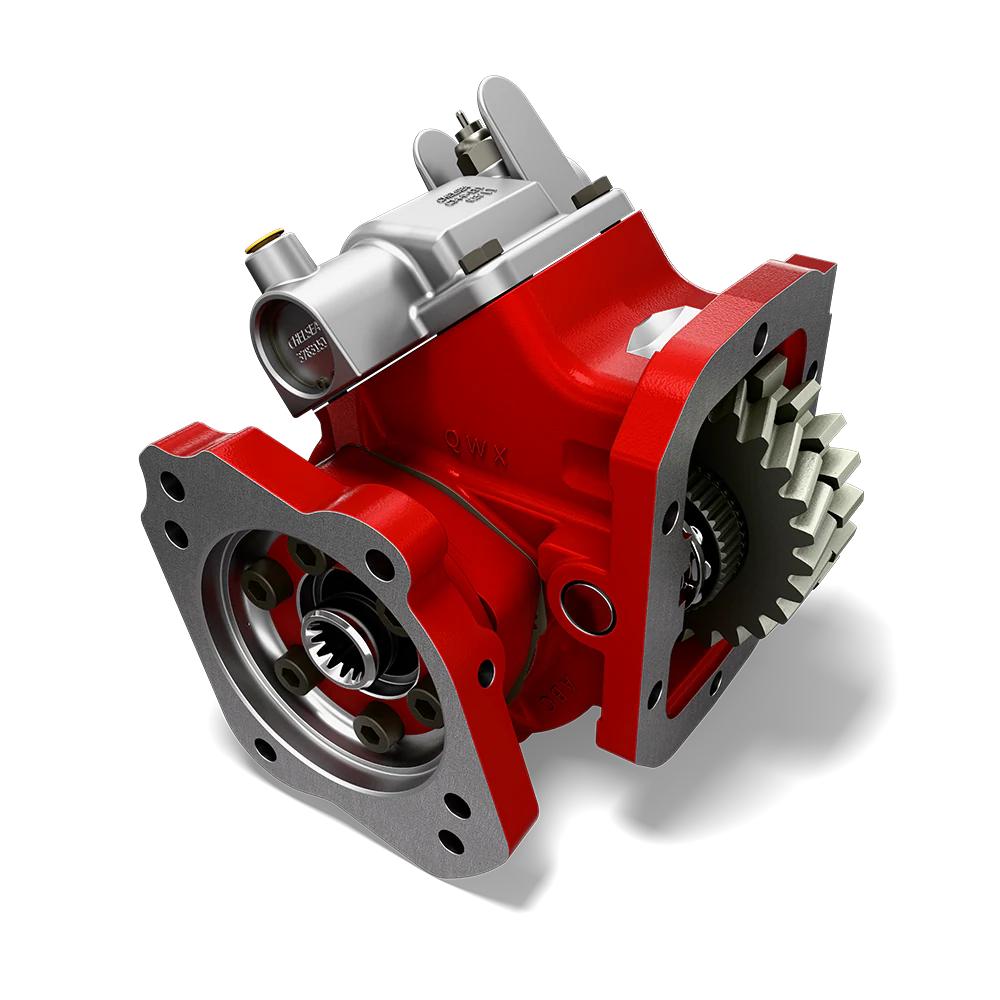

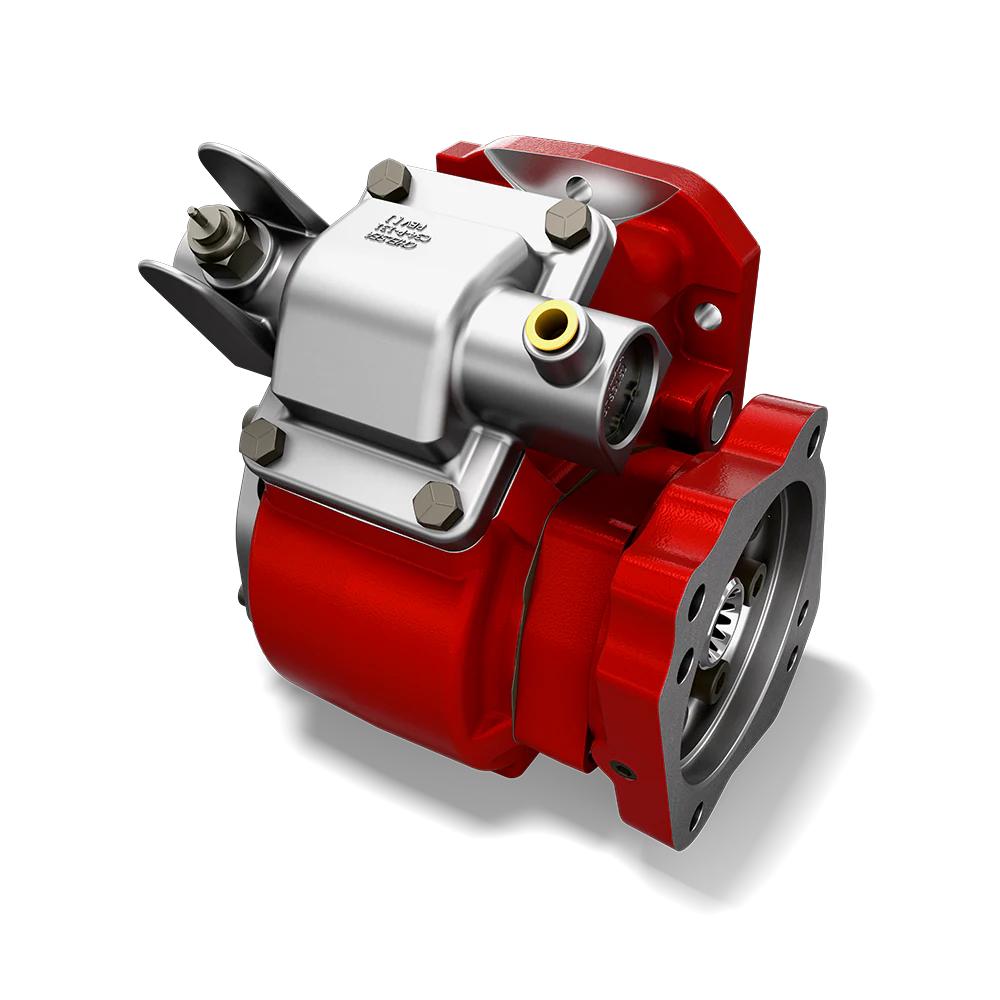

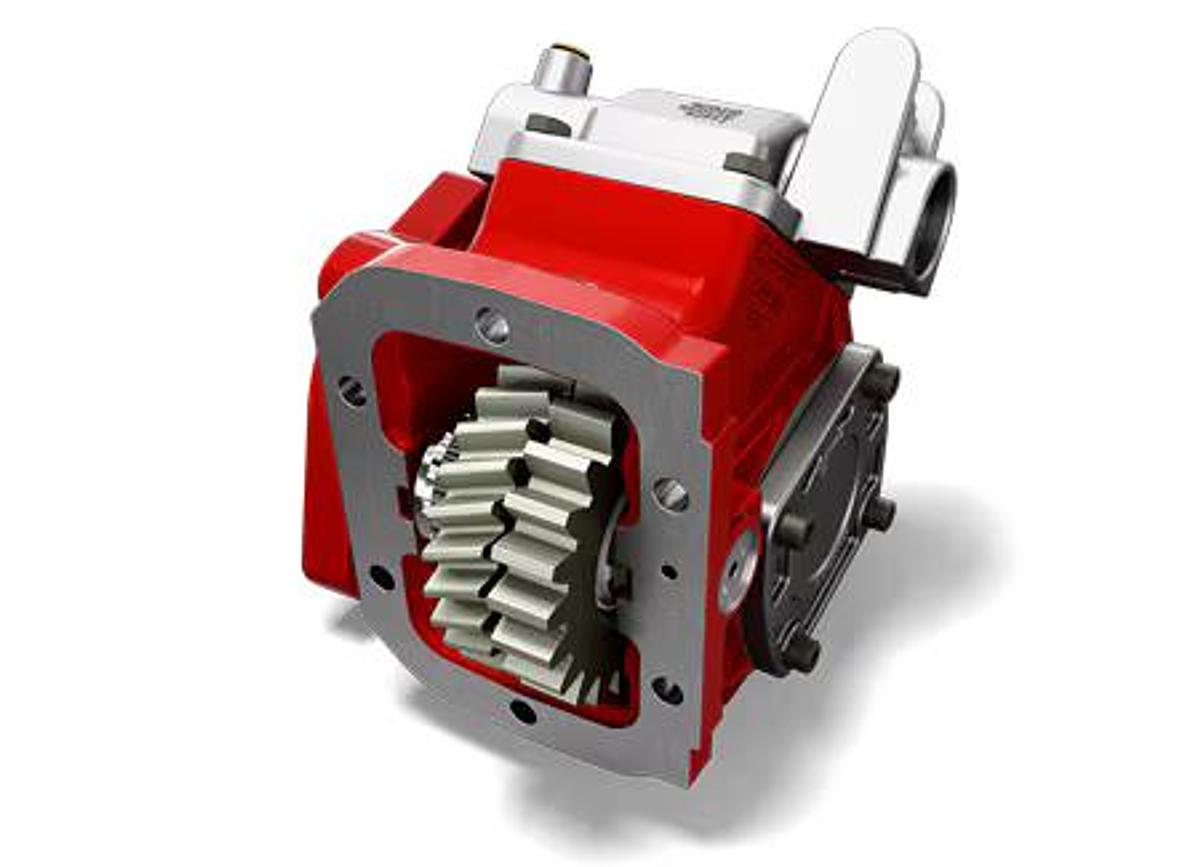

442 Series Power Take-Off

Contact Us

Description

The Chelsea 442 Series Power Take-Off (PTO) is another example of why Chelsea PTO technology is the best in the business. This economical workhorse features a cast iron housing and tapered cone bearings on the output shaft, giving it a robust torque rating and long service life. It is perfect for light-to-medium duty applications where dependability is important. Thirty-six output options, including Chelsea's popular 360° rotatable flange, eleven internal speed ratios, and ten shift options make this one versatile PTO. The 442 is ideal for tow trucks, service trucks, dump trucks, and small aerial trucks. Take advantage of over 65 years of Chelsea PTO technology to increase performance and lower costs.

Markets:
• Aerial
• Fire & Rescue
• Construction Equipment
• Forestry Equipment
• Vocational & Municipal Equipment

Features/Benefits:
• Cast iron housing for long service life
• Low-profile shift cover
• Rotatable output flanges for improved clearance
• Greaseable output shafts for extended life
• Two-year Warranty

Applications:
• Snow & Ice Trucks
• Service Trucks
• Dump Truck
• Towing & Recovery Trucks

Specifications

ManufacturerParker
ModelOff
ConditionNew
Intermittent Torque201 to 300 lb-ft, 301 to 400 Nm, 250 lb-ft (Check Application Pages for Actual Torque Ratings), 339 Nm (Check Application Pages for Actual Torque Ratings)
Output Power46 to 55 HP, 31 to 40 kW
Shift TypeWire/Cable, Mechanical
Mounting Type6-Bolt
Product Series442
Output Shaft TypeRound Shaft (1" - 1/4" Key)
Shaft Power24 HP (500 RPM), 48 HP (1000 RPM), 18 kW (500 RPM), 36 kW (1000 RPM)
Continuous TorqueDe-Rate Torque Rating 30% Nm (Check Application Pages for Actual Torque Ratings)
Weight21 lb, 9.5 kg
LubricantP = Pressure Lube, X = No Pressure Lube
