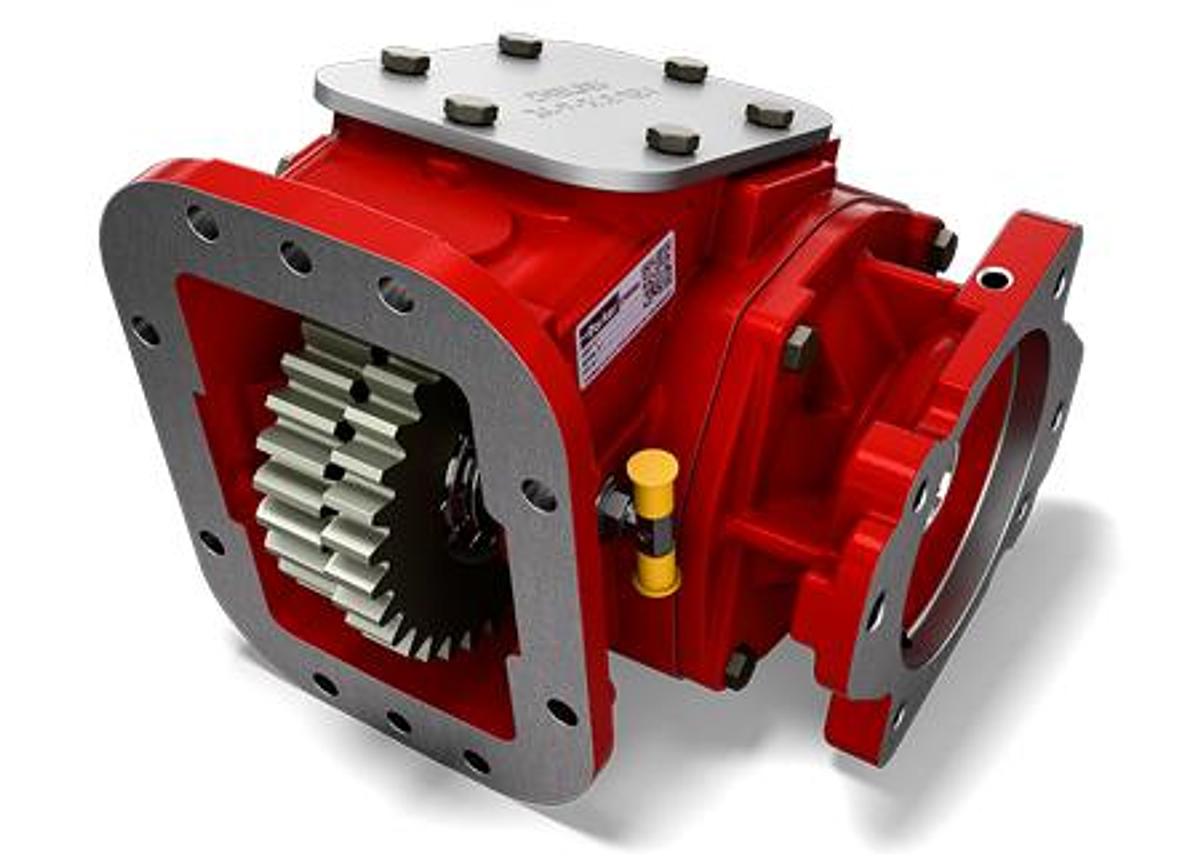

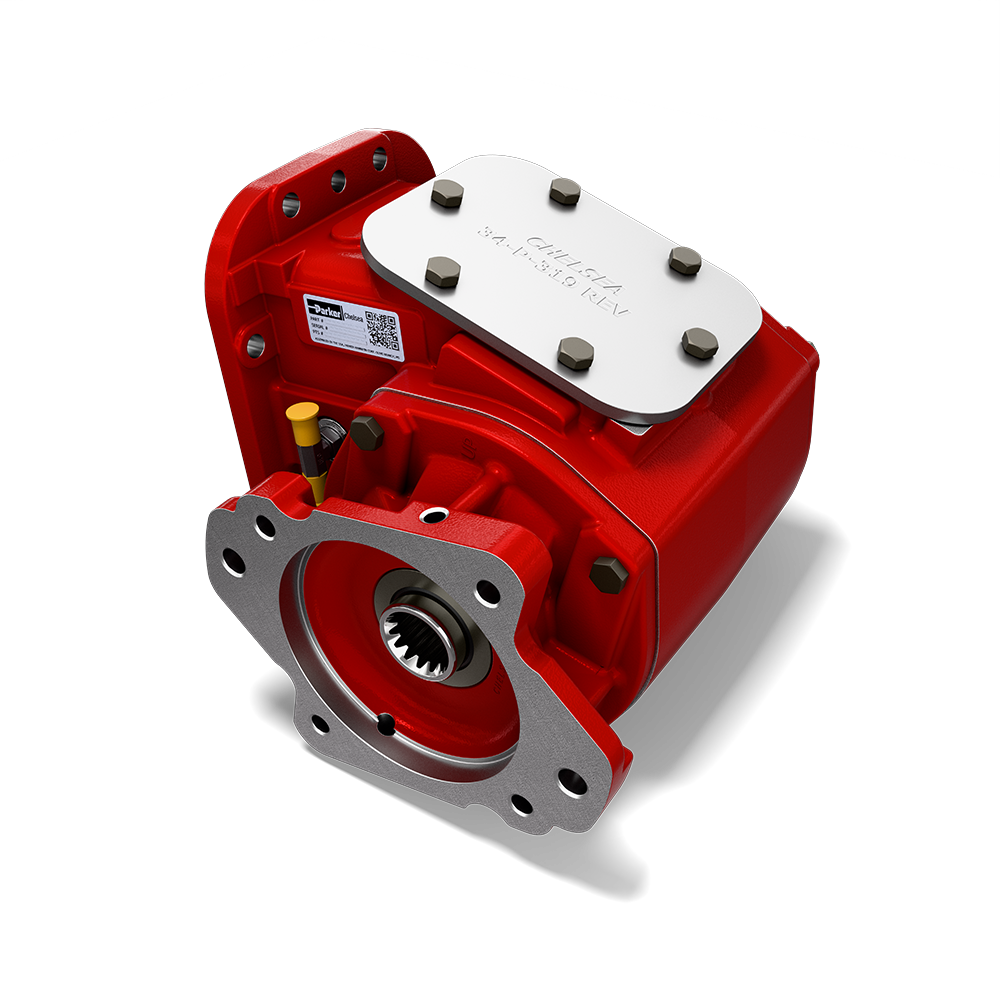

880 Series Power Take-Off

Chelsea 880 Series 8-Bolt Power Take-Off (PTO) is ideal for bulk haulers, blowers, fire trucks, oil rigs, utility and generator applications, large tow trucks, recovery trucks or other tough challenges. Available for a wide variety of transmissions, including Eaton Endurant, the 880 Series PTO is designed for high and low speed, high torque applications with constant mesh input gears. It features a standard lever control shift or an optional air control shift. Tapered cone bearings offer excellent load bearing capabilities. The shift cover is removable, making backlash adjustment easier and more accurate. Specifically, the 880 is an 8-Bolt, 10 spline, 1-1/2"-10 spline output heavy duty shaft PTO, rated for up to 500 lbs-ft torque for intermittent service.



Markets:

• Oil & Gas

• Aerial

• Mining

• Other Mobile

• On-Highway Vehicle



Features and Benefits:

• Rugged cast iron housing for durability

• Simple backlash adjustment for reduced installation time

• Dual-Pump output for mounting a pump on each end of the PTO

• Two Year Warranty



Applications:

• Bulk Haulers

• Winch Applications

• Fire Trucks

• Oil Field

• Aerial

• Large Truck Recovery
