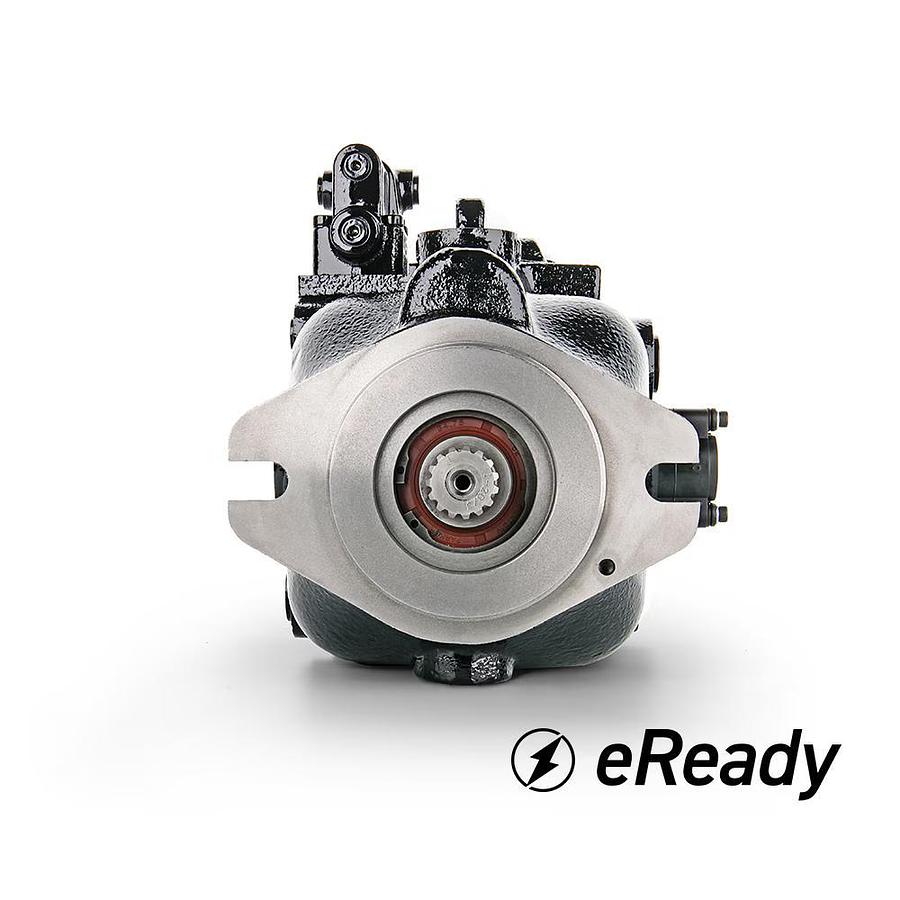

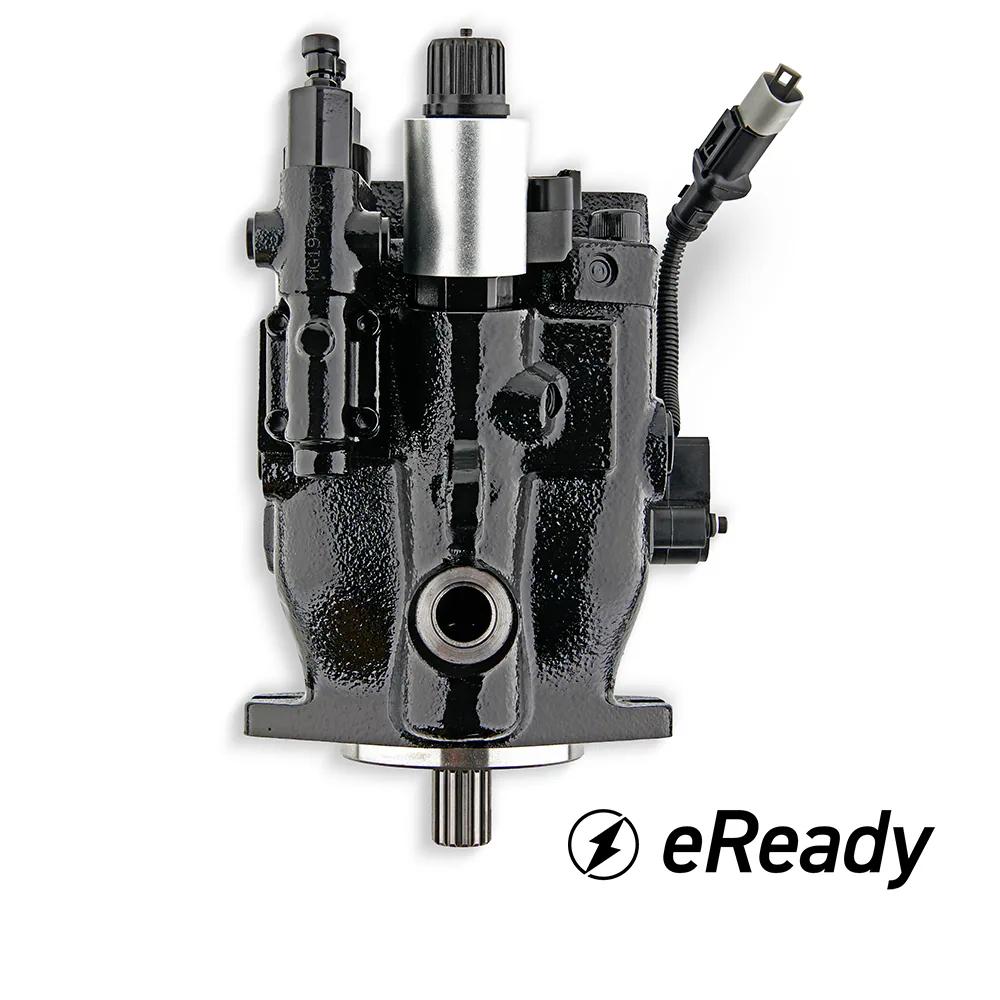

Medium Pressure Mobile Pumps – P1M Series

The P1M is a 280 bar (4060 psi) compact open circuit variable axial piston pump designed for Mobile applications with hydromechanical and electronic control options. With excellent efficiency and high speed capability, this 9 piston cam & cradle designed pump has dual shaft seal and full thru-drive capability that can operate in wide temperature ranges. The P1M features a high response electronic displacement control that simplifies programming, increases controllability, and reduces pressure overshoots.

Markets

• Construction

• Mining

• Oil & Gas

• Agriculture

• Refuse

• Forestry

• Crane

• Material Handling

• Marine

• Work Truck

• Transportation

• Military

Features and Benefits

• Patented inlet design enables Best-in-class rotational speeds & power density

• Patented inlet design increasing pump life by reducing cavitation erosion & pressure ripples

• Compact package allows a fit into tighter spaces

• High efficiency compared to other mobile designed pumps

• Extensive/modular control options enable complete circuit customization

• Patented electronic control for faster response, simplified programming, and reduced pressure overshoots

• Direct operated fan drive control for lower stand-by pressures, higher efficiency, and increased stability

• Nine piston design reduces pressure ripples

• Dual shaft seal capable

Technical Characteristics

• Available in 7 cc displacements: 28,45, 54, 65, 73, 85, 105

• Speed of range: 2600 – 3300 rpm

• Maximum Operating Pressure: 280 bar, 4060 psi
