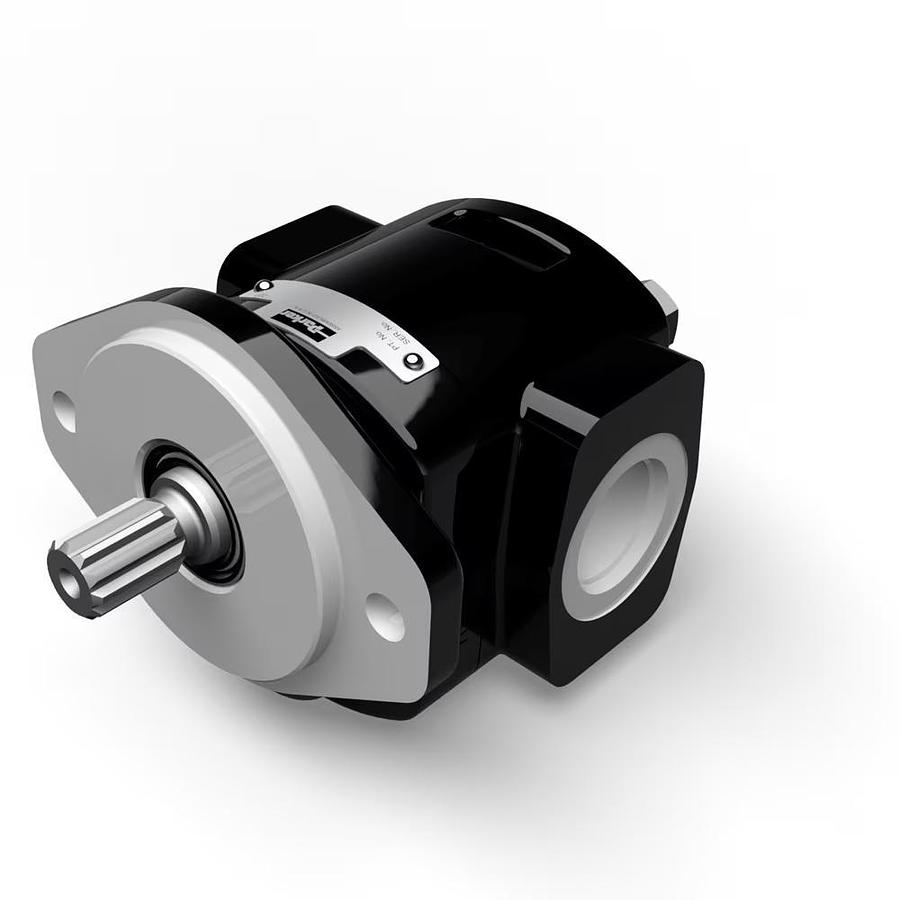

Cast Iron Pumps - PGP610 Series

Parker’s 600 Series power density provides the desired horsepower without requiring more expensive pump/motor technology and lowers OEM bill-of-material expenditures. Parker’s 610 series fixed/positive displacement external gear pumps are high pressure pumps that offer the most volumetrically efficient and power dense solution due their interlocking, two-piece cast iron design, making the 600 series ideal for engineered mobile equipment solutions demanding energy efficient, high performing hydraulic systems. The 600 series is widely used in the most demanding applications such as Construction, Material Handling, and Military. They are available as single or multi-section hydraulic pumps with pressure relief and anti-cavitation.



Markets:

• Agriculture Machinery

• Construction Equipment

• Forestry Equipment

• Material Handling Equipment

• Turf Equipment

• Mining

• Oil & Gas



Features/Benefits:

• Two-piece, interlocking body construction for high efficiency and high pressure

• Cast iron pumping sections for durability

• Journal bushings for long life

• Pressure balanced thrust plates for high efficiency

• Multiple sections available



Applications:

• Fan drive pump

• Mower pump

• Steering and brake pump

• Winch pump



Technical Specifications:

• Sizes from 7 to 32cc

• Operating pressures up to 275 bar (4,000 psi)

• Speeds up to 3,300 rpm

• CW, CCW, and Bi-rotational pumps available

• SAE shafts, flanges and porting available

• Extensive valve options available:  Pressure relief, anti-cavitation, cross port relief, solenoid unloading, and proportional relief.
