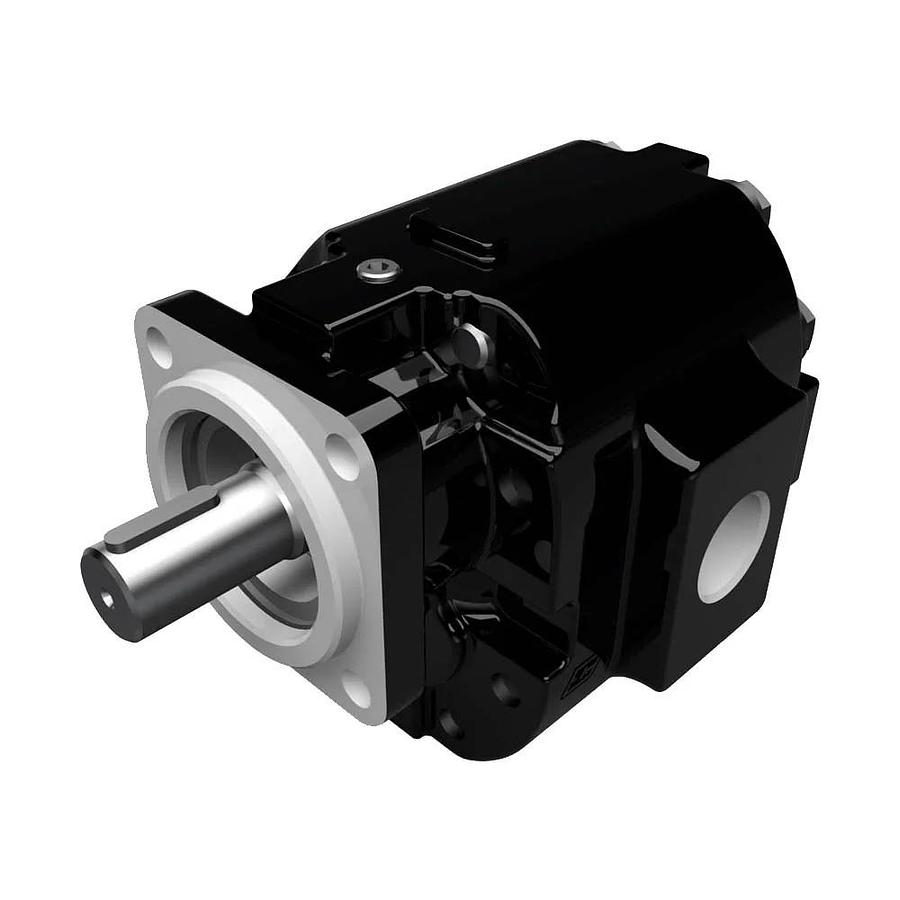

Cast Iron Pumps – PG076 Series

Parker’s 076 series fixed displacement commercial gear pumps offer high durability and resistance to oil contamination due to their cast iron, roller bearing construction, making them an ideal selection for the Vocational Truck, Winch, and Oil & Gas markets. They are available as single or multi-section pumps with an integral valve. View all gear pump components, markets served, and technical specifications below:

Markets:
• Aerial
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Material Handling
• Turf Equipment
• Vocational & Municipal Equipment
• Mining
• Oil & Gas

Features/Benefits:
• Three-piece cast iron construction for distribution flexibility
• Cast iron construction for durability
• Balanced thrust plates minimize friction and leakage
• Roller bearings for durability
• Multiple sections available

Applications:
• Tire Trucks
• Salt and Sand Spreaders
• Aerial Lift
• Roll-Off Truck
• Moving Floor Truck
• Refuse Truck
• Oil & Gas Service Trucks

Technical Specifications:
• Flow range to 121.4 gpm (459.5 lpm) per section
• Displacements from 3.07 to 12.3 cir (50 to 202 cc/rev)
• Operating pressures up to 200 bar (3,000 psi)
• Speeds up to 2,400 rpm
• Volumetric efficiencies up to 95%
• CW, CCW, and bi-rotational pumps available
• SAE and SI shafts, flanges and porting available
• Multiple section
• Extensive integrated valve capabilities
- Relief with anti-cavitation check
- Priority flow control
- Unloader valves
- Accumulator charge (single and dual)
- Two-speed valves (winches, ground drives)
- Load sense priority flow divider (bolt-on)
- Dry valves, HOC™ (hydraulic overspeed control), flow controls
- Crossover relief valves
