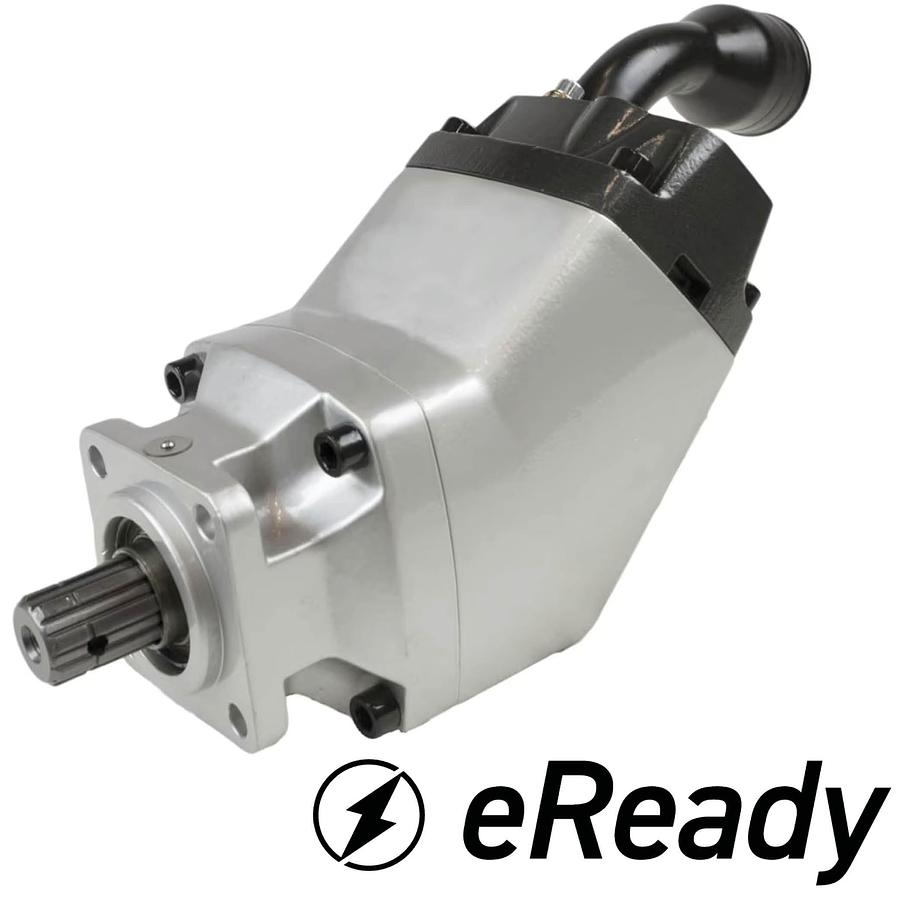

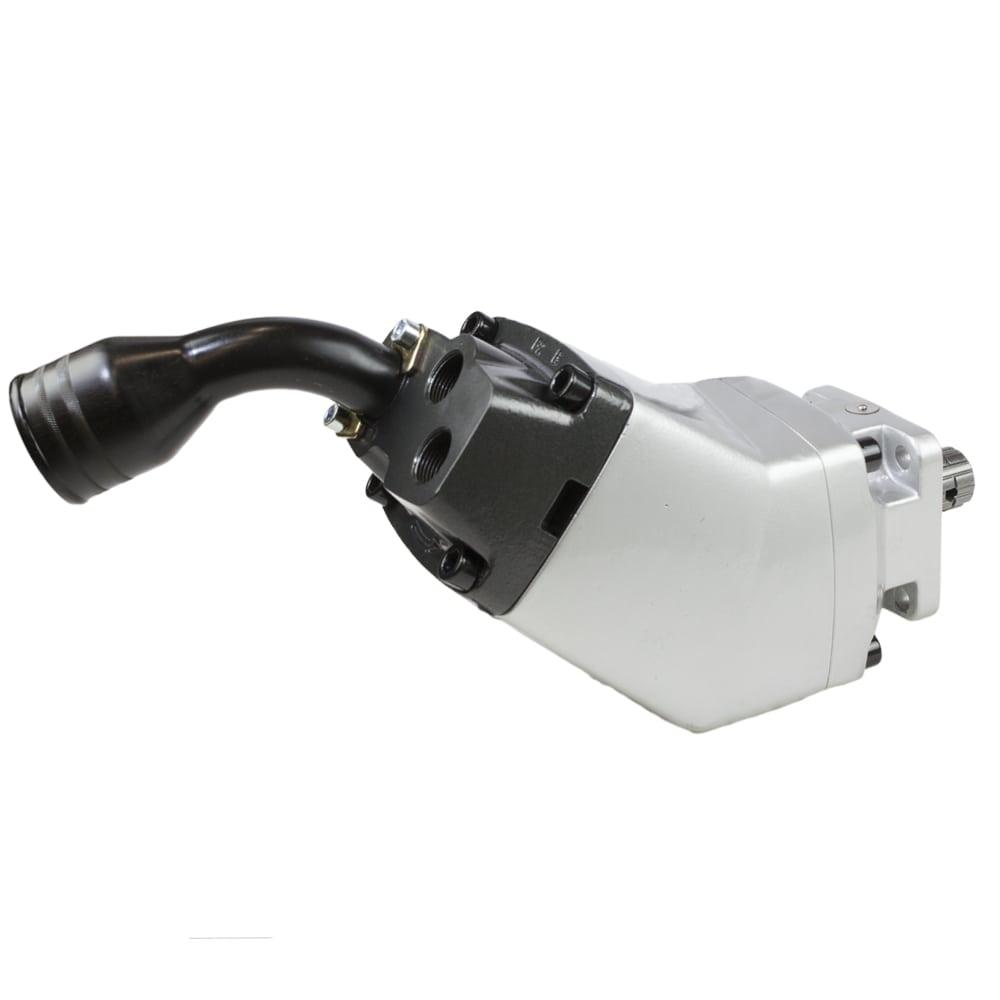

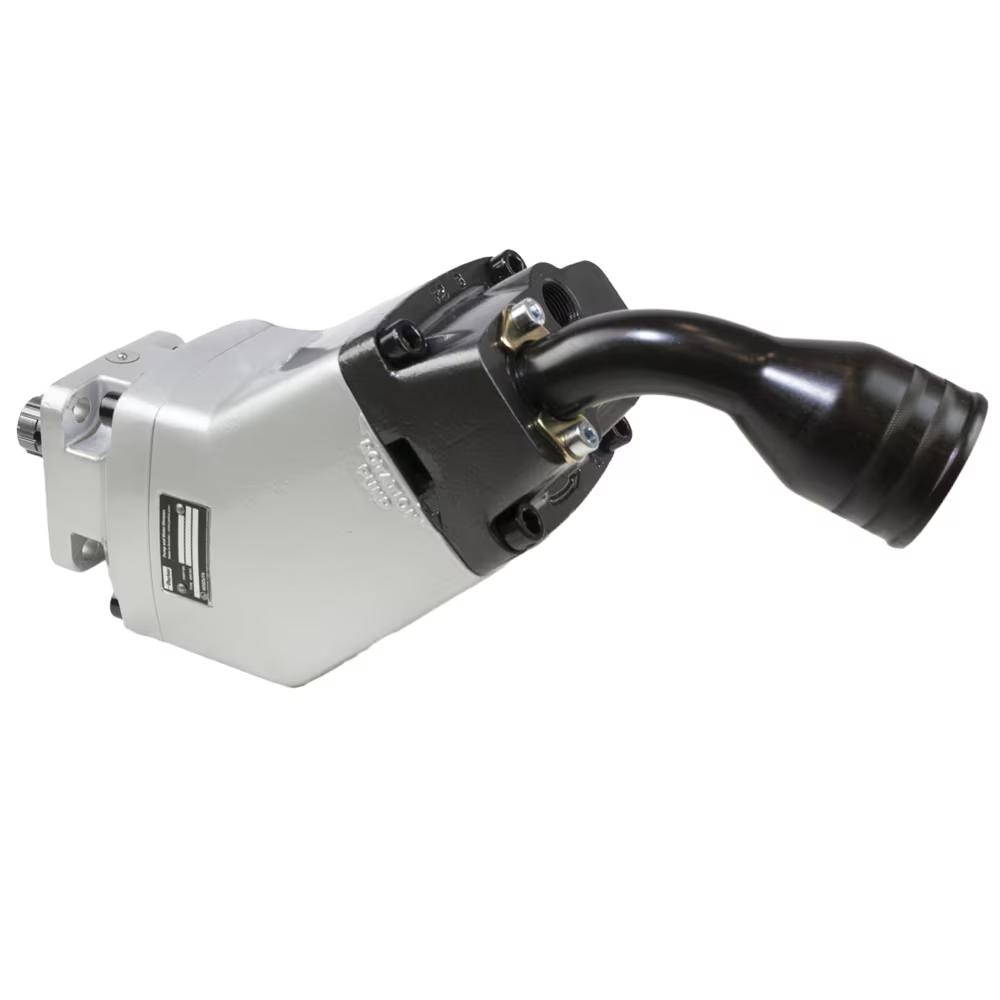

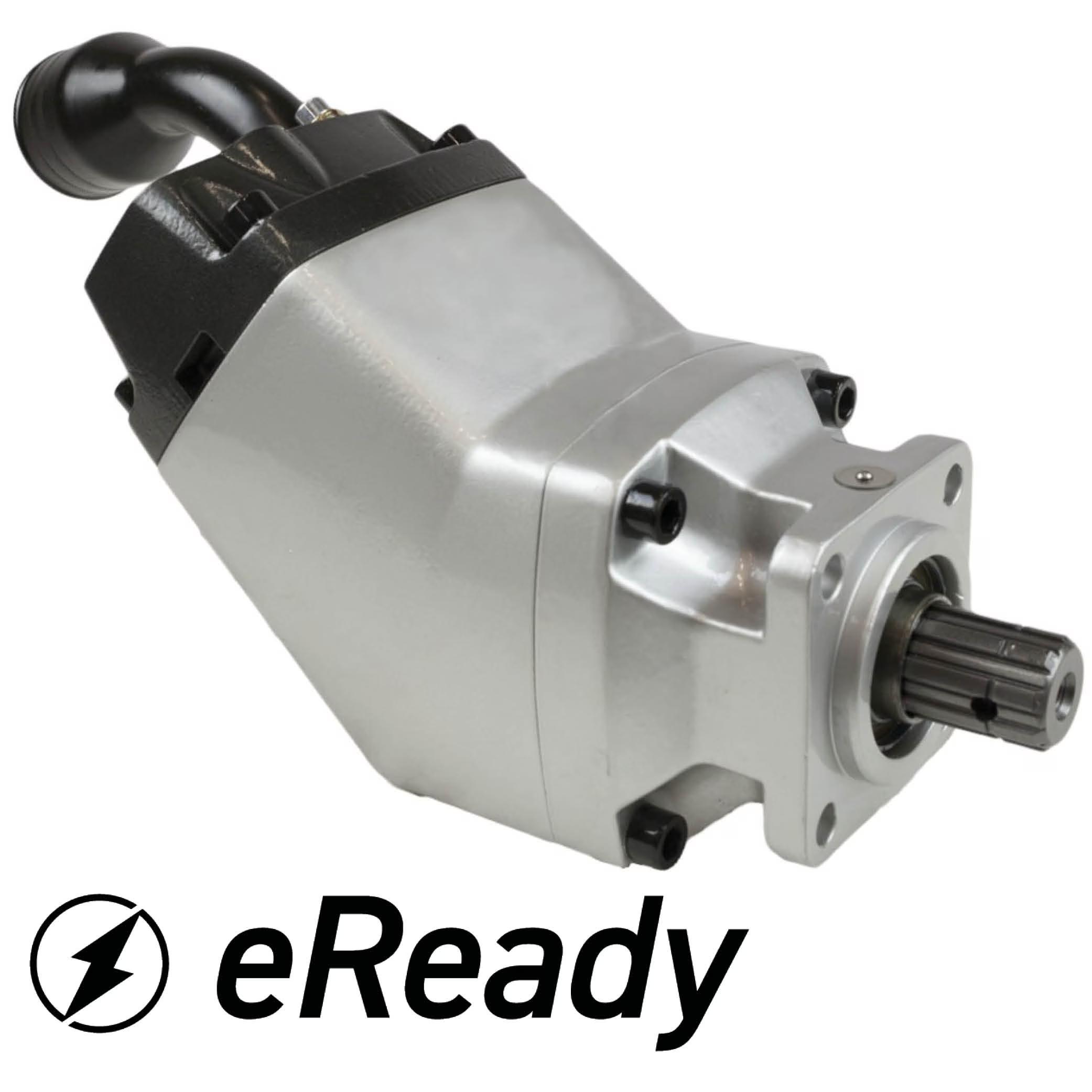

Bent Axis Fixed Pumps - Series F2

Parker’s hydraulic truck pump series F2 is a further development of the twin-flow version of series F1, the very first bent-axis truck pump on the market to feature two entirely independent flows. With a suitable build-up of the hydraulic system, the main advantage with a Twin-Flow Pump is that three different flows can be provided at the same engine speed. Featuring a Smart System Solution, F2 pumps provide circuit reliability at speeds up to 2100 rpm at 400 bar (5,800 psi). The F2 hydraulic pump is a very efficient and straight forward pump design with unsurpassed reliability. Its small envelope size gives a simple and inexpensive installation.

Rigorous product testing and continuous product development help to ensure our hydraulic pumps operate at optimum efficiency and can perform in the most demanding environments.

Markets:

• Mobile

• Transportation

Features/Benefits:

• Displacement from 43/41 - 68/68 cc – support various applications.

• Accessories for direct mount on Engine PTO - (Bypass-valve).

• 3 flows from 1 pump. 2 separate flows which can be combined.

• High selfpriming speeds – increased productivity.

• High overall efficiency – increased reliability.

• Low weight – low bending torque on PTO, easy to install.

• Laminated piston rings – low leakage resulting in more uptime.

• Installation above the reservoir level possible – flexibility in installation.

• Operating pressures up to 400 bar.

• Shaft end and mounting flange meet ISO standard.

• Small installation dimensions – fits wide range of applications.

• Tolerates low and high temperature shocks – suitable for the most demanding environments.

Applications:

• Forestry cranes

• Hook loaders / Lift dumpers

• Large truck loaders

• Tipper/crane combinations

• Refuse collecting vehicles

• Multipurpose vehicles

We have included in above configurator part numbers for our F2 hydraulic pump, please download our latest catalogue under Product Support for the latest information/updates or contact your local Parker Dealer for support.

* Made in Sweden
