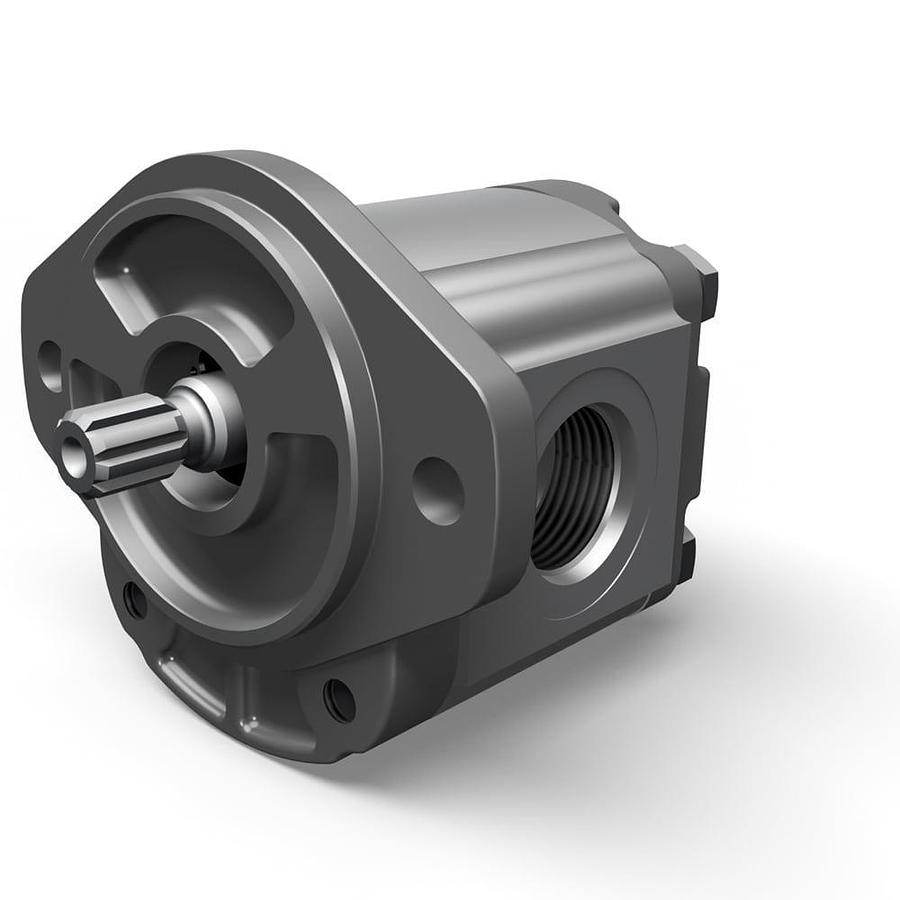

Aluminum Pumps – PGP511 Series
Description
Parker’s 511 series fixed displacement gear pumps offer cost effective, high power density due to their aluminum, bushing block construction, making them ideal in a broad selection of markets such as Material Handling, Agriculture, Turf, as well as a variety of Industrial Applications. They are available as single or multi-section pumps.
Markets:
• Aerial
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Material Handling Equipment
• Turf Equipment
• Vocational & Municipal Equipment
Features/Benefits:
• Three-piece construction for distribution flexibility
• Aluminum pumping sections for light weight
• Journal bushings for long life
• Pressure balanced thrust blocks for high efficiency
• Multiple sections available
Applications:
• Power steering pumps – priority valves available
• Brake pump
• Brush Chipper
• Trencher pump
• Hydraulic Power Unit
• Aerial Lift
• Transfer pump
• Lube pump
Technical Specifications:
• Sizes from 3 to 33cc
• Operating pressures up to 250 bar (3,625 psi)
• Speeds up to 4,000 rpm
• CW, CCW, and Bi-rotational pumps available
• SAE shafts, flanges and porting available
• Extensive valve options available: Pressure relief, anti-cavitation, cross port relief, solenoid unloading, proportional relief, and reversing.
Markets:
• Aerial
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Material Handling Equipment
• Turf Equipment
• Vocational & Municipal Equipment
Features/Benefits:
• Three-piece construction for distribution flexibility
• Aluminum pumping sections for light weight
• Journal bushings for long life
• Pressure balanced thrust blocks for high efficiency
• Multiple sections available
Applications:
• Power steering pumps – priority valves available
• Brake pump
• Brush Chipper
• Trencher pump
• Hydraulic Power Unit
• Aerial Lift
• Transfer pump
• Lube pump
Technical Specifications:
• Sizes from 3 to 33cc
• Operating pressures up to 250 bar (3,625 psi)
• Speeds up to 4,000 rpm
• CW, CCW, and Bi-rotational pumps available
• SAE shafts, flanges and porting available
• Extensive valve options available: Pressure relief, anti-cavitation, cross port relief, solenoid unloading, proportional relief, and reversing.
Specifications
| Manufacturer | Parker |
| Model | PGP511 Series |
| Condition | New |
| Operating Pressure | up to 3625 psi, up to 250 bar |
| Flow Rate | n/a |
| Displacement | up to 33 cm3/rev, up to 2 inch3/rev |
| Body Material | Aluminum |
| Drain Option | No |
| Charge Pump Included | No |
| Circuit Path | Open |
| Configuration | Single, Tandem, Multiple |
| Control Method | Relief, Load Sense, Priority, Unloading |
| Energy Recovery Capability | No |
| Filter Included | No |
| For Fluid Type | Standard Hydraulic Fluids, Phosphate-ester, Water-Glycol |
| Maximum Displacement | 33 cm3/rev, 2 inch3/rev |
| Maximum Flow Rate | n/a |
| Maximum Fluid Temperature | 80 °C, 176 °F |
| Minimum Fluid Temperature | -15 °C, 5 °F |
| Maximum Operating Pressure | 250 bar, 3625 psi |
| Radial Load Capacity | Consult Parker, Consult Parker |
| Maximum Operating Speed | 4000 RPM |
| Maximum Kinematic Viscosity | 7500 SUS |
| Minimum Kinematic Viscosity | 50 SUS |
| Weight | 4.6 kg (Max), 10.1 lb (Max) |
| Media | Liquid, Liquids |
| Mounting Option | SAE, ISO, DIN |
| Port Connection | SAE, ISO, NPT, BSPP, ODT |
| Port Type | Flange, Straight Threaded |
| Port Location | Side Ports, Rear Ports |
| Pump Type | Gear, Fixed |
| Direction of Rotation | Clockwise, Counterclockwise, Bi-Rotational |
| Shaft Type | SAE, ISO, DIN, Industry Specific |
| Thru-Drive Capability | No |
