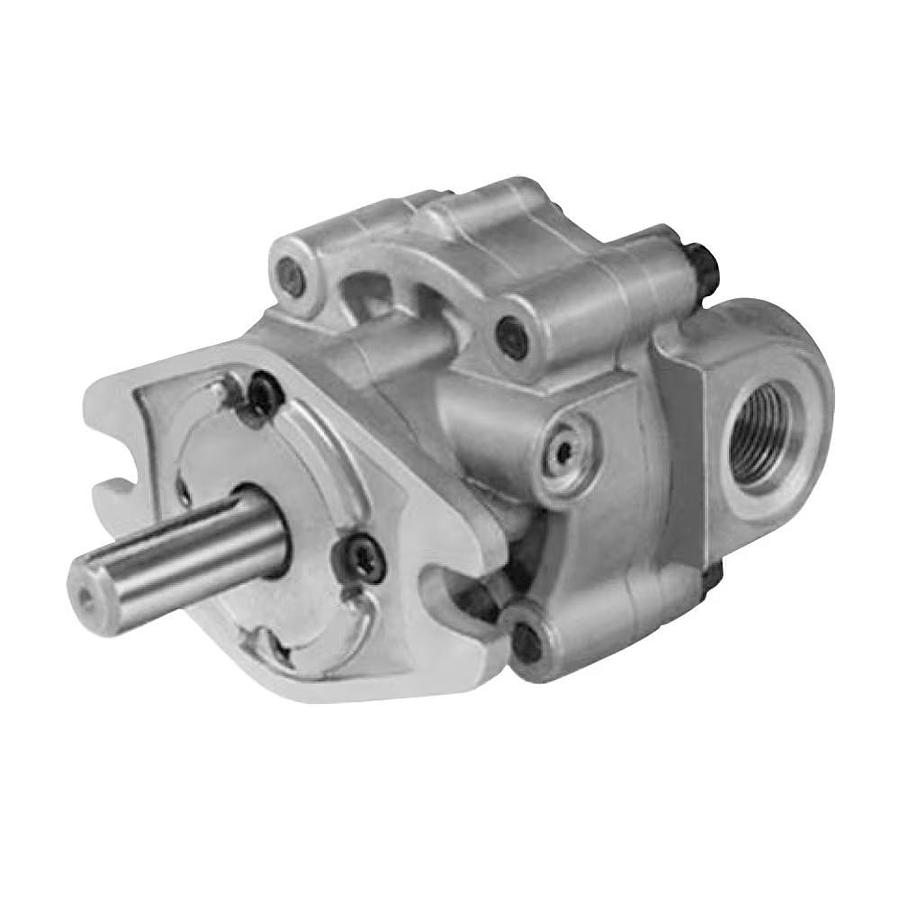

Aluminum Pumps – PGG Series
Description
Parker’s Aluminum Pump PGG Series fixed displacement High Speed Low Torque Gerotor pump offers high performance and high power density dues to its aluminum construction, making it an ideal selection for the Aerial, Agriculture, Construction, Forestry, Material Handling, and Turf Equipment markets. It is available as a standard pump, or a pump with a primary circuit relief valve.
Markets:
• Aerial
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Material Handling Equipment
• Turf Equipment
• Vocational & Municipal Equipment
Features/Benefits:
• Three-piece construction for distribution flexibility
• Aluminum pumping sections for light weight
• Roller bearings for durability
Applications:
• Power steering pumps
• Brake pump
• Hydraulic Power Unit
• Filter Cart Pump
• Transfer pump
• Lube pump
Technical Specifications:
• Flows from .95 GPM to 3.03 GPM per 1000 rpm
• Sizes from 3.57 to 11.471 cc/rev (0.218 to 0.700 cir)
• Operating pressures up to 138 bar (2,000 psi)
• Speeds up to 3,500 rpm
• CW, CCW, and Bi-rotational pumps available
• SAE shafts, flanges and porting available
Markets:
• Aerial
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Material Handling Equipment
• Turf Equipment
• Vocational & Municipal Equipment
Features/Benefits:
• Three-piece construction for distribution flexibility
• Aluminum pumping sections for light weight
• Roller bearings for durability
Applications:
• Power steering pumps
• Brake pump
• Hydraulic Power Unit
• Filter Cart Pump
• Transfer pump
• Lube pump
Technical Specifications:
• Flows from .95 GPM to 3.03 GPM per 1000 rpm
• Sizes from 3.57 to 11.471 cc/rev (0.218 to 0.700 cir)
• Operating pressures up to 138 bar (2,000 psi)
• Speeds up to 3,500 rpm
• CW, CCW, and Bi-rotational pumps available
• SAE shafts, flanges and porting available
Specifications
| Manufacturer | Parker |
| Model | PGG Series |
| Condition | New |
| Operating Pressure | up to 2000 psi, up to 138 bar |
| Flow Rate | up to 3 gal/min |
| Displacement | up to 11.47 cm3/rev, up to 0.7 inch3/rev |
| Body Material | Aluminum |
| Drain Option | No |
| Charge Pump Included | No |
| Circuit Path | Open |
| Configuration | Single |
| Control Method | Relief |
| Energy Recovery Capability | No |
| Filter Included | No |
| For Fluid Type | Standard Hydraulic Fluids, Phosphate-ester, Water-Glycol |
| Maximum Displacement | 11.47 cm3/rev, 0.7 inch3/rev |
| Maximum Flow Rate | 3 gal/min |
| Maximum Fluid Temperature | 80 °C, 176 °F |
| Minimum Fluid Temperature | -15 °C, 5 °F |
| Maximum Operating Pressure | 138 bar, 2000 psi |
| Radial Load Capacity | Consult Parker, Consult Parker |
| Maximum Operating Speed | 3000 RPM |
| Maximum Kinematic Viscosity | 7500 SUS |
| Minimum Kinematic Viscosity | 50 SUS |
| Weight | 1.59 kg (Max), 3.5 lb (Max) |
| Media | Liquid, Liquids |
| Mounting Option | SAE, ISO |
| Port Connection | SAE, NPT |
| Port Type | Straight Threaded |
| Port Location | Side Ports, Rear Ports |
| Pump Type | Gear, Fixed |
| Direction of Rotation | Clockwise, Counterclockwise |
| Shaft Type | SAE, ISO |
| Thru-Drive Capability | No |
