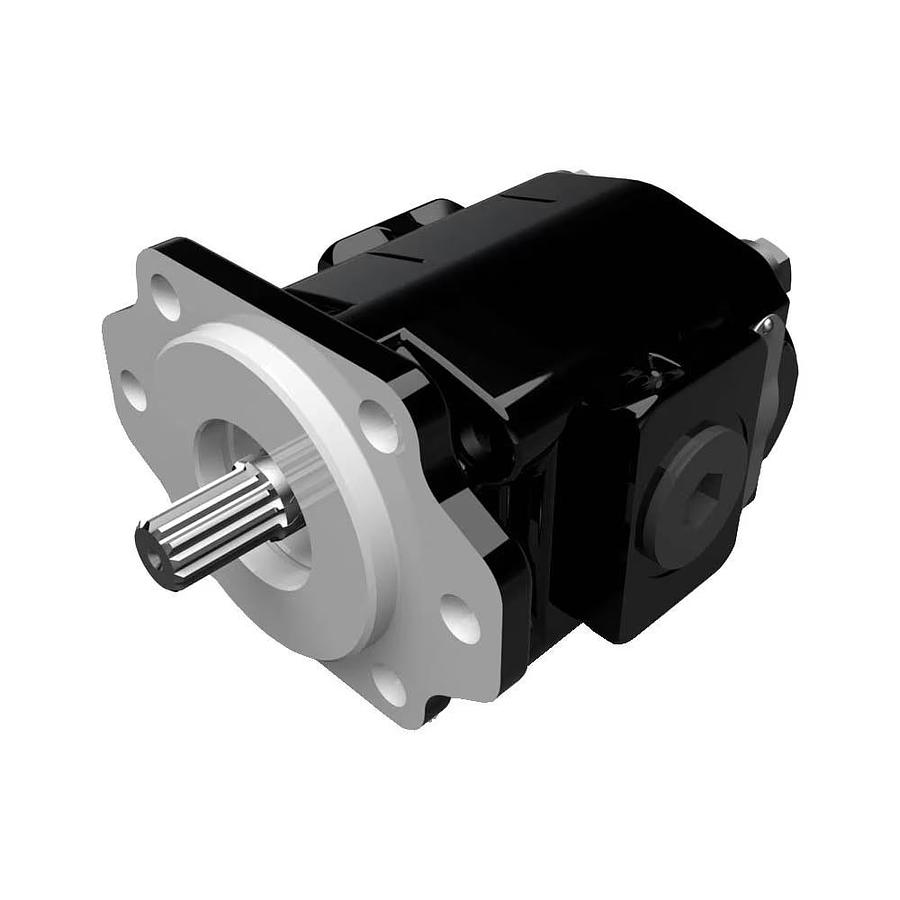

Cast Iron Pumps – PG020 Series

Parker’s 020 series fixed/positive displacement commercial gear pumps offer high performance, durability & resistance to oil contamination due to their cast iron, roller bearing construction, making them an ideal selection for the Vocational Truck, Winch, and Oil & Gas markets. They are available as single or multi-section pumps.

Markets:
• Aerial
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Turf Equipment
• Vocational & Municipal Equipment
• Mining
• Oil & Gas

Features/Benefits:
• Three-piece cast iron construction for distribution flexibility
• Durable high-strength cast iron body for excellent power-to-weight ratio
• Cast Iron construction for durability
• Balanced Thrust Plates minimize friction and leakage
• Roller bearings for durability
• Multiple sections available

Applications:
• Bulk Feed
• Salt and sand spreaders
• Aerial Lift
• Wrecker

Technical Specifications:
• Flow range to 38.4 gpm (145.4 lpm) per section
• Displacements from .985 to 3.94 cir (16.2 to 64.6 cc/rev)
• Operating pressures up to 200 bar (3,000 psi)
• Speeds up to 2,400 rpm
• Volumetric efficiencies up to 95%
• CW, CCW, and Bi-rotational pumps available
• SAE and SI shafts, flanges and porting available
• Multiple section
• Extensive integrated valve capabilities
 - Load sense flow control
    - Relief with anti-cavitation check
    - Priority flow control
    - Solenoid unloaded relief valve
    - Accumulator charge (single and dual)
    - Check valve with restrictor
