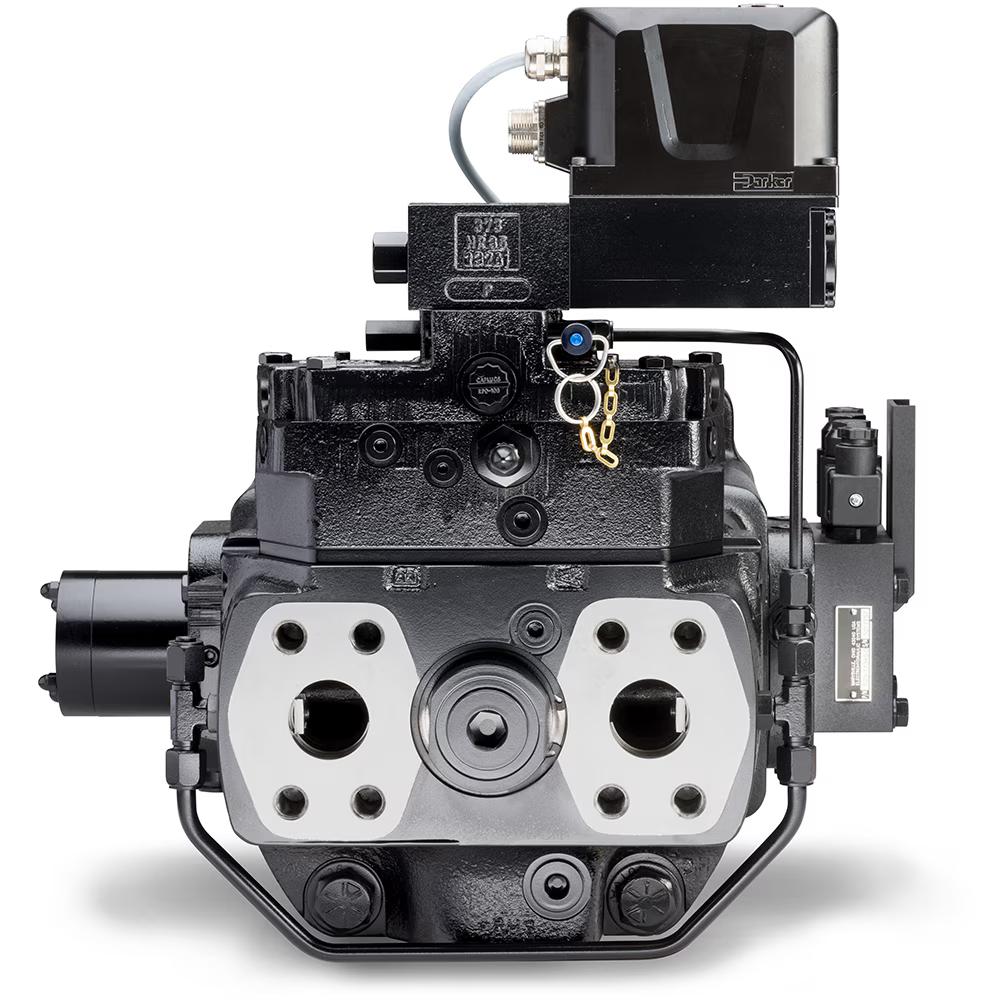

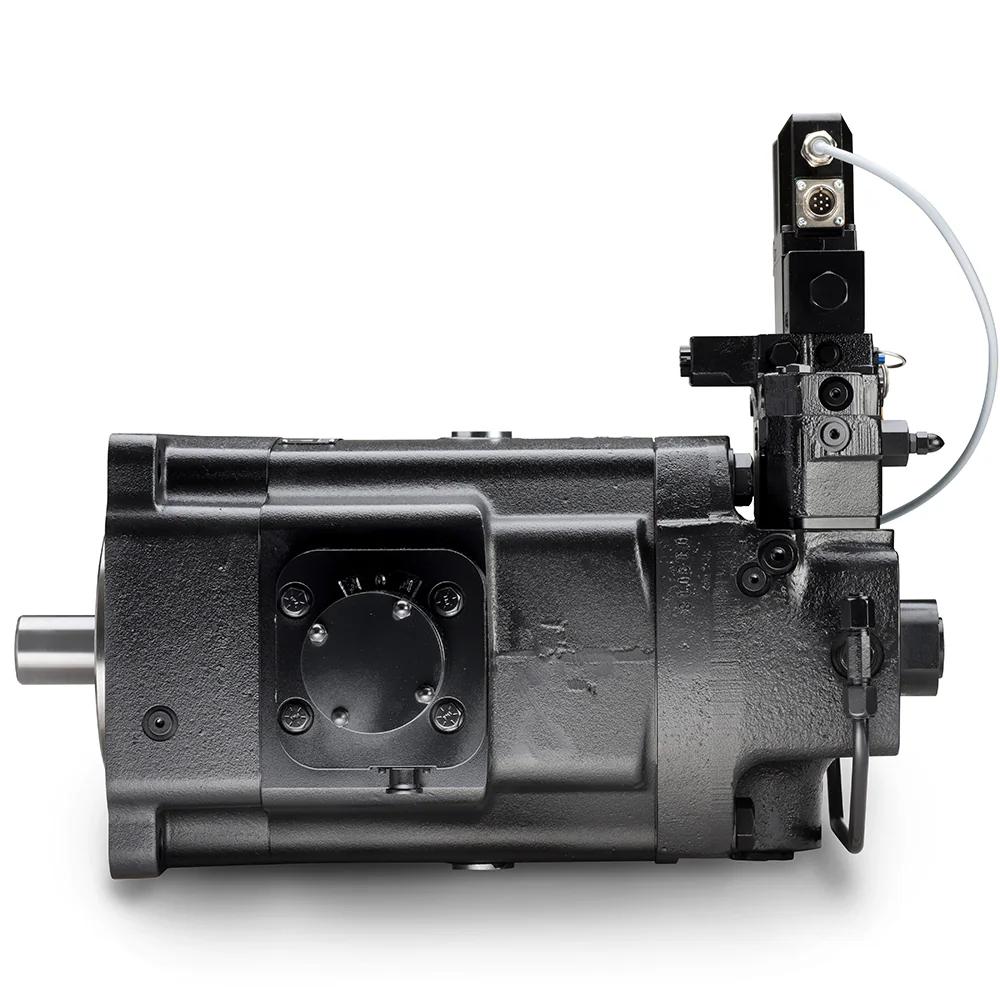

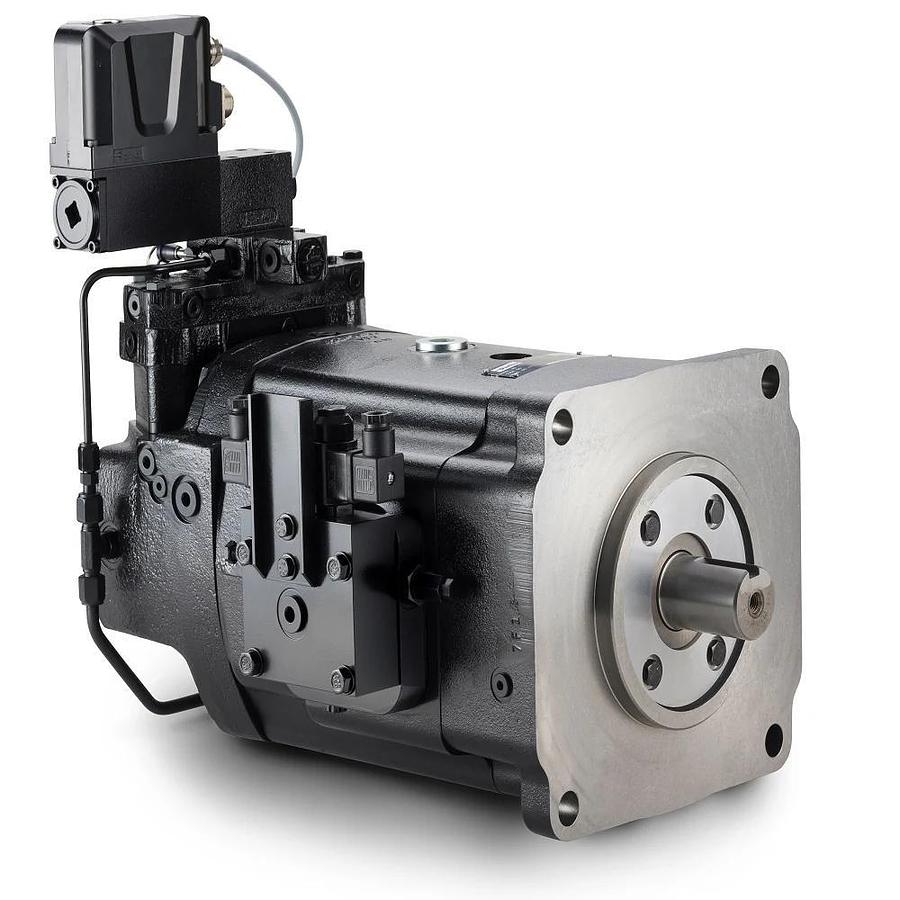

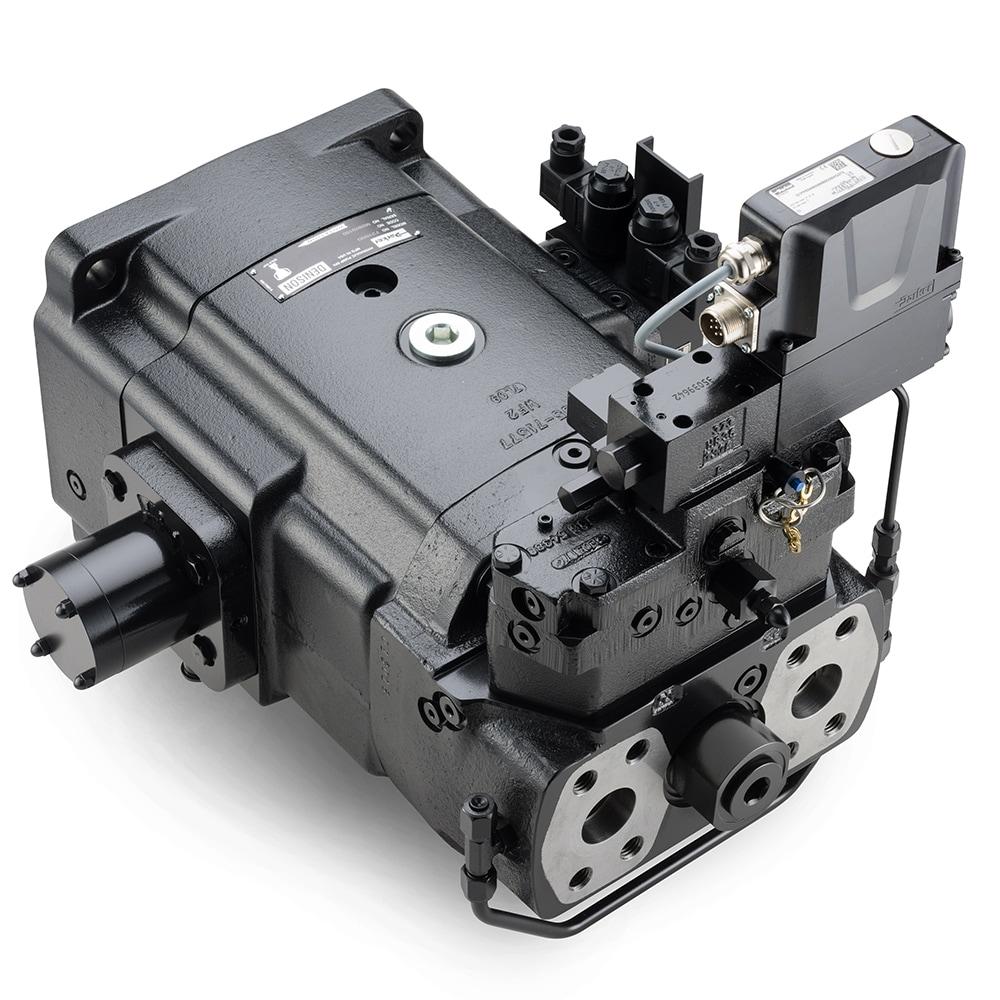

Hydrostatic Pumps & Motors for Open and Closed Circuits - Gold Cup Series

Rugged and efficient, The GOLD CUP® series boosts productivity with hydrostatic piston pumps and motors that deliver exceptional performance in the most severe applications. Featuring a robust barrel bearing design and hydraulically controlled rocker cam, GOLD CUP® pumps and motors provide proven durability and reliable pressure control.

A closed circuit design makes GOLD CUP® series pumps and motors ideal for bi-directional function and eliminates energy losses associated with circuit valving. GOLD CUP®'s high power-to-weight ratio, compact package, and flexibility in control options and mounting locations offer significant value-added benefits. These include lower operating costs, ease of installation, and improved longevity for reduced downtime.

The heavy-duty GOLD CUP® series of pumps and motors represent Parker and Denison combined expertise in hydrostatic transmission applications in marine, drilling, and shredding applications, among others. The tried and true design of the GOLD CUP® product line incorporates features such as integral servo and replenishing pump, hot oil shuttle, and a unique servo control system; all of which combine to provide a rugged self-contained package which can withstand the harshest of conditions and continue to perform with trouble free long life.

Markets:
• Mining
• Oil & Gas
• Marine
• Energy
• Government
• Industrial
• Factory Automation
• Other Natural Resources
• Rubber and Tire Processing
• Lumber & Wood
• Rail

Features and Benefits:
• Increased efficiency
• High-speed operation with reduced power
• Auto-regulated control pressure based on system demand
• Efficient built-in replenish ring-style check valves
• Improved reliability and Lifespan
• Lifetime hydro-mechanical controls
• Robust barrel-bearing design
• Stable system flow with low resistance cam design
• Proven productivity
• Visual displacement indicator and simple diagnostic capabilities for rapid commissioning
• Efficient and robust control logic
• No need for cross port reliefs
• Design flexibility
• Controls that mount on either side
• Simplified plumbing with built-on hot oil shuttle
• Compact package with integrated auxiliary pumps
• Capability for individual remote pressure compensators
• Ease of use
• Quick-change valve block
• Modular controls
• Replacement shaft sleeve

Applications:
• Mining
• Drilling
• Construction
• Material handling
• Logging
• Land & sea
• Military
• Shredding/reducing
• Gas turbine
• Cranes & winches
• Water jet cutting
• Energy recovery

Technical Characteristics:
• Maximum operating pressure of 420 bar (6,000 psi)
• Maximum speed of 3,600 rpm
• Temperature range of -40 to 203ºF (-40 to 95ºC)
• Sizes from 6-30 cipr (100-500 cc)
