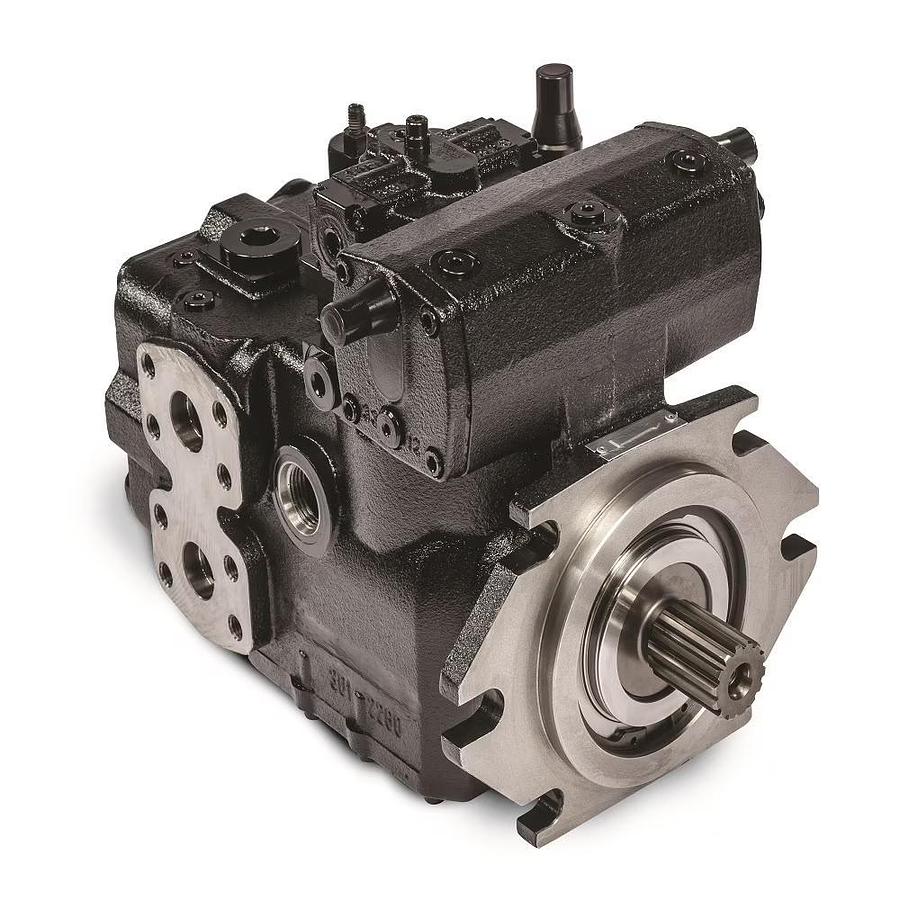

Variable Displacement Axial Piston Pump For Closed Circuit Applications - C Series

Designed for closed-circuit applications, C Series Variable Displacement Axial Piston Pumps boost reliability and uptime. They feature a rugged design, wide range of controls and proven protection from pressure overloads for increased performance, all while maintaining a small footprint for added flexibility. The C Series adds further versatility with multiple displacement options and the ability to perform with a variety of control options.



Markets:

• Energy

• Agriculture Machinery

• Construction Equipment

• Forestry Equipment

• Material Handling Equipment

• Other Mobile

• Turf Equipment

• Vocational & Municipal Equipment

• Natural Resources

• Processing



Features/Benefits:

• Increased Reliability

• Two cross-port relief valves for pressure overload protection

• Durable swash plate and bearing design

• Hydraulic pressure compensator

• Flushing valves and clogging sensors

• Design Flexibility

• Compact, modular design

• Full range of controls

• Multiple displacement options



Controls:

• Manual lever with feedback (with or without neutral position switch)

• Hydraulic proportional with or without feedback

• Electric proportional with or without feedback

• Electric on-off

• Electric proportional with hydraulic override

• Automotive



Applications:

• Harvesters

• Feeder mixers

• Drill rigs

• Tunneling equipment

• Shuttle cars

• Trenchers

• Pavers

• Vacuum trucks

• Deck cranes

• Winches

• Feller bunchers

• Skidders

• Telehandlers



Technical Characteristics:

• Maximum operating pressure of 420 bar (6,090 psi)

• Maximum speed of 3,400 rpm

• Three displacements: 55, 81 and 136 cc/rev

• Temperature range of -13 to 194ºF (-25 to 90ºC)
