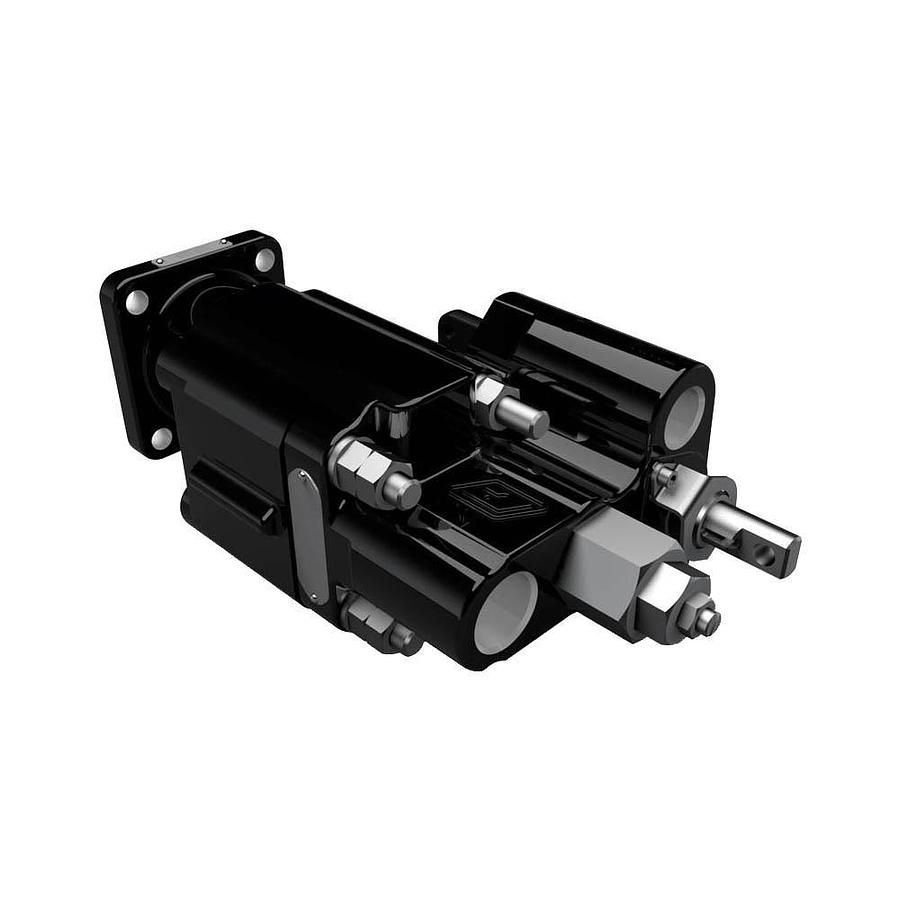

Cast Iron Pumps – C101/C102 Series
Description
Parker’s C101/C102 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction, making it an ideal selection for the Vocational & Municipal Equipment market. It is available as a standard pump with integrated valve for raising and lower dump beds, with integral relief valve.
Markets:
• Vocational & Municipal Equipment
Features/Benefits:
• Three-piece cast iron construction for distribution flexibility
• Durable high-strength cast iron body for excellent power to weight ratio
• Cast Iron construction for durability
• Balanced Thrust Plates minimize friction and leakage
• Roller bearings for durability
Applications:
• Dump Truck
• Dump Trailer
Technical Specifications:
• Flow is 27.7 gpm (104.9 lpm)
• Displacement is 6.4 cir (104.9cc/rev)
• Operating pressures up to 172 bar (2,500 psi)
• Speeds up to 2,400 rpm
• Volumetric efficiencies up to 94%
• CW, CCW, and Bi-rotational pumps available
• SAE shafts, flanges and porting
• Integrated relief valve and load hold valve
• Integrated raise/neutral/lower valve
• Air shift valve available
Markets:
• Vocational & Municipal Equipment
Features/Benefits:
• Three-piece cast iron construction for distribution flexibility
• Durable high-strength cast iron body for excellent power to weight ratio
• Cast Iron construction for durability
• Balanced Thrust Plates minimize friction and leakage
• Roller bearings for durability
Applications:
• Dump Truck
• Dump Trailer
Technical Specifications:
• Flow is 27.7 gpm (104.9 lpm)
• Displacement is 6.4 cir (104.9cc/rev)
• Operating pressures up to 172 bar (2,500 psi)
• Speeds up to 2,400 rpm
• Volumetric efficiencies up to 94%
• CW, CCW, and Bi-rotational pumps available
• SAE shafts, flanges and porting
• Integrated relief valve and load hold valve
• Integrated raise/neutral/lower valve
• Air shift valve available
Specifications
| Manufacturer | Parker |
| Model | C101/C102 Series |
| Condition | New |
| Operating Pressure | up to 2500 psi, up to 172 bar |
| Flow Rate | n/a |
| Displacement | up to 105 cm3/rev, up to 6.4 inch3/rev |
| Body Material | Cast Iron |
| Drain Option | No |
| Charge Pump Included | No |
| Circuit Path | Open |
| Configuration | Single |
| Control Method | n/a |
| Energy Recovery Capability | No |
| Filter Included | No |
| For Fluid Type | Standard Hydraulic Fluids, Phosphate-ester |
| Maximum Displacement | 105 cm3/rev, 6.4 inch3/rev |
| Maximum Flow Rate | n/a |
| Maximum Fluid Temperature | 80 °C, 180 °F |
| Minimum Fluid Temperature | -20 °C, 0 °F |
| Maximum Noise Level | n/a |
| Maximum Operating Pressure | 172 bar, 2500 psi |
| Radial Load Capacity | n/a |
| Maximum Operating Speed | 2400 RPM |
| Maximum Kinematic Viscosity | 7500 SUS |
| Minimum Kinematic Viscosity | 50 SUS |
| Weight | 32 kg (Max), 70 lb (Max) |
| Media | N/A, n/a |
| Mounting Option | SAE, DIN |
| Port Connection | NPT |
| Port Type | Tapered Thread |
| Port Location | Rear Ports |
| Pump Type | Gear, Fixed |
| Direction of Rotation | Clockwise, Counterclockwise, Bi-Rotational |
| Sensor Type | n/a |
| Shaft Type | SAE |
| Thru-Drive Capability | No |
